Turbocharger Heat Shield Replacement

WARNING: This page is about a different variant/trim than selected.

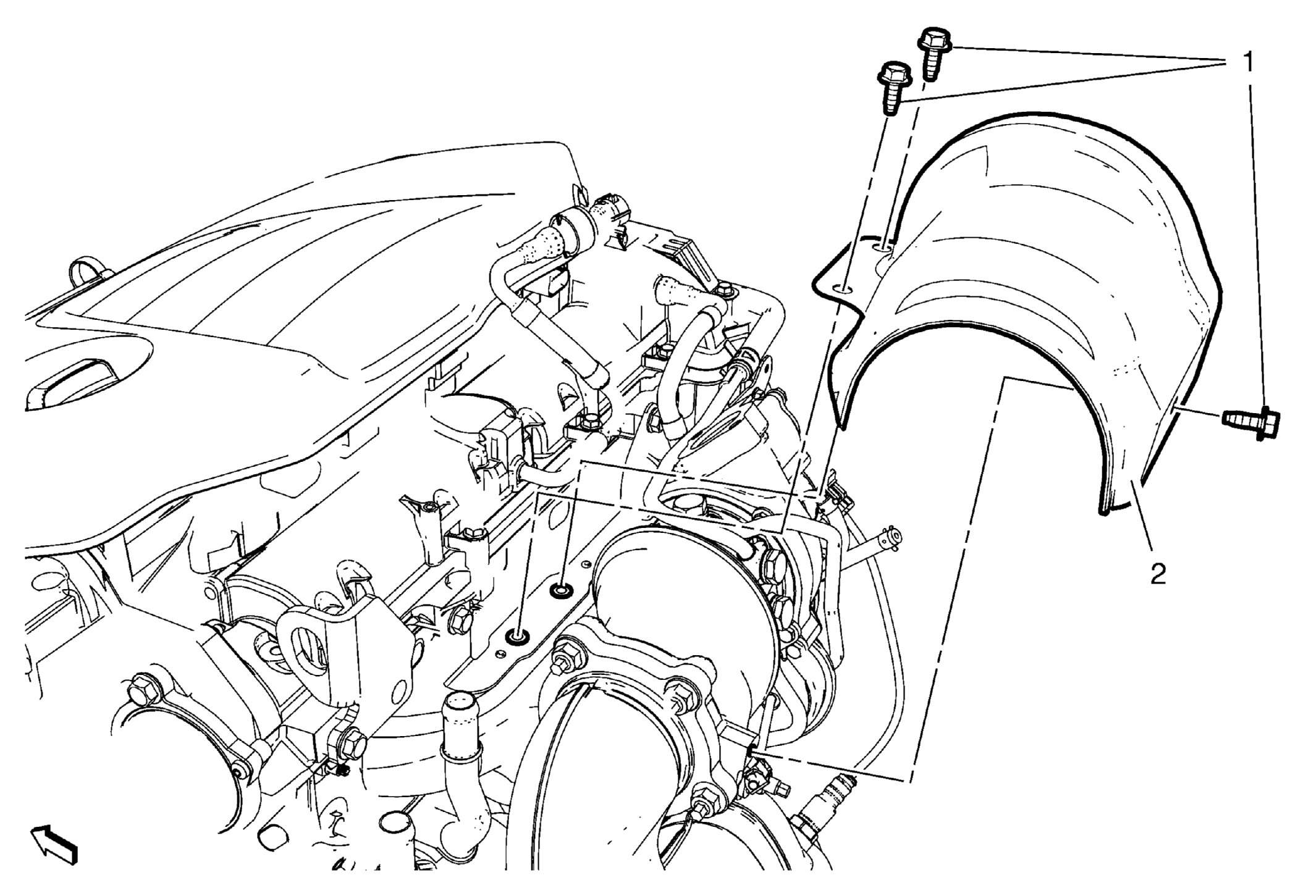

Fig 1: Turbocharger Heat Shield
GM2699382Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
  2. Remove the dash upper extension panel. Refer to Dash Upper Extension Panel Opening Cover Replacement .
  3. Remove the charge air cooler inlet pipe - turbocharger side. Refer to Charge Air Cooler Inlet Hose Replacement (Charge Air Cooler)Charge Air Cooler Inlet Hose Replacement (Turbocharger) .
1 Turbocharger Heat Shield Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Turbocharger Heat Shield
