Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Positive Crankcase Ventilation Hose/Pipe/Tube, Seal Ring & Mounting Components
    GM2743381Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW positive crankcase ventilation hose seal ring (1).
  2. Install the positive crankcase ventilation hose (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the positive crankcase ventilation hose bolt (3) and tighten to 10 N.m (89 lb in).

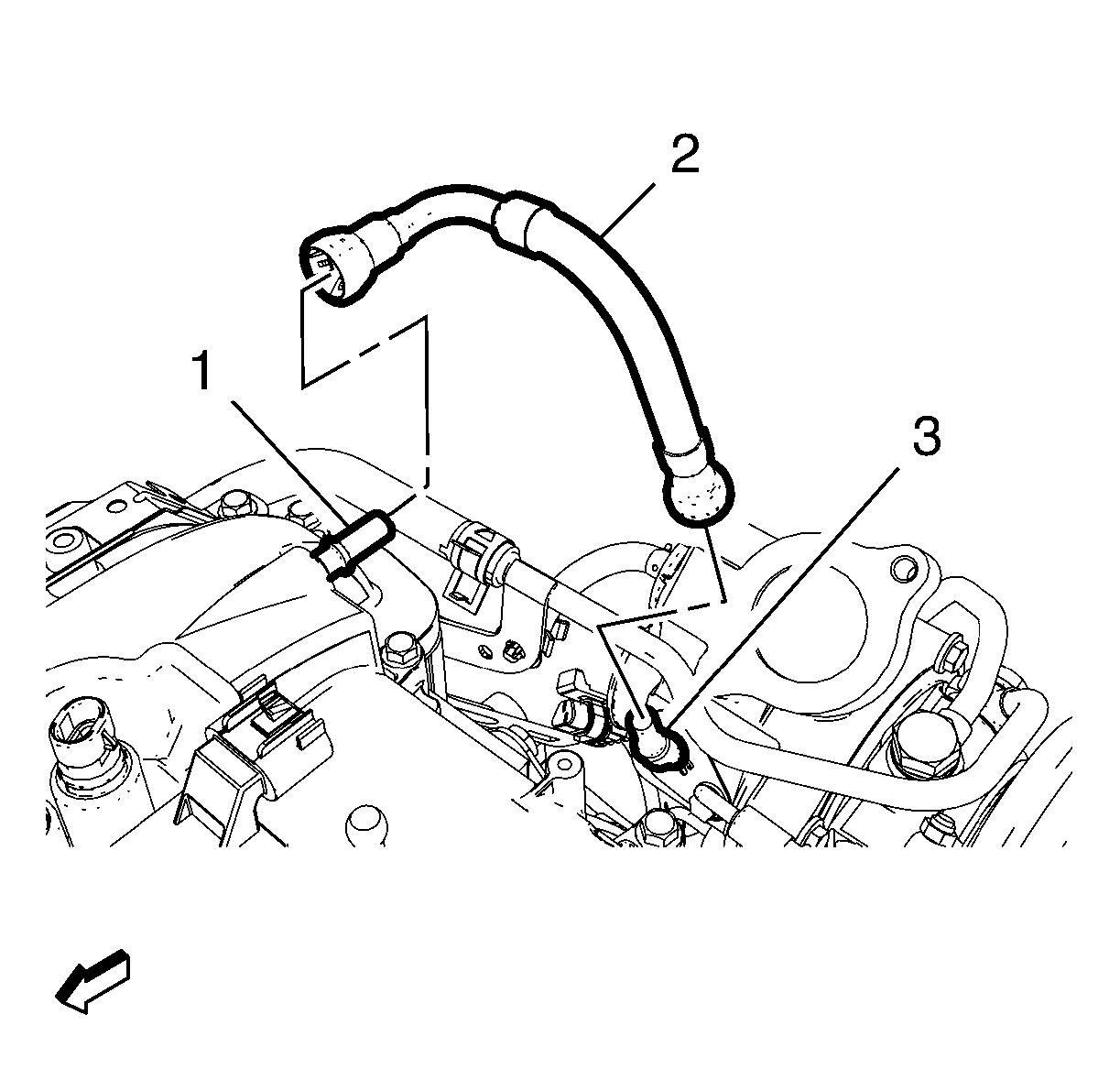

    4. Fig 2: Camshaft Cover Stud, PCV Hose & Stud
    GM2743387Courtesy of GENERAL MOTORS COMPANY
  4. Install the positive crankcase ventilation hose (2) to the positive crankcase ventilation stud (3) and the camshaft cover stud (1). Refer to Metal Collar Quick Connect Fitting Service .
