Oil Pressure Relief Valve Replacement

WARNING: This page is about a different variant/trim than selected.

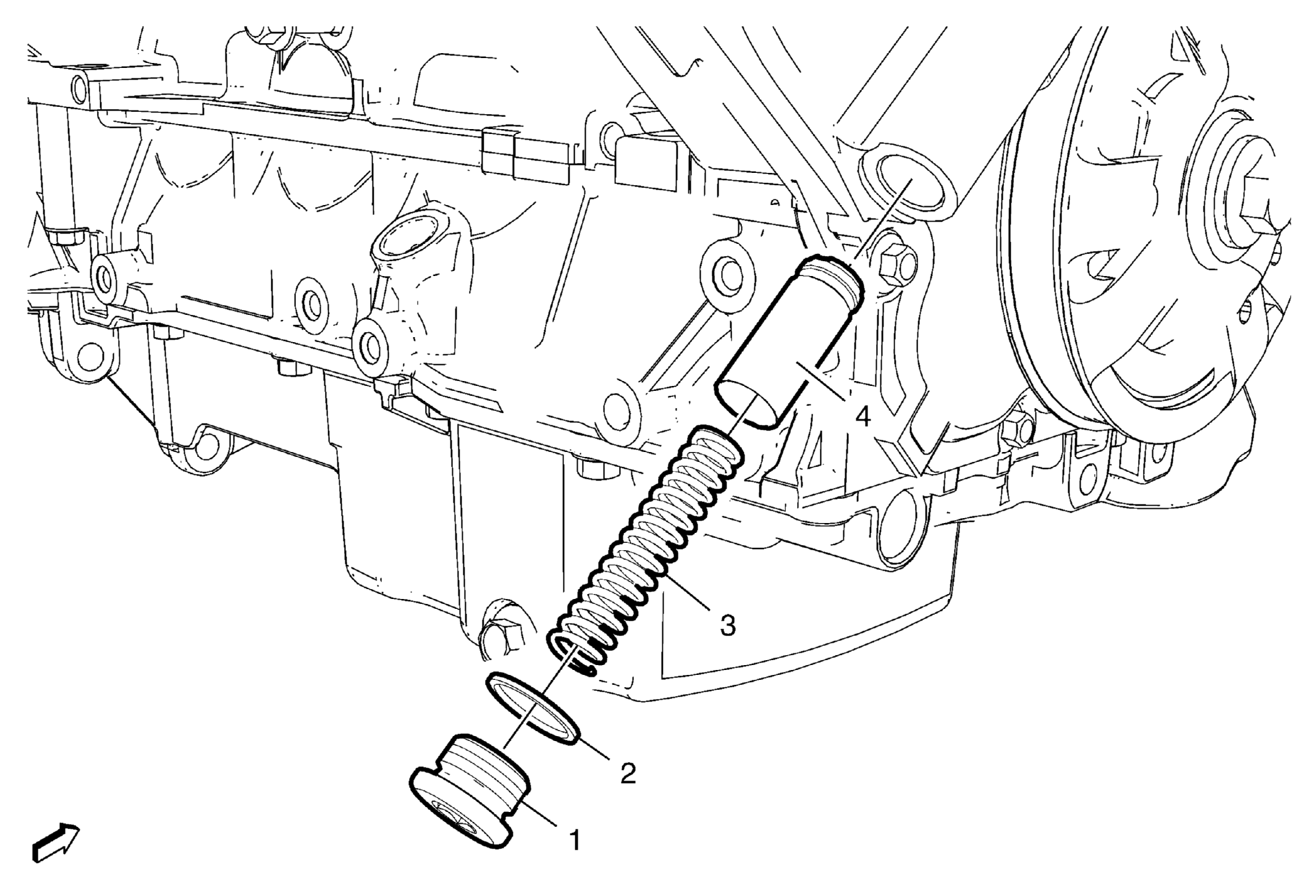

Fig 1: Oil Pressure Relief Valve
GM2595033Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front wheelhouse liner right side. Refer to Front Wheelhouse Liner Replacement .
  2. Remove the engine splash shield right side. Refer to Front Compartment Splash Shield Replacement .
  3. Remove the right wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side .
1 Oil Pressure Relief Valve Seal Plug
CAUTION:

Refer to Fastener Caution .


Tighten
40 N.m (30 lb ft)
2 Oil Pressure Relief Valve Seal Ring
Procedure
Use a NEW oil pressure relief valve seal ring.
3 Oil Pressure Relief Valve Seal Spring
4 Oil Pressure Relief Valve
