Removal Procedure

WARNING: This page is about a different variant/trim than selected.

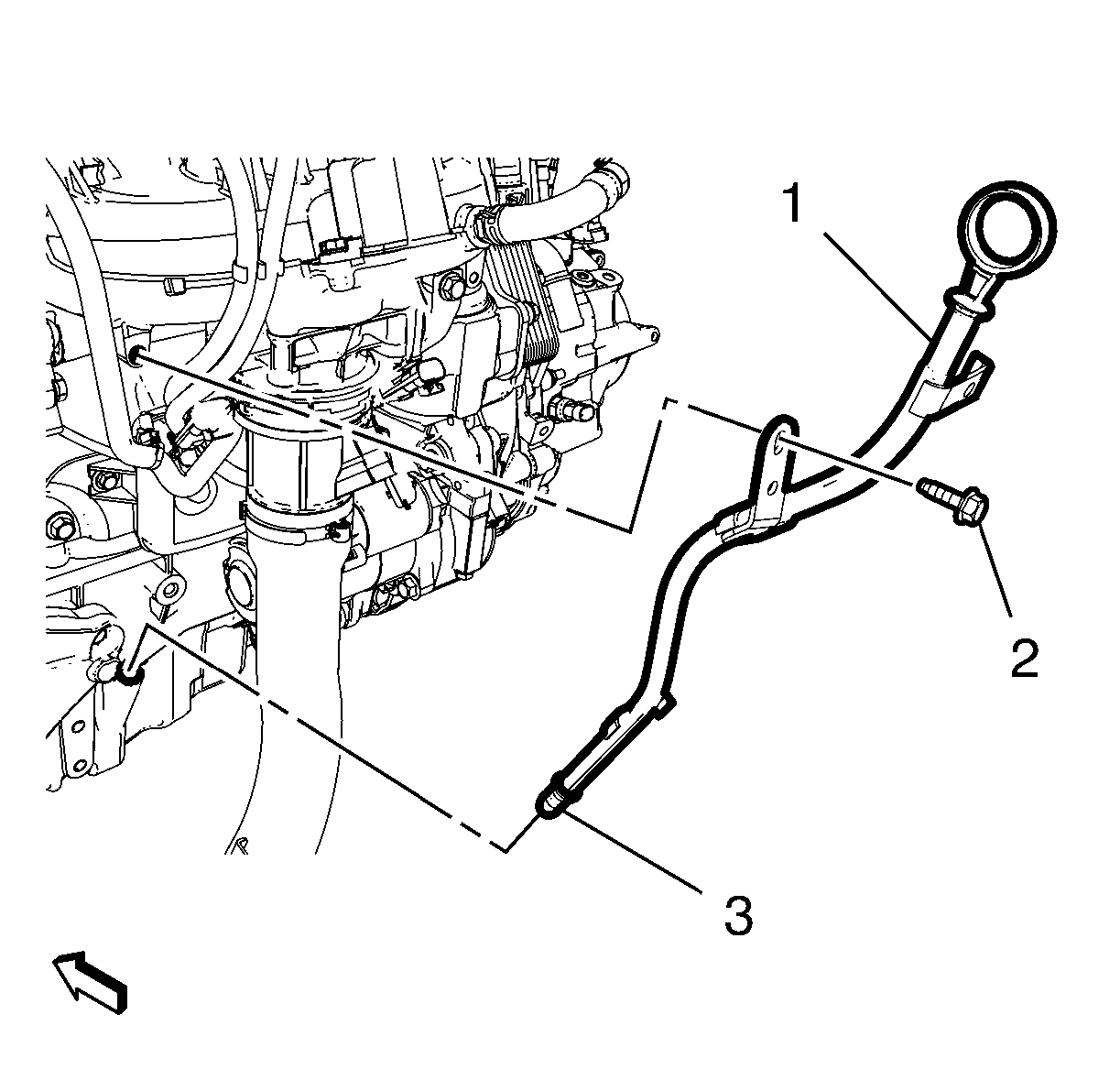

    Fig 1: Oil Level Indicator Tube, Seal Ring & Bracket Bolt
    GM2864433Courtesy of GENERAL MOTORS COMPANY
  1. Remove the oil level indicator tube bracket bolt (2).
  2. Unclip the ECM wiring harness, the generator wiring harness and the vacuum tank hose from the oil level indicator tube brackets.
  3. Remove the oil level indicator tube (1) from the oil pan.
  4. Remove and DISCARD the oil level indicator tube seal ring (3).
