Installation Procedure

WARNING: This page is about a different variant/trim than selected.

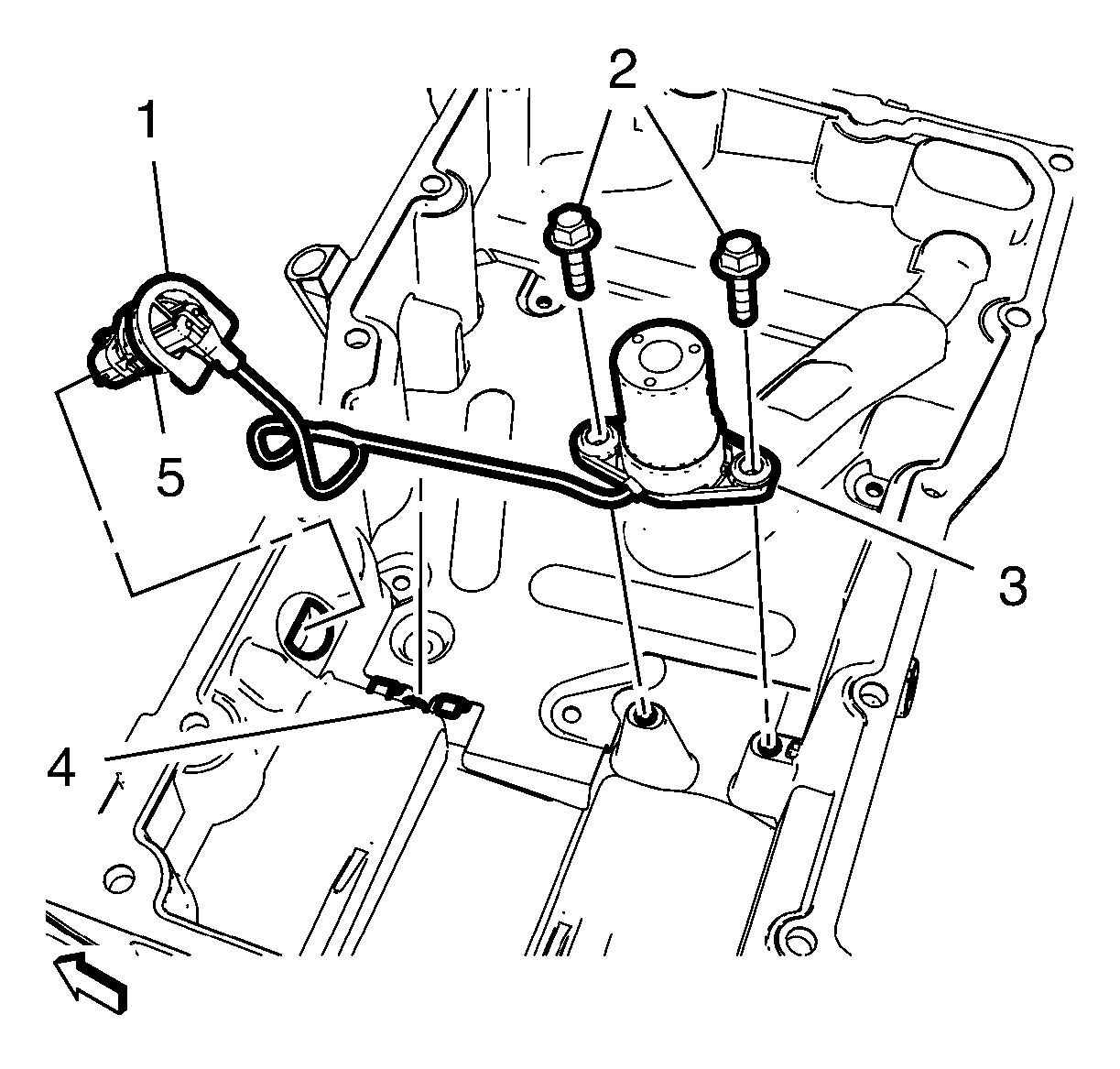

    Fig 1: Oil Level Sensor & Mounting Components
    GM2665839Courtesy of GENERAL MOTORS COMPANY
  1. Install the oil level sensor (3).
  2. Install the oil level sensor wiring harness to the lashes in the oil pan (4)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the 2 oil level sensor bolts (2) and tighten to 10 N.m (89 lb in).
  4. Install the oil level sensor wiring harness plug (1) to the oil pan. Install a NEW seal ring (5)

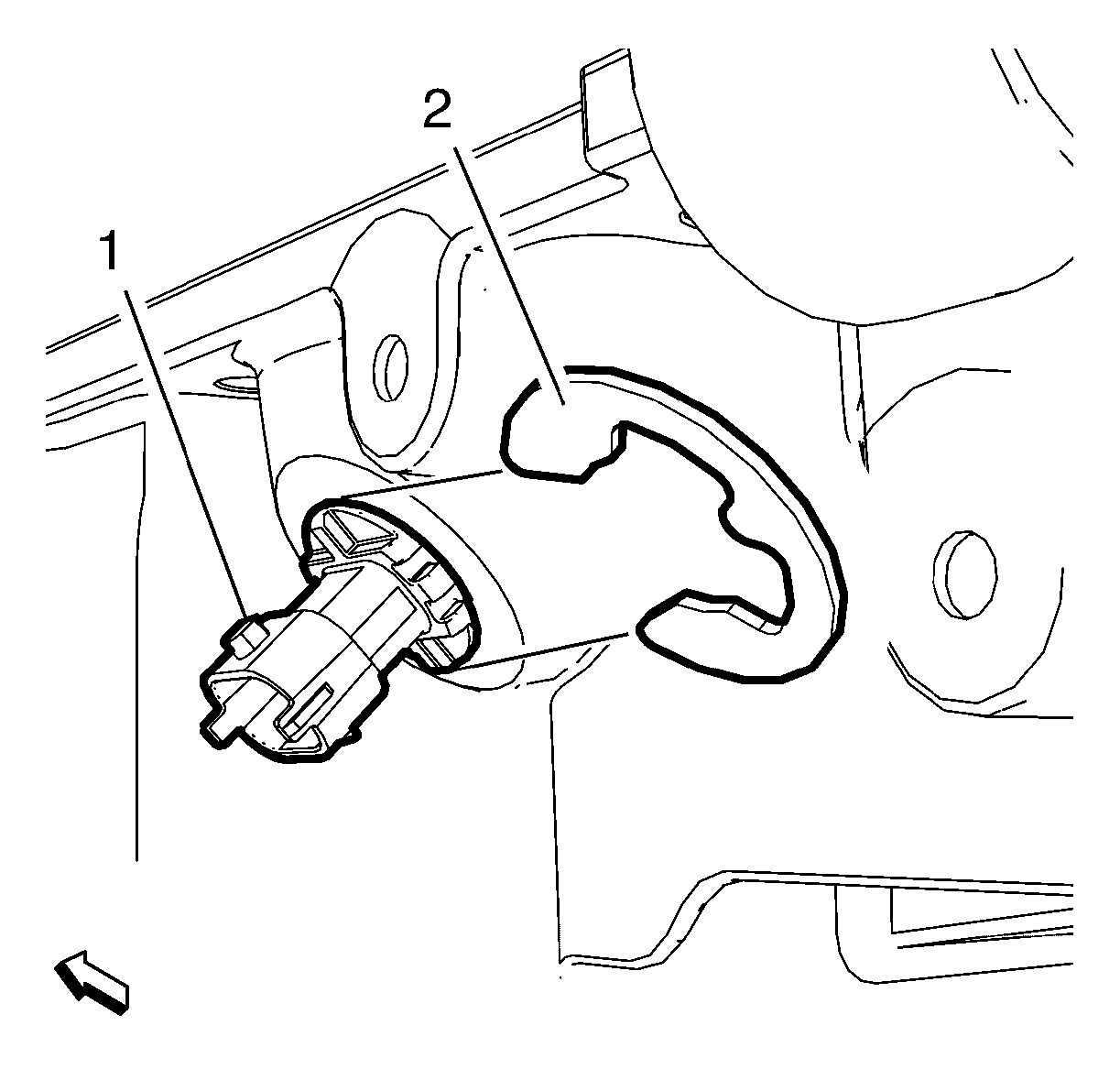

    5. Fig 2: Engine Oil Level Sensor Wiring Harness Plug & Clip
    GM2665838Courtesy of GENERAL MOTORS COMPANY
  5. Install the oil level sensor wiring harness plug clip.
  6. Install the oil pan. Refer to Oil Pan Replacement (Manual Transmission) Oil Pan Replacement (Automatic Transmission) .
