Engine Lift Rear Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

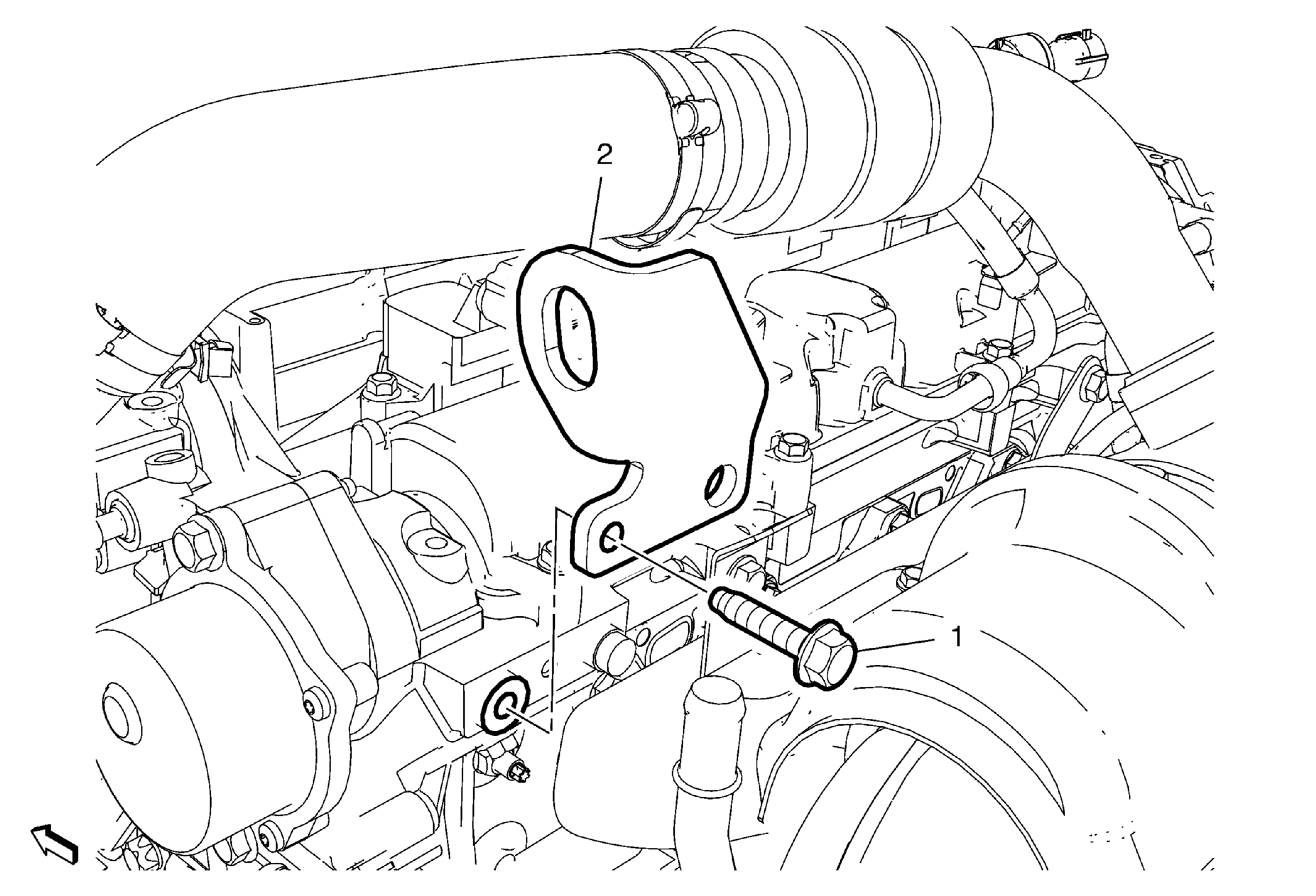

Fig 1: Engine Lift Rear Bracket
GM2743309Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine Lift Bracket Rear Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Engine Lift Bracket - Rear
