Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission. Refer to Transmission Replacement .
    2. Fig 1: Flywheel Holding Tool
    GM2512743Courtesy of GENERAL MOTORS COMPANY
  2. Install the EN-43653  holding tool (1) in the starter assembly location, engaging the flywheel, in order to prevent crankshaft rotation.

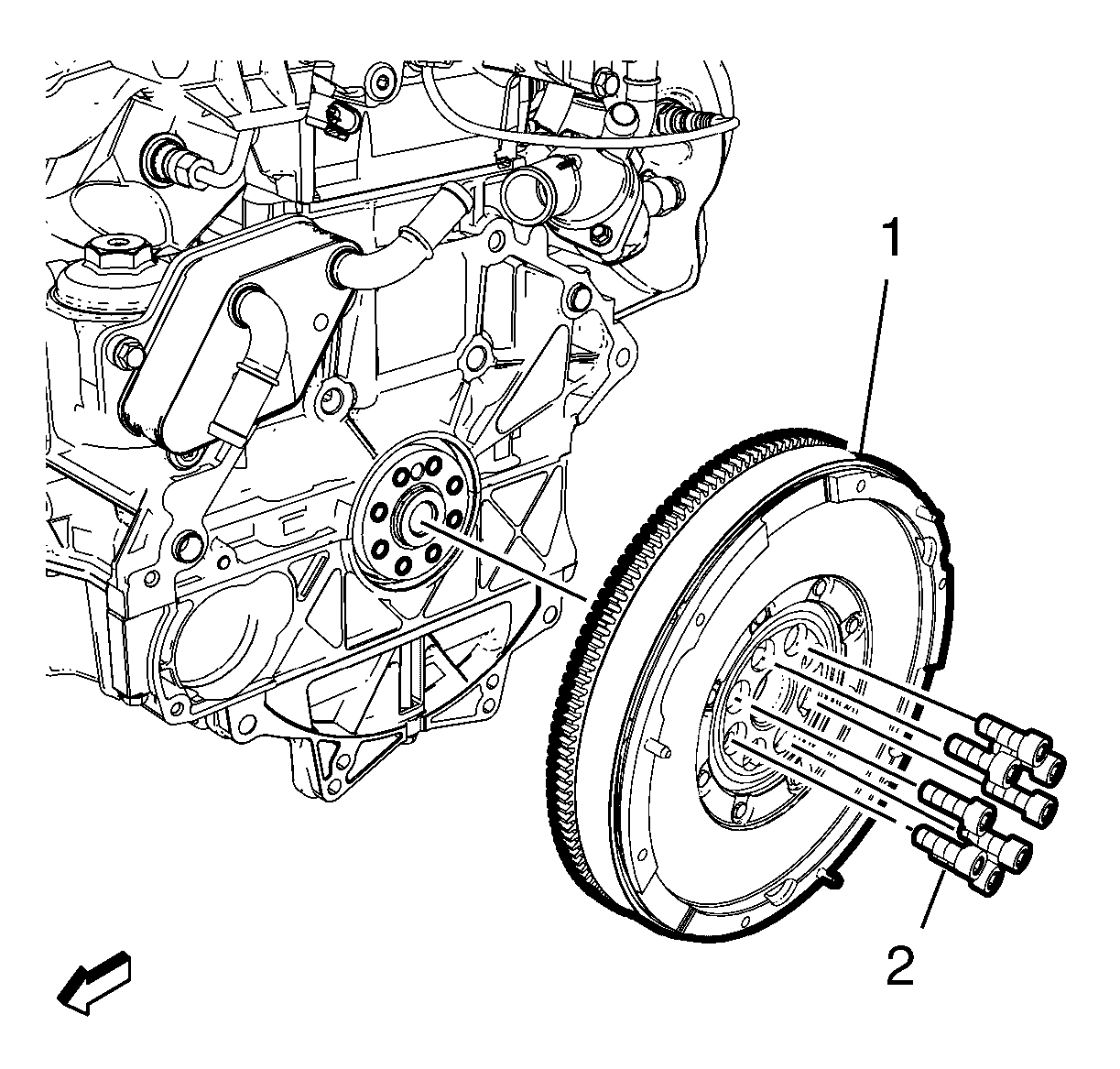

    3. Fig 2: Engine Flywheel & Bolts
    GM2699393Courtesy of GENERAL MOTORS COMPANY
  3. Remove and DISCARD the 8 engine flywheel bolts (2) and the engine flywheel (1).
