Installation Procedure

WARNING: This page is about a different variant/trim than selected.

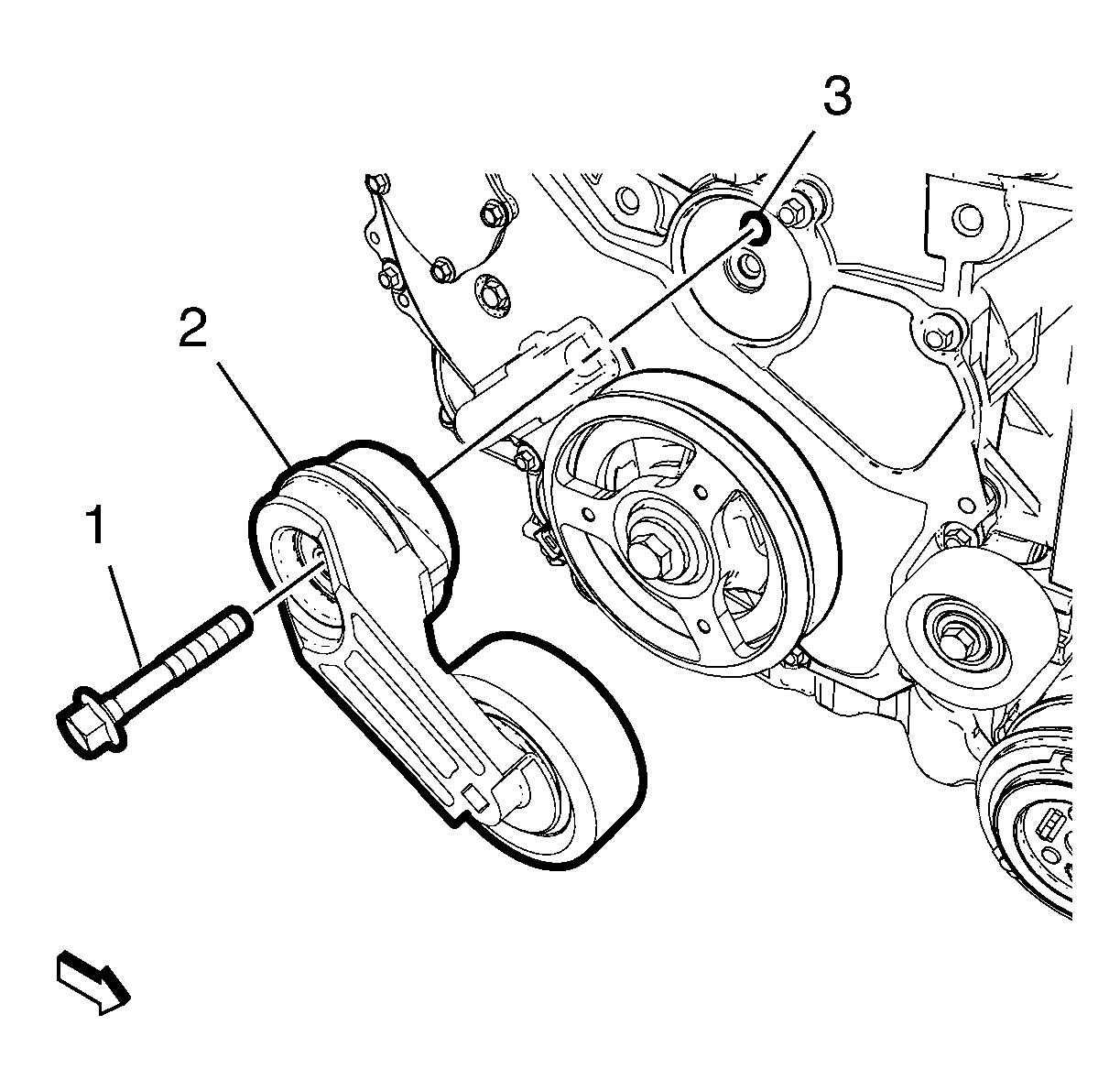

    Fig 1: Drive Belt Tensioner & Bolt
    GM2699437Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the drive belt tensioner notch fits into the engine front cover hole (3).

  1. Install the drive belt tensioner (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the drive belt tensioner bolt (1) and tighten to 45 N.m (33 lb ft).
  3. Install the drive belt. Refer to Drive Belt Replacement .
