Installation Procedure

WARNING: This page is about a different variant/trim than selected.

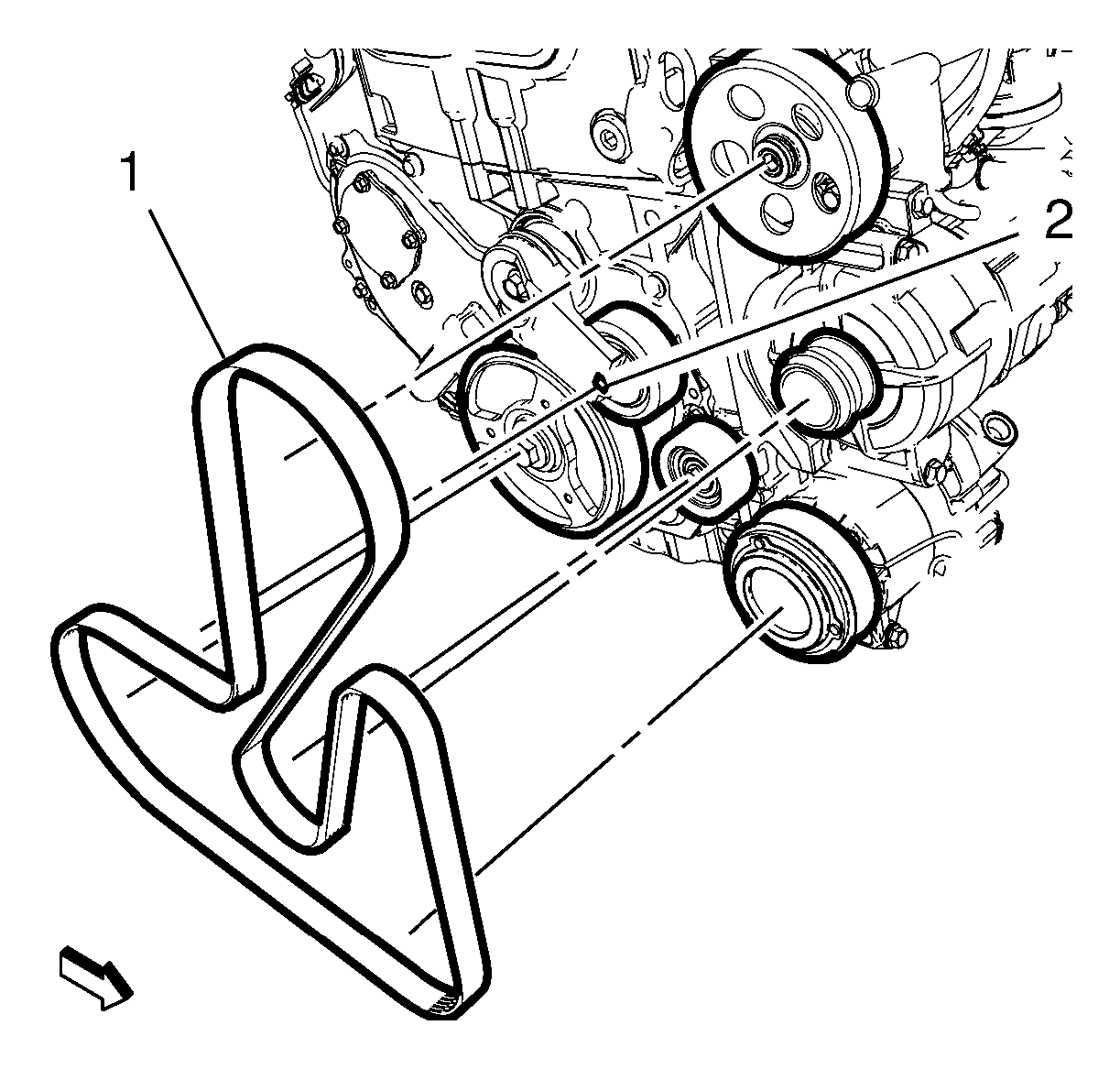

    Fig 1: Drive Belt Routing & Tensioner Hole
    GM2699392Courtesy of GENERAL MOTORS COMPANY
  1. Apply tension to the drive belt tensioner with the EN-6151-A  chuck key by rotating counterclockwise and hold tension.
  2. Install the drive belt (1).
  3. Release tension from the drive belt tensioner and allow the tensioner to slide back slowly.
  4. Remove the EN-6151-A  chuck key from the drive belt tensioner hole (2).
  5. Inspect the drive belt for proper seat.
  6. Install the front part of the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  7. Install the front compartment splash shield - right side. Refer to Front Compartment Splash Shield Replacement .
  8. Lower the vehicle.
