Belt Idler Pulley Replacement

WARNING: This page is about a different variant/trim than selected.

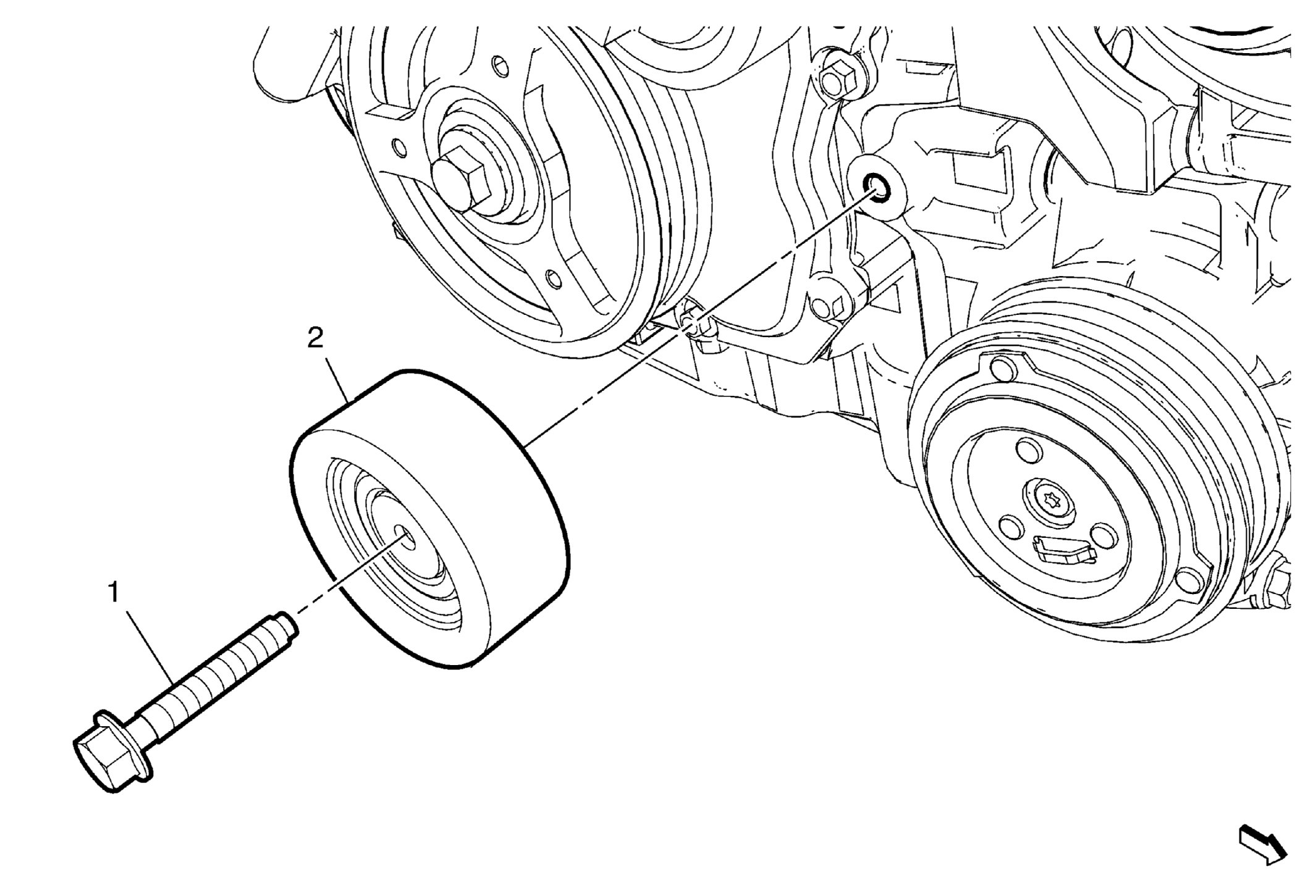

Fig 1: Belt Idler Pulley
GM2699438Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the drive belt. Refer to Drive Belt Replacement .
1 Belt Idler Pulley Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Belt Idler Pulley
