Balance Shaft Sprocket Replacement - Exhaust Side

WARNING: This page is about a different variant/trim than selected.

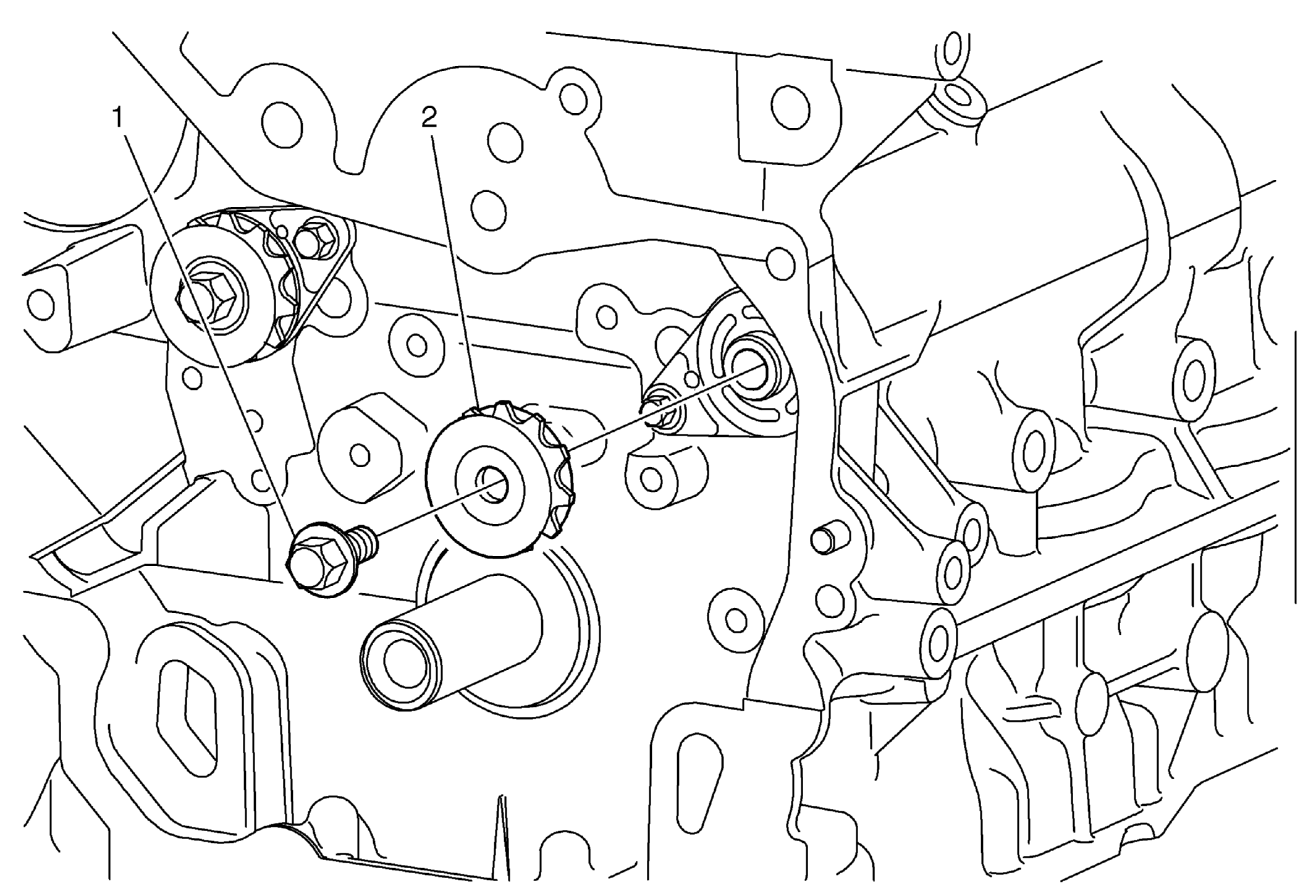

Fig 1: Balance Shaft Sprocket - Exhaust Side
GM2193908Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the water pump and balancer shaft chain. Refer to Water Pump and Balance Shaft Chain Replacement .
1 Balancer Shaft Sprocket Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
20 N.m (15 lb ft) + 35 degrees
2 Balancer Shaft Sprocket
