Water Pump Removal (LDK, LHU)

WARNING: This page is about a different variant/trim than selected.

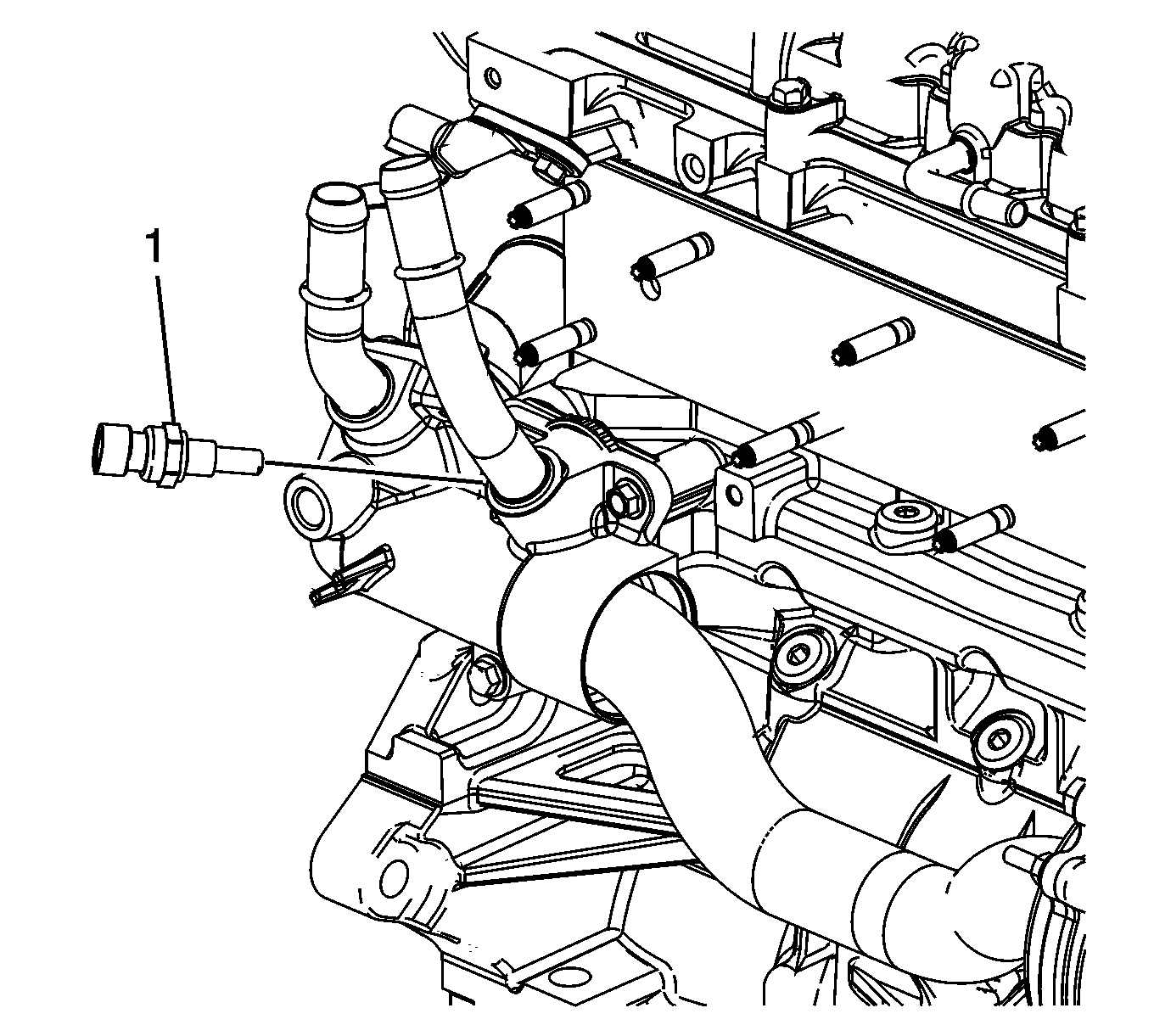

    Fig 1: Engine Coolant Temperature Sensor
    GM2146301Courtesy of GENERAL MOTORS COMPANY
  1. Remove the engine coolant temperature sensor (1).

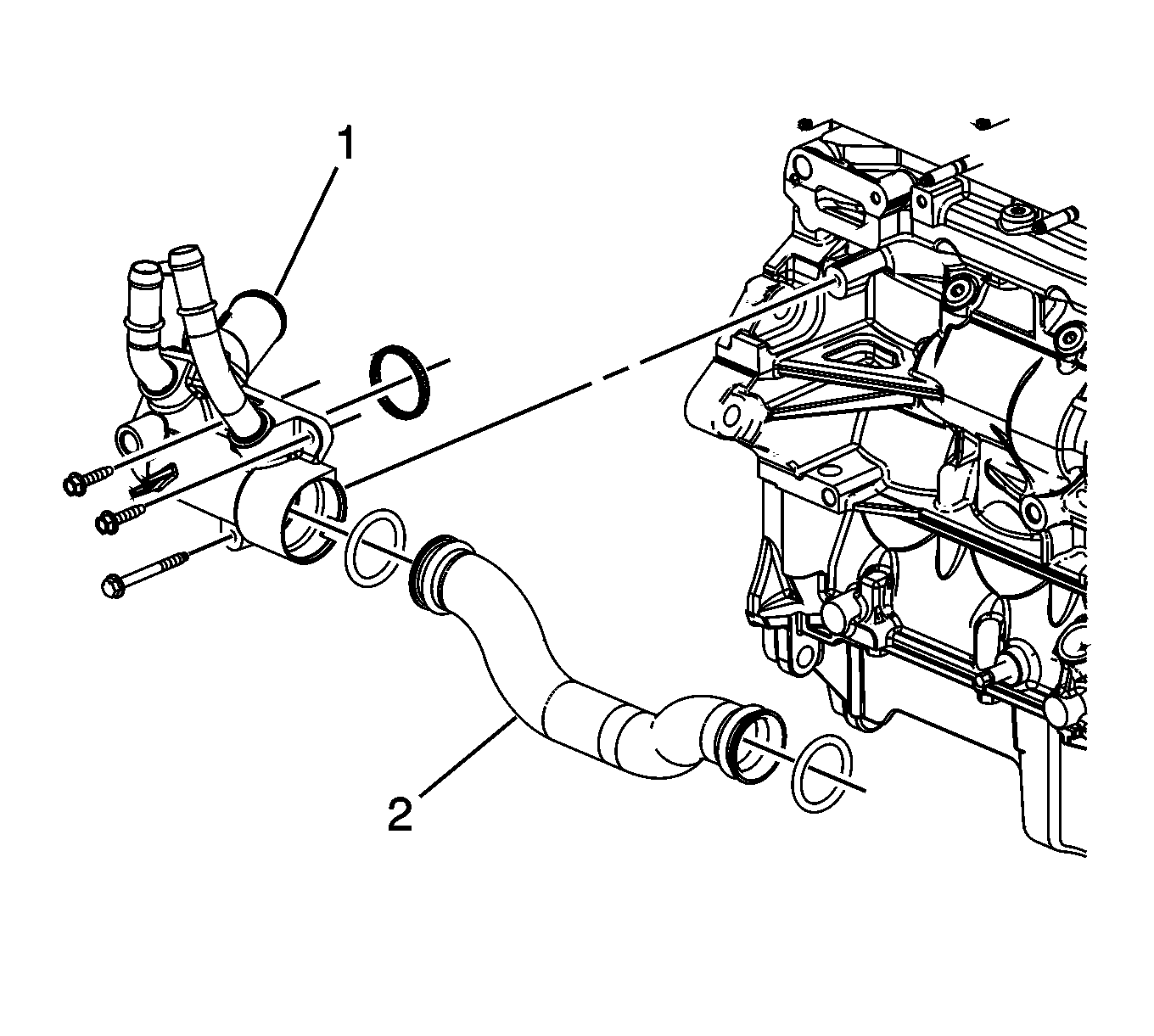

    2. Fig 2: Thermostat And Water Feed Pipe
    GM2146302Courtesy of GENERAL MOTORS COMPANY
  2. Remove the thermostat and water feed pipe retaining bolts.
    3. NOTE:

    Twist the water feed pipe while pulling to remove it from the water pump cover.

  3. Remove the thermostat housing (1) and water feed pipe (2) from the water pump cover.

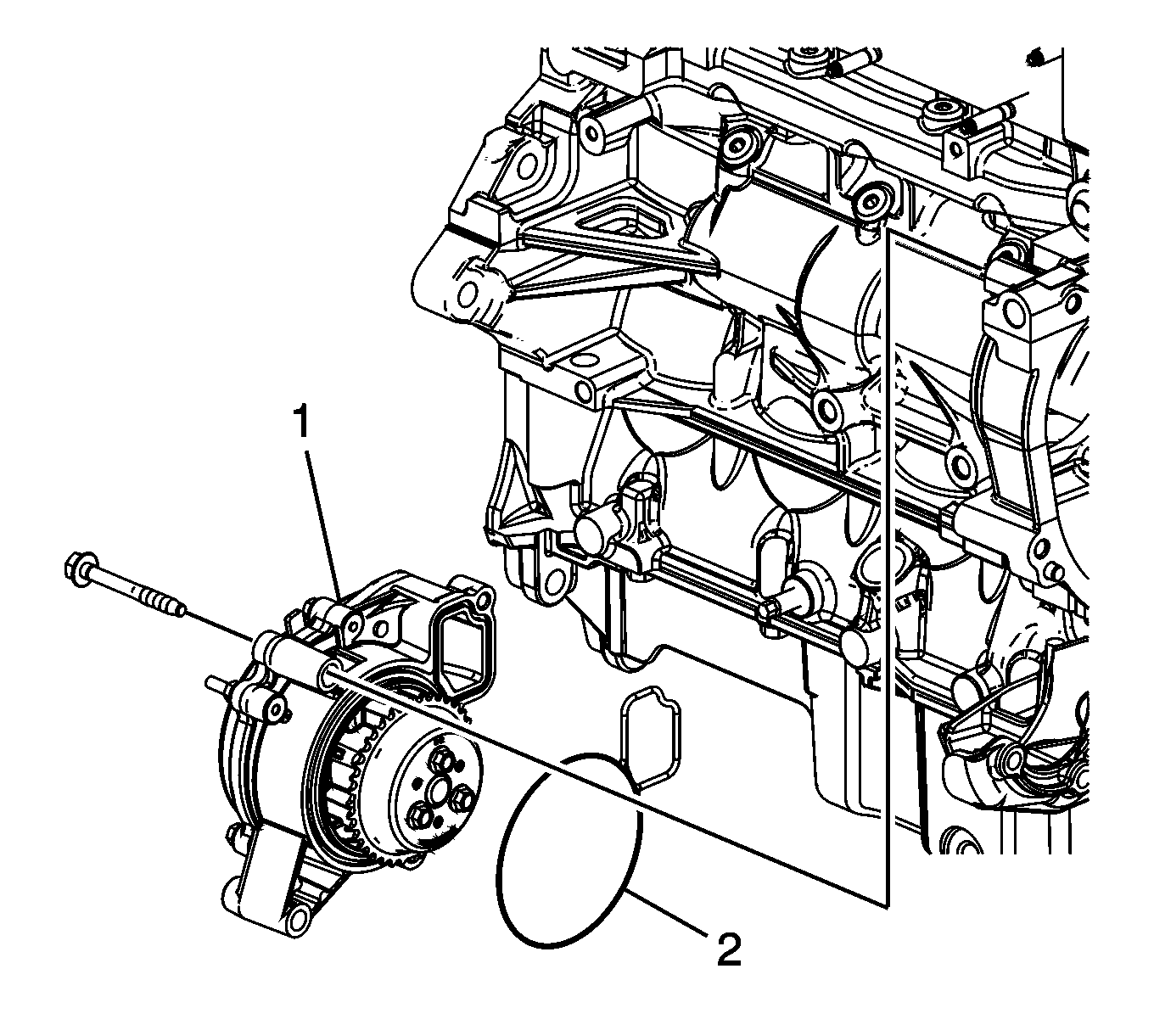

    4. Fig 3: Water Pump Assembly With Gasket
    GM2146303Courtesy of GENERAL MOTORS COMPANY
  4. Remove the water pump retaining bolts. Be sure to remove the bolt that goes through the front of the engine block.
  5. Remove the water pump assembly (1).
  6. Remove and discard the gasket (2).
    7. Fig 4: Water Pump Sprocket And Bolts
    GM3651576Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a suitable size hex key as shown to hold the sprocket.

  7. If necessary, remove the water pump sprocket (2) and bolts (1).
