Turbocharger Installation (LDK, LHU)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Turbocharger Oil Return Pipe
    GM1769646Courtesy of GENERAL MOTORS COMPANY
  1. Install a new turbocharger oil return pipe gasket (1).
  2. Install the turbocharger oil return pipe (2) on the turbocharger.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the turbocharger oil return pipe bolts (3) and tighten to 10 N.m (89 lb in).
    4. Fig 2: Turbocharger Assembly
    GM1769653Courtesy of GENERAL MOTORS COMPANY
  4. Attach the positive crankcase ventilation (PCV) hose and fitting with O-ring from the camshaft cover to the turbocharger.
  5. Install the PCV hose fitting bolt (4) and tighten to 10 N.m (89 lb in).
  6. Lubricate the O-ring on the turbocharger oil return pipe with clean engine oil.
  7. Install a new turbocharger gasket (3).
  8. Install the turbocharger (2) with the oil return pipe.
    9. CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

  9. Install NEW turbocharger nuts (5).
    1. Tighten the turbocharger nuts to 30 N.m (22 lb ft).
    2. Tighten the turbocharger nuts a second time to 35 N.m (26 lb ft).
    10. NOTE:

    Install turbocharger studs only if the turbocharger is being replaced.

  10. If necessary, install NEW turbocharger studs (1) in the NEW turbocharger. Tighten the studs to 25 N.m (18 lb ft).

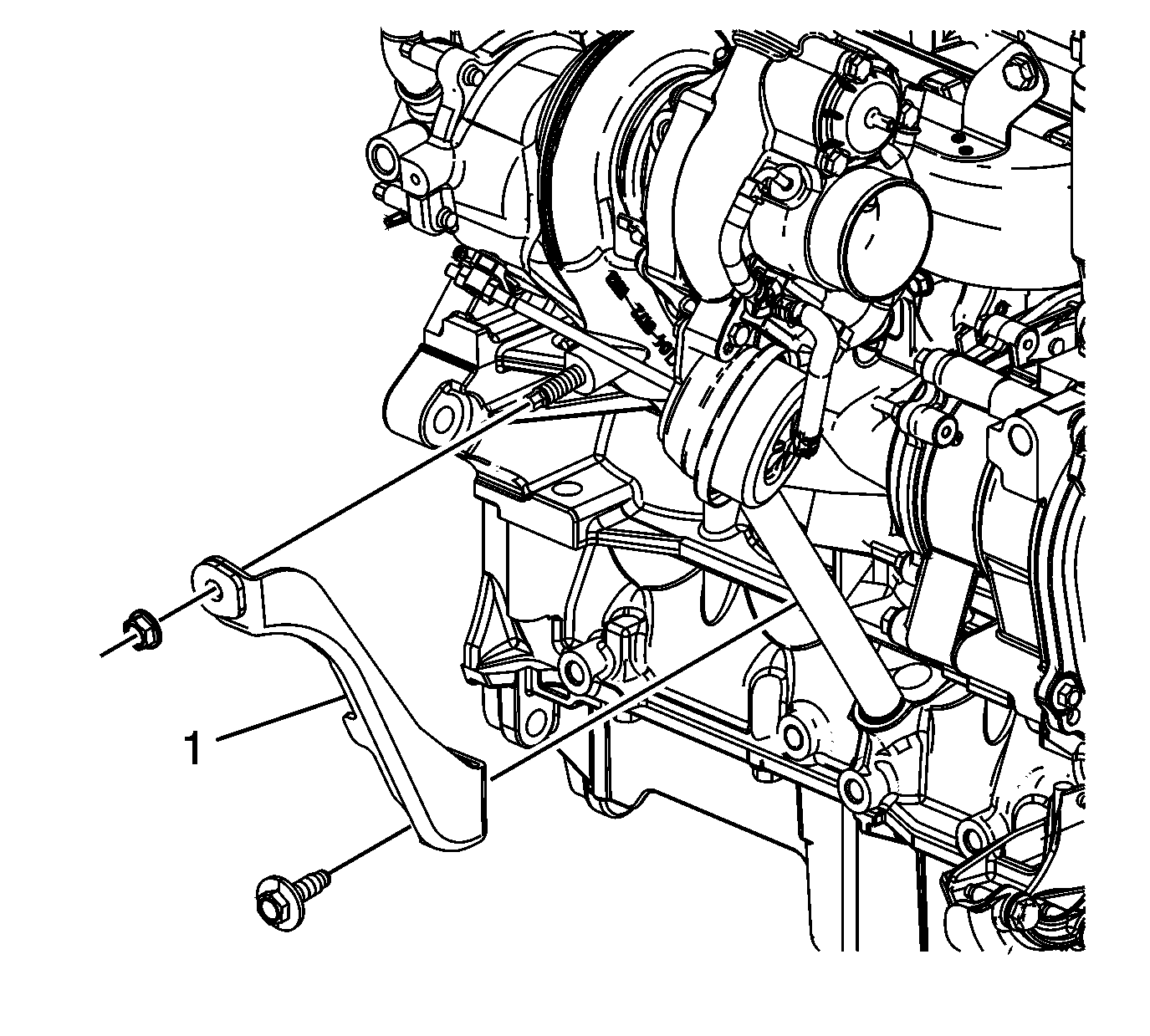

    11. Fig 3: Turbocharger Brace
    GM2074523Courtesy of GENERAL MOTORS COMPANY
  11. Install the turbocharger brace (1).
  12. Install the turbocharger brace nuts and tighten to 58 N.m (43 lb ft).

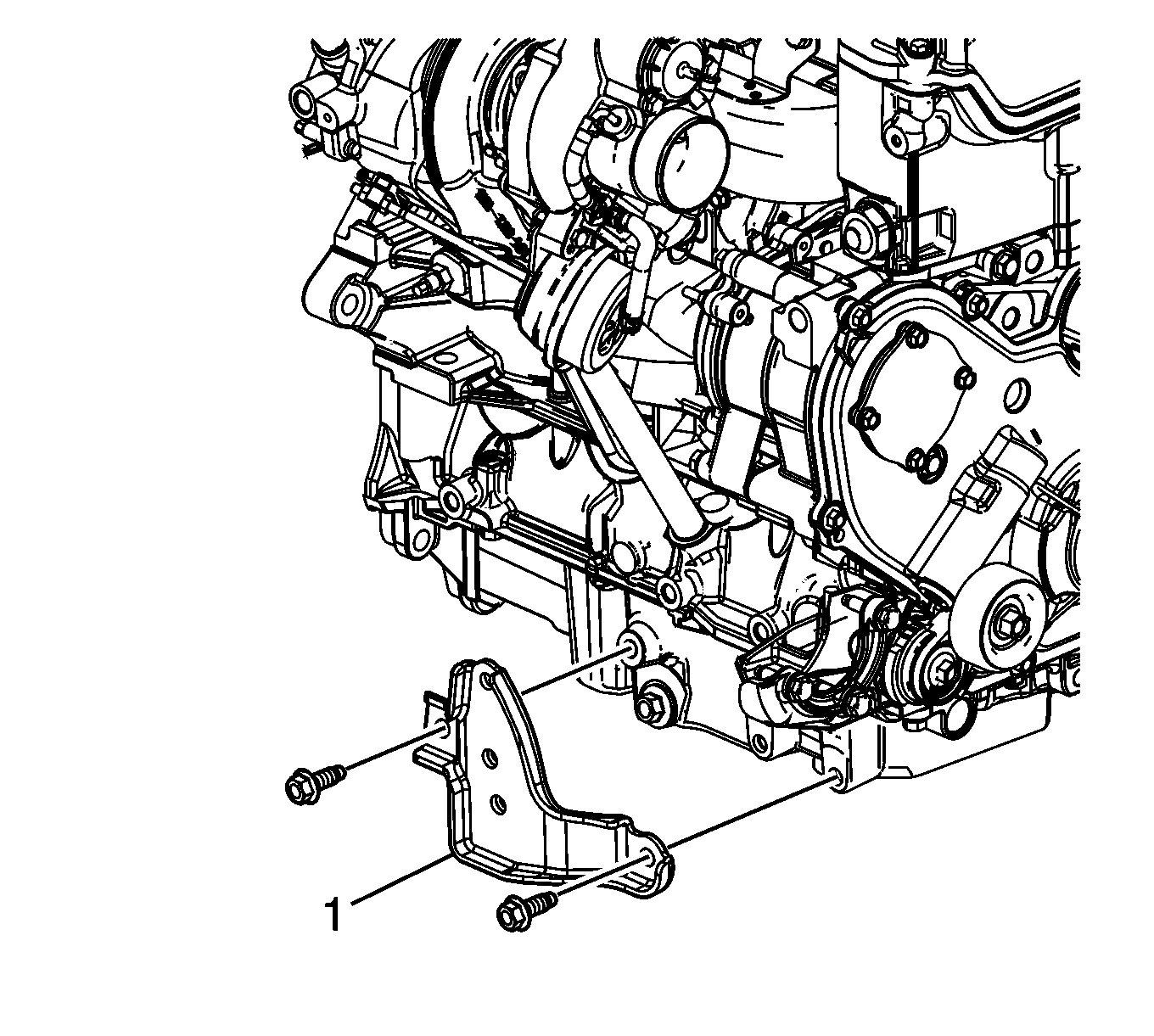

    13. Fig 4: Catalytic Converter Bracket
    GM2074522Courtesy of GENERAL MOTORS COMPANY
  13. Install the catalytic converter bracket (1).
  14. Install the catalytic converter bracket bolts and tighten to 50 N.m (37 lb ft).

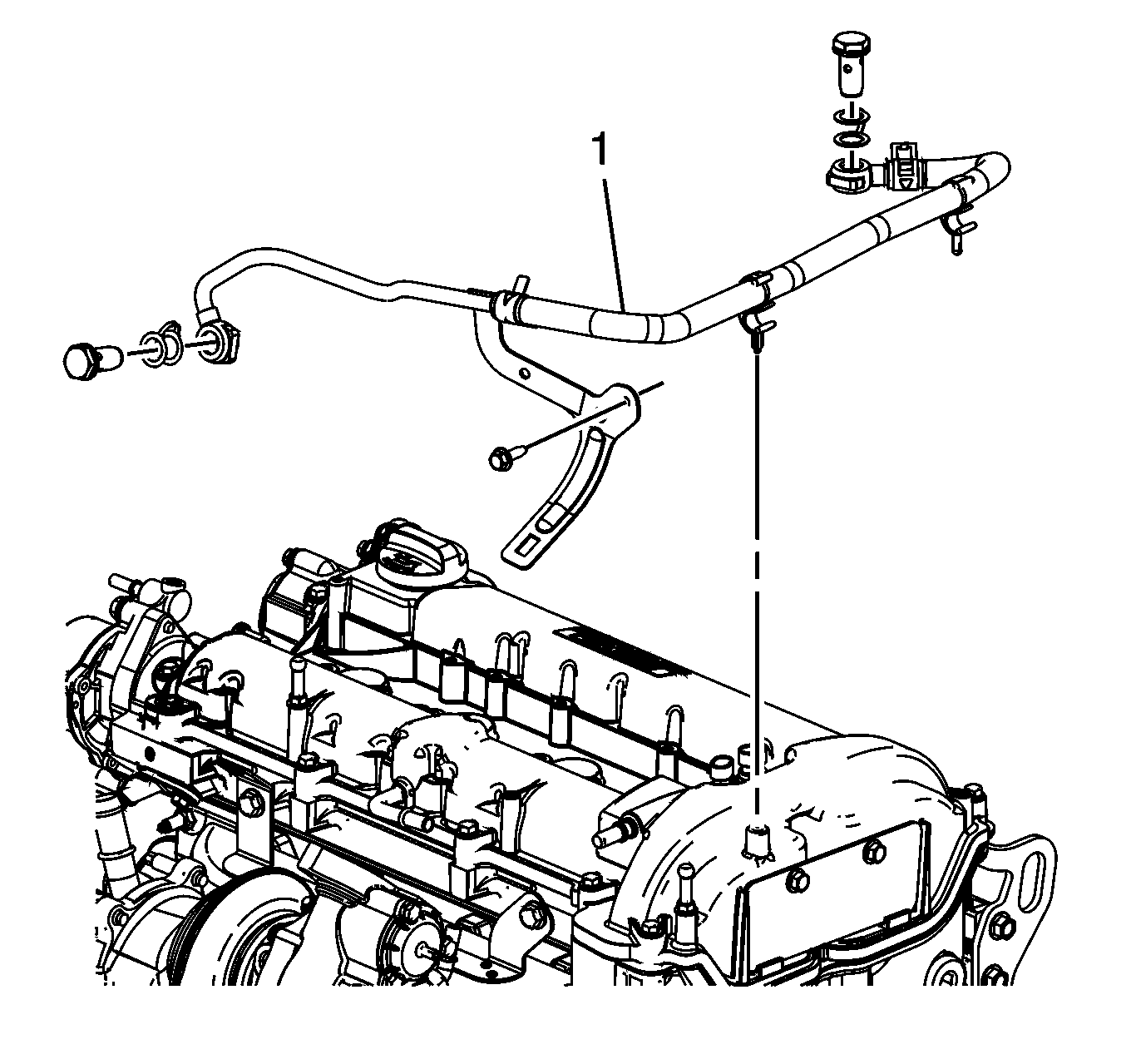

    15. Fig 5: Turbocharger Coolant Feed Pipe
    GM2074519Courtesy of GENERAL MOTORS COMPANY
  15. Install the turbocharger coolant feed pipe (1).
  16. Install the turbocharger coolant feed pipe gaskets.
  17. Install the turbocharger coolant feed pipe bolts.
    1. Tighten the turbocharger coolant feed pipe bolts to 35 N.m (26 lb ft).
    2. Tighten the turbocharger coolant feed pipe mounting bolt to 10 N.m (89 lb in).
  18. Connect the positive crankcase ventilation (PCV) and hose assembly.

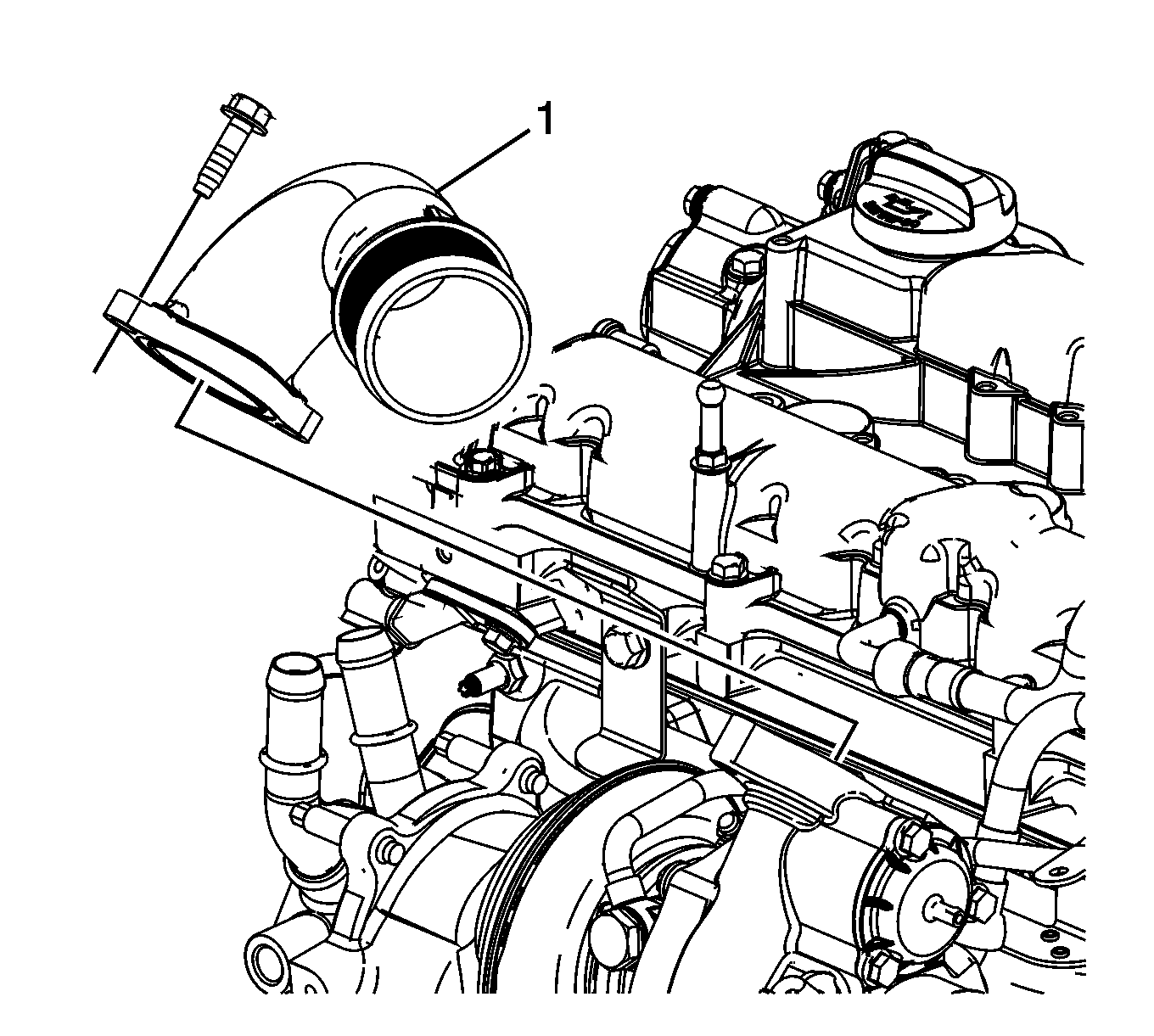

    19. Fig 6: Identifying Turbocharger Air Cooler Outlet Pipe & Bolts
    GM2045493Courtesy of GENERAL MOTORS COMPANY
  19. Install the turbocharger air cooler outlet pipe (1).
  20. Install the turbocharger air cooler outlet pipe bolts and tighten to 25 N.m (18 lb ft).

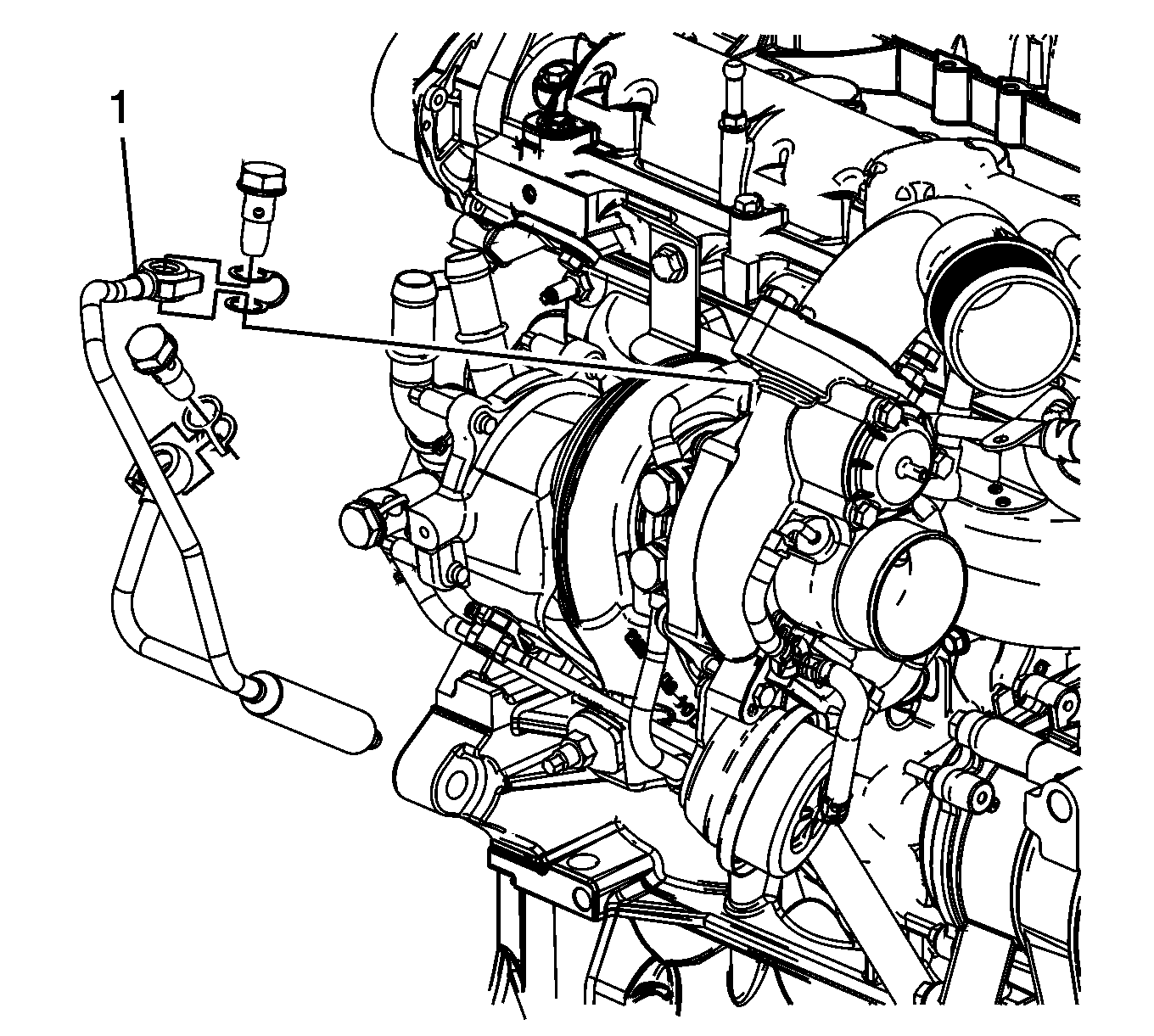

    21. Fig 7: Turbocharger Oil Feed Pipe
    GM2074517Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Do not twist the turbocharger oil feed pipe. Twisting of the feed pipe will result in the collapse and deformation of the plastic pipe, restricting oil flow and causing turbocharger damage. During turbocharger replacement, gently push the oil feed pipe towards the front of the engine to clear the turbocharger. Assistance may be required to keep the pipes clear of the turbocharger during removal or installation.

    NOTE:

    The engine block end of the oil feed pipe fitting has an anti-rotation feature. Ensure that the fitting is fully seated against the block when installing the bolt.

  21. Install the turbocharger oil feed pipe (1) on the engine block side.
  22. Install the turbocharger oil feed pipe gasket on the engine block side.
  23. Install the bolt and tighten to 45 N.m (33 lb ft).

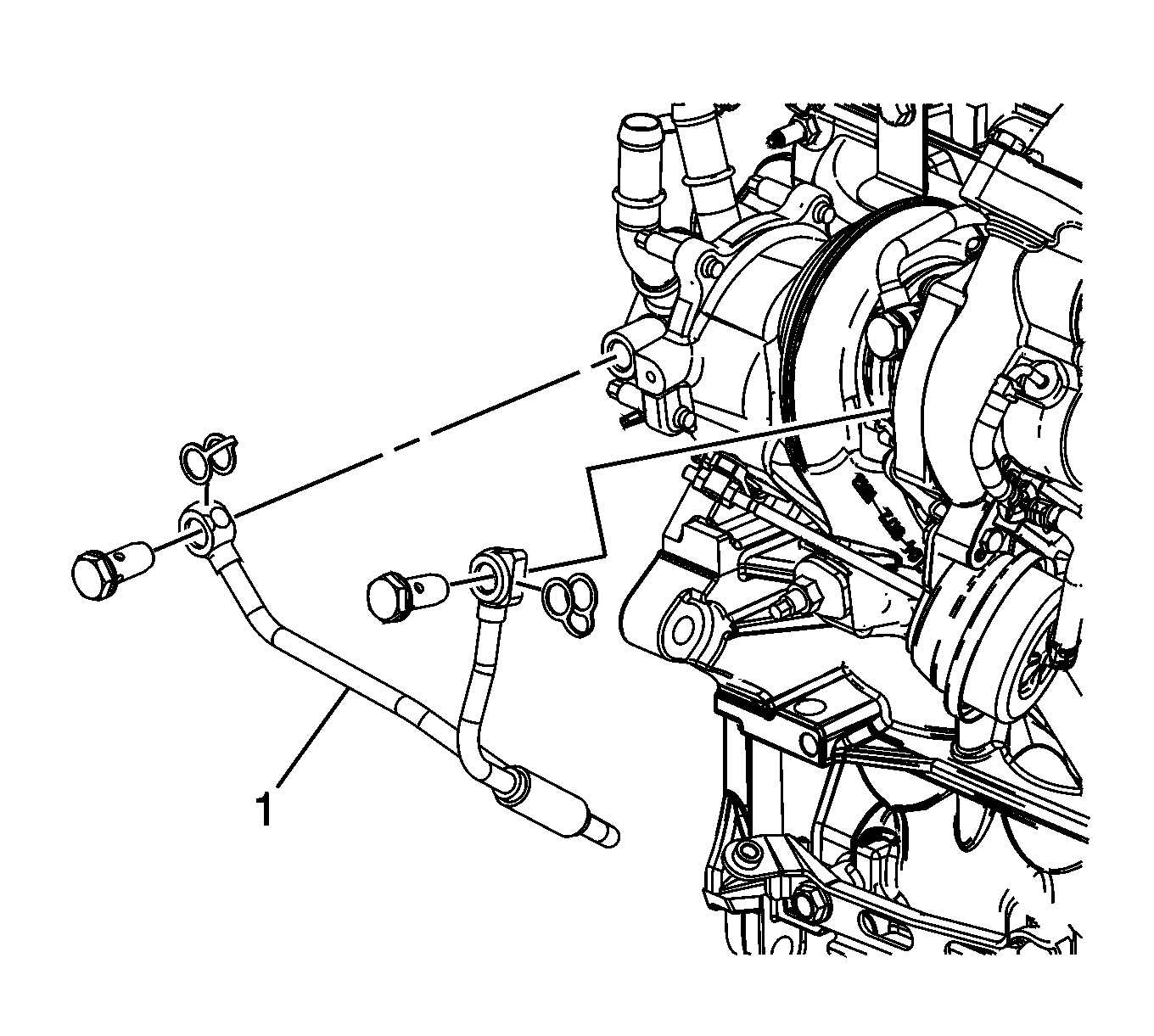

    24. Fig 8: Turbocharger Coolant Return Pipe
    GM2146278Courtesy of GENERAL MOTORS COMPANY
  24. Install the turbocharger coolant return pipe (1).
  25. Install the turbocharger coolant return pipe gaskets.
  26. Install the turbocharger coolant return pipe bolts and tighten to 35 N.m (26 lb ft).
    27. Fig 9: Turbocharger Oil Feed Pipe
    GM2074517Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Do not twist the turbocharger oil feed pipe. Twisting of the feed pipe will result in the collapse and deformation of the plastic pipe, restricting oil flow and causing turbocharger damage. During turbocharger replacement, gently push the oil feed pipe towards the front of the engine to clear the turbocharger. Assistance may be required to keep the pipes clear of the turbocharger during removal or installation.

  27. Install the turbocharger oil feed pipe (1) onto the turbocharger.
  28. Install the turbocharger oil feed pipe gasket for the turbocharger side.
  29. Install the turbocharger oil feed pipe bolt and tighten to 40 N.m (30 lb ft).

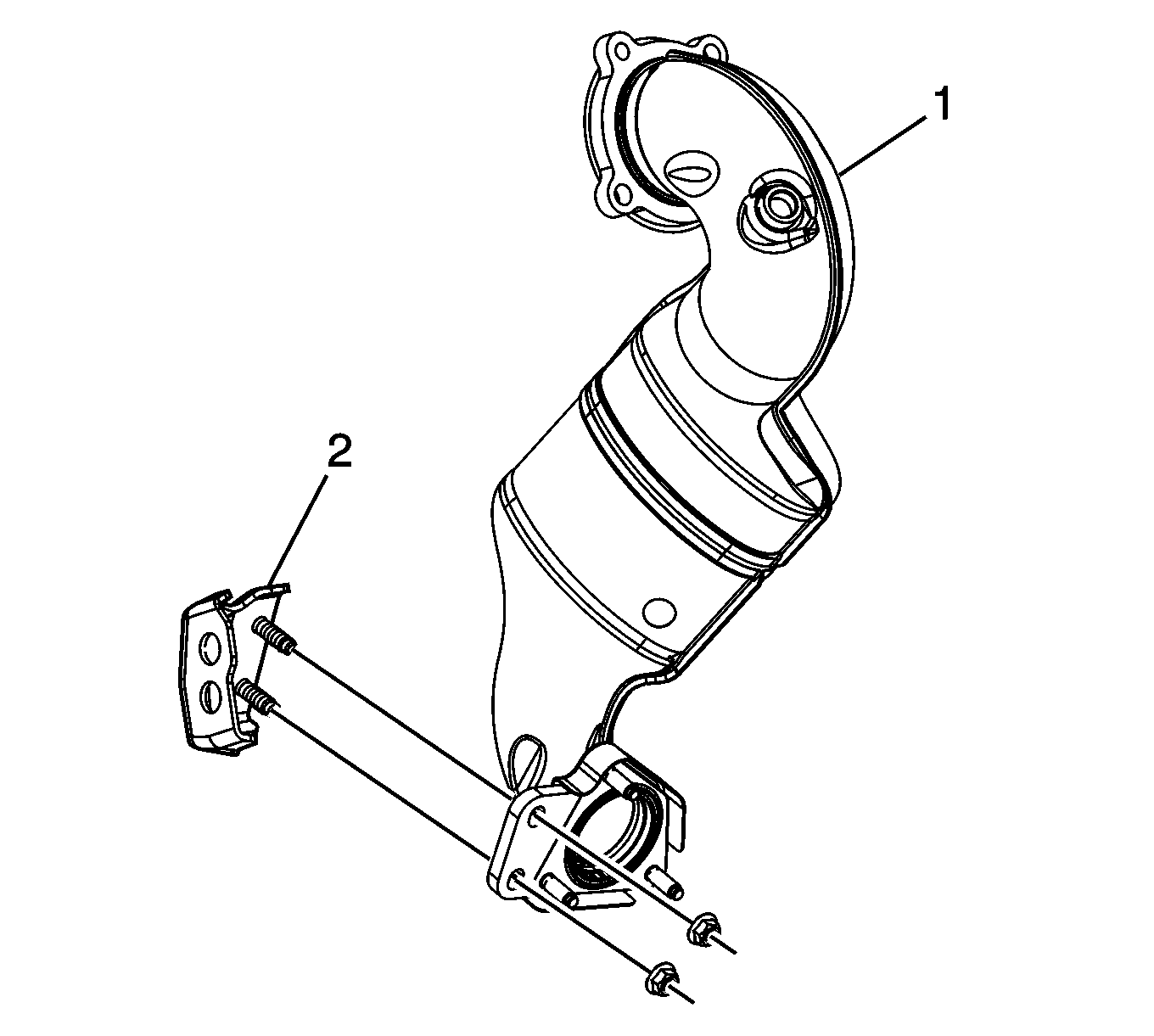

    30. Fig 10: Catalytic Converter And L-Bracket
    GM2084084Courtesy of GENERAL MOTORS COMPANY
  30. Install the catalytic converter L-bracket (2) onto the catalytic converter (1).
  31. Install the catalytic converter L-bracket nuts and tighten to 50 N.m (37 lb ft).

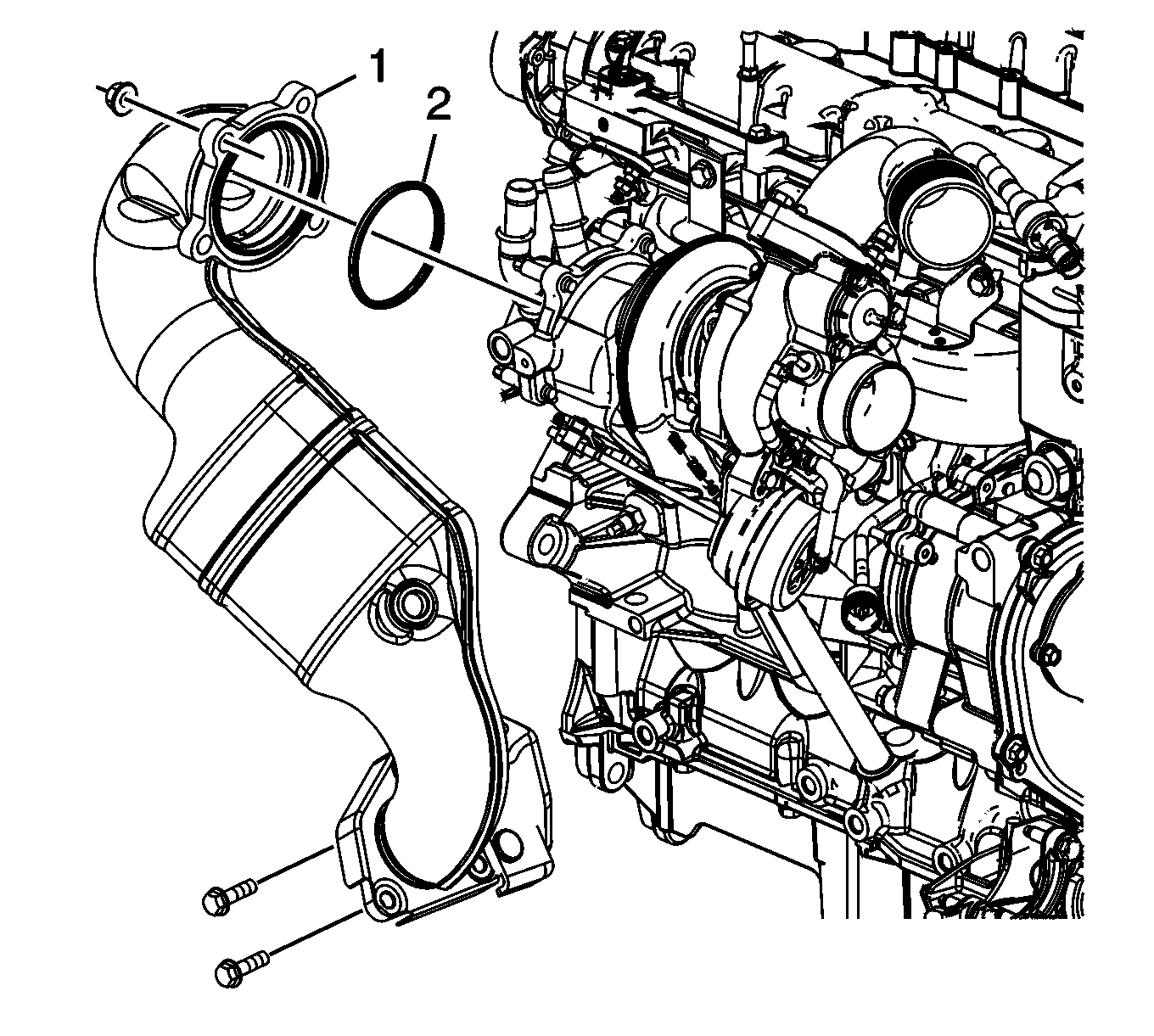

    32. Fig 11: Catalytic Converter And Seal
    GM2074514Courtesy of GENERAL MOTORS COMPANY
  32. Install the catalytic converter seal (2).
  33. Install the catalytic converter (1).
    34. CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

  34. Install NEW catalytic converter nuts and tighten to 50 N.m (37 lb ft).
  35. Install the catalytic converter bolts and tighten to 50 N.m (37 lb ft).

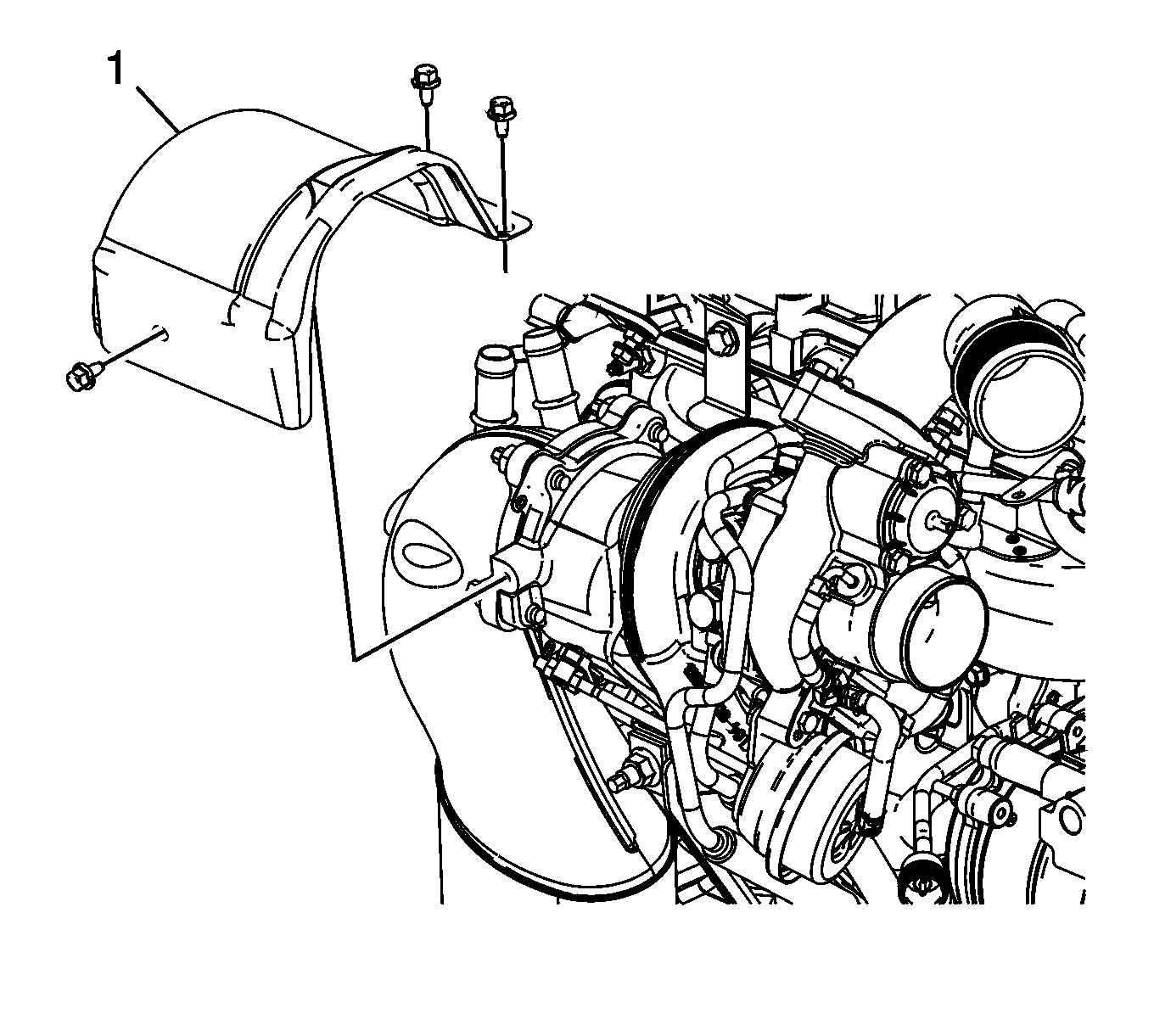

    36. Fig 12: Turbocharger Heat Shield And Bolts
    GM2146277Courtesy of GENERAL MOTORS COMPANY
  36. Install the turbocharger heat shield (1).
  37. Install the turbocharger heat shield bolts and tighten to 10 N.m (89 lb in).
