Starter Installation

WARNING: This page is about a different variant/trim than selected.

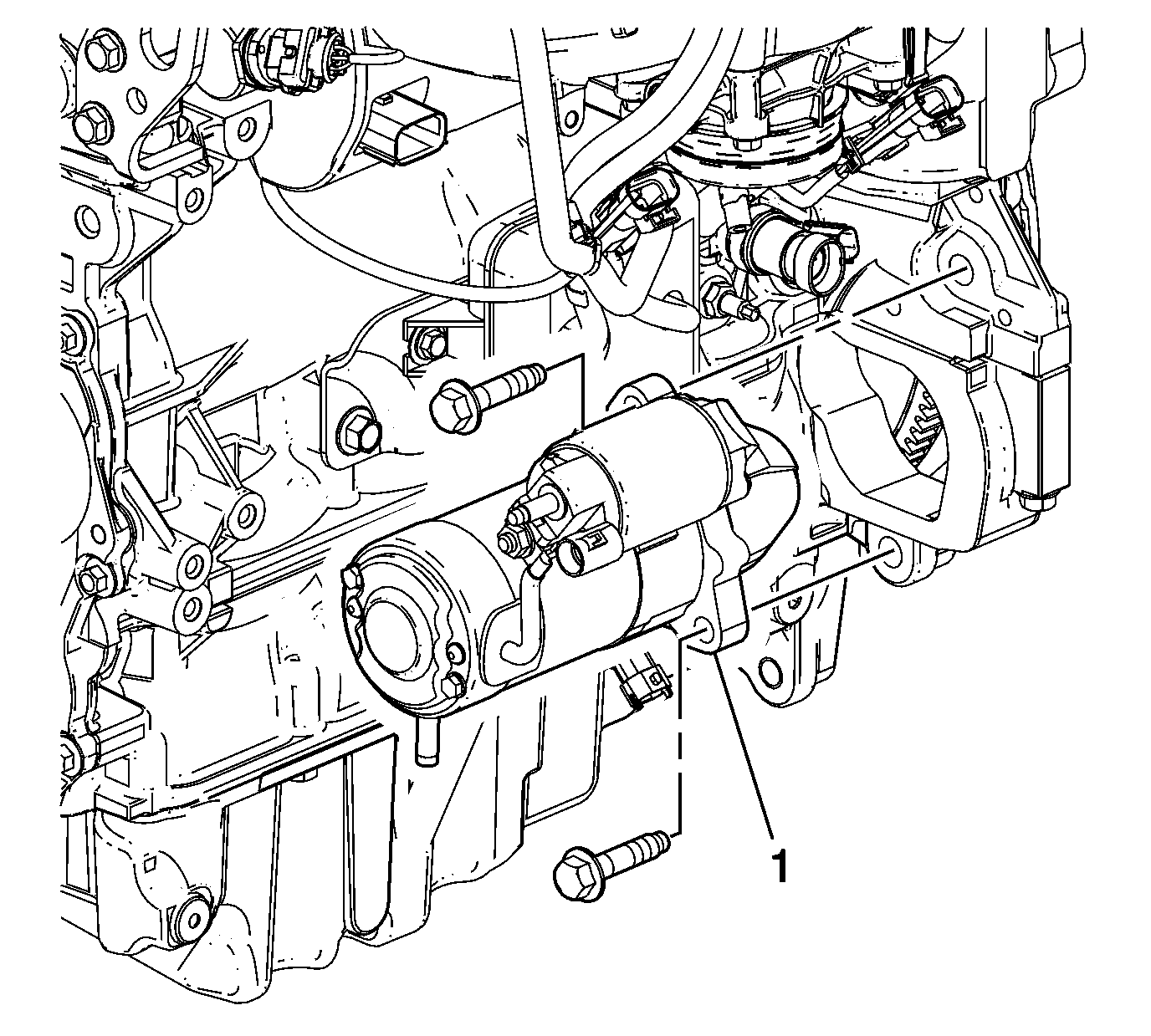

    Fig 1: Starter And Bolts
    GM2600407Courtesy of GENERAL MOTORS COMPANY
  1. Install the starter (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the starter bolts and tighten to 58 N.m (43 lb ft).
