Oil Pan Removal (LDK, LHU)

WARNING: This page is about a different variant/trim than selected.

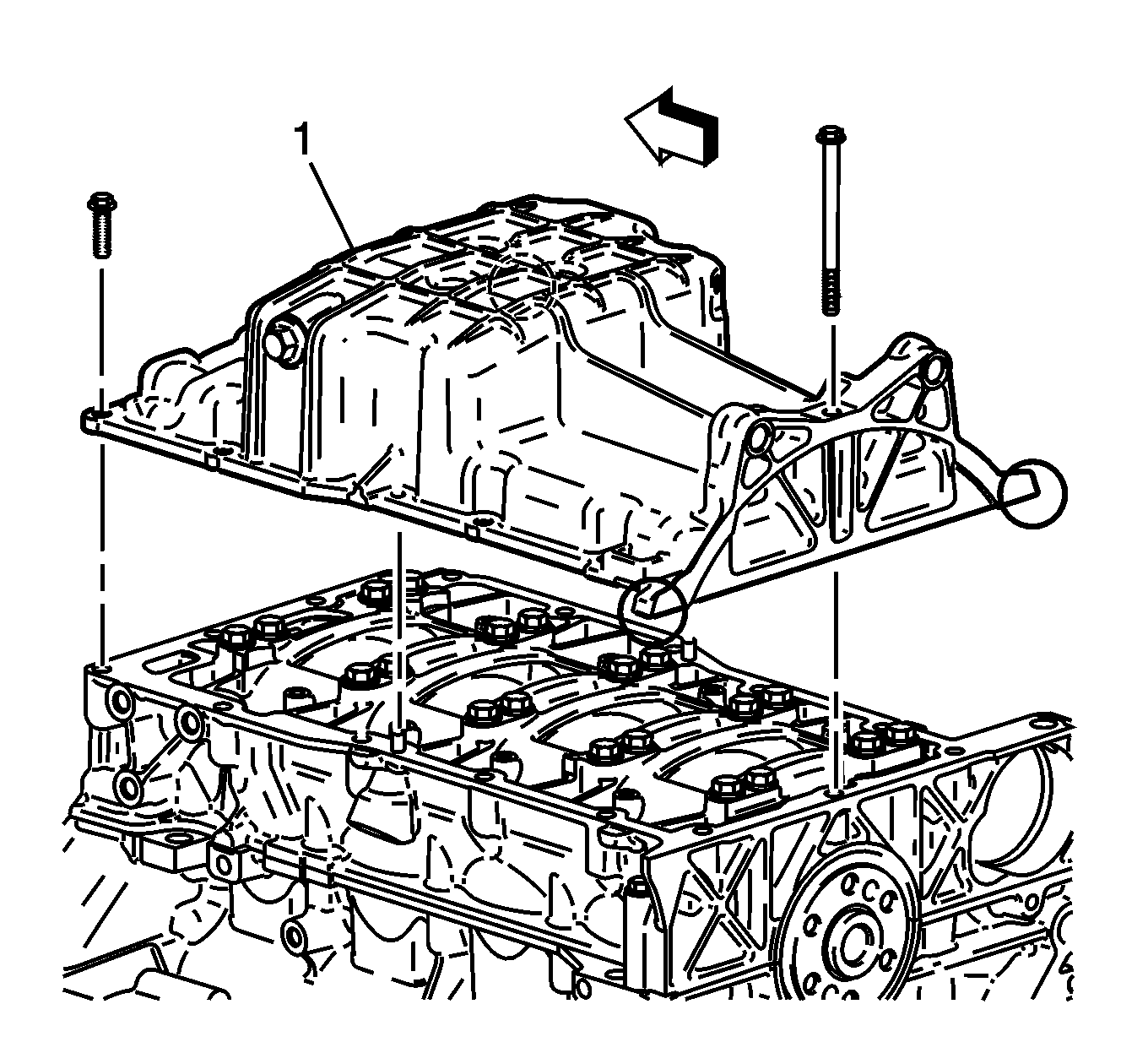

    Fig 1: Oil Pan
    GM2146304Courtesy of GENERAL MOTORS COMPANY
  1. Remove the oil pan bolts.
  2. Remove the oil pan (1) at pry points.
