Oil Level Indicator and Tube Removal (LDK, LHU)
WARNING: This page is about a different variant/trim than selected.

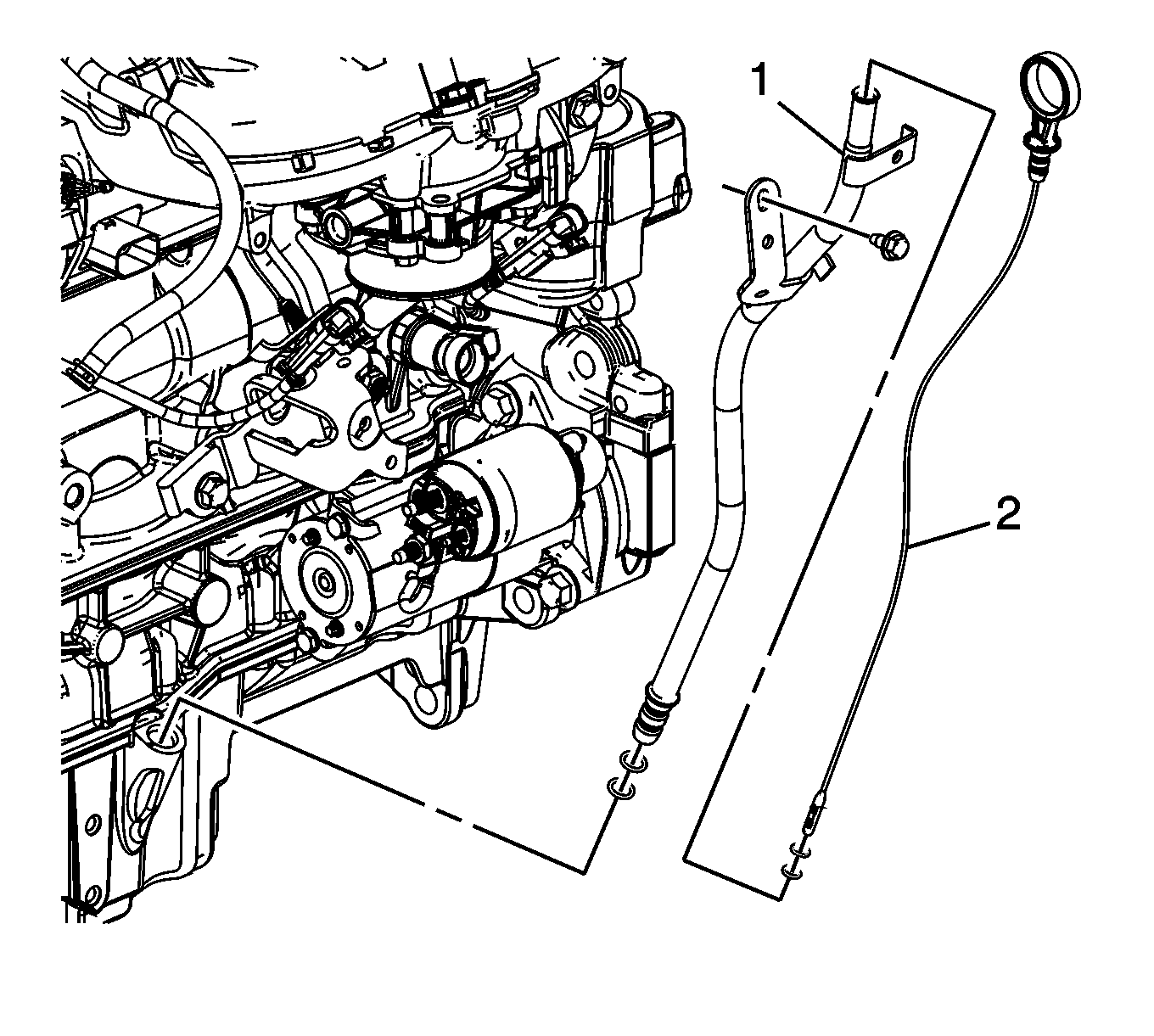

- Disconnect the knock sensor from the oil level indicator tube (1).
- Remove the electrical wiring harness from the oil level indicator tube.
- Remove the oil level indicator tube bracket to the intake manifold bolt.
- Remove the oil level indicator (2) and the oil level indicator tube from the oil pan.
- Inspect the O-rings for damage. Replace if damaged.
