Intake Camshaft and Components Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Intake Camshaft Position Actuator Solenoid Valve & Bolt
    GM2074533Courtesy of GENERAL MOTORS COMPANY
  1. Remove the intake camshaft position actuator solenoid valve bolt (1) and valve (2).
    2. Fig 2: Rear Cylinder Head Opening Plate
    GM2141371Courtesy of GENERAL MOTORS COMPANY
  2. Remove the rear cylinder head opening plate bolts (2) and plate (1).

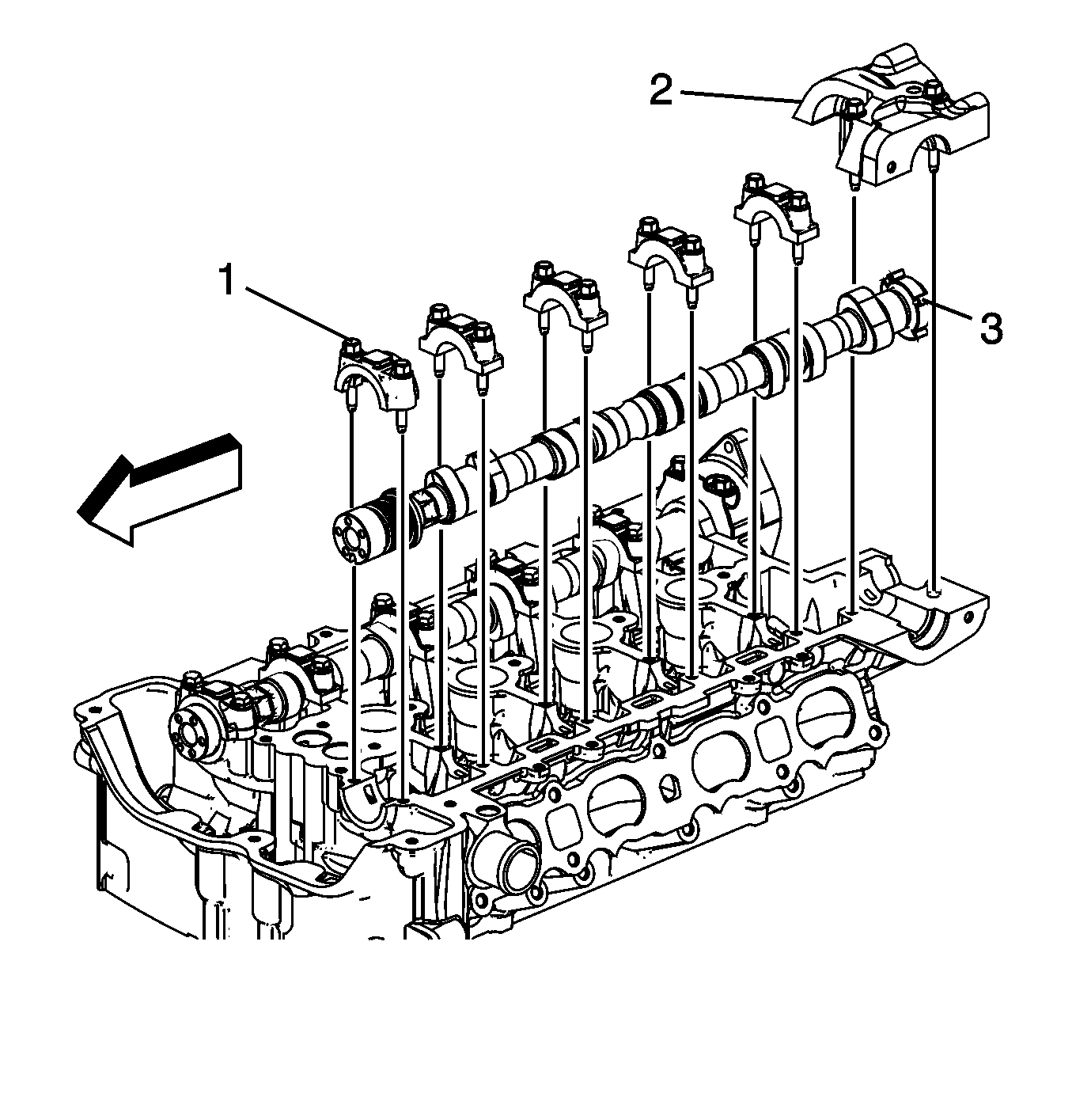

    3. Fig 3: Intake Camshaft, Bearing Caps And Bolts
    GM2074535Courtesy of GENERAL MOTORS COMPANY
  3. Remove the intake camshaft bearing rear cap bolts and camshaft bearing rear cap (2).
    4. NOTE:

    Remove each bolt on each cap one turn at a time until there is no spring tension pushing on the camshaft.

  4. Mark camshaft caps to ensure they are installed in the same position.
  5. Remove the intake camshaft cap bolts.
  6. Remove the camshaft caps (1).
  7. Remove the intake camshaft (3).
    8. Fig 4: Intake Camshaft Roller Finger Followers
    GM2074537Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Keep all of the roller finger followers and hydraulic lash adjusters in order so that they can be reinstalled in their respective locations.

  8. Remove the intake camshaft roller finger followers (1).
    9. Fig 5: Hydraulic Lash Adjusters
    GM2074539Courtesy of GENERAL MOTORS COMPANY
  9. Remove the hydraulic lash adjusters (1).
