Exhaust Camshaft and Components Installation

WARNING: This page is about a different variant/trim than selected.

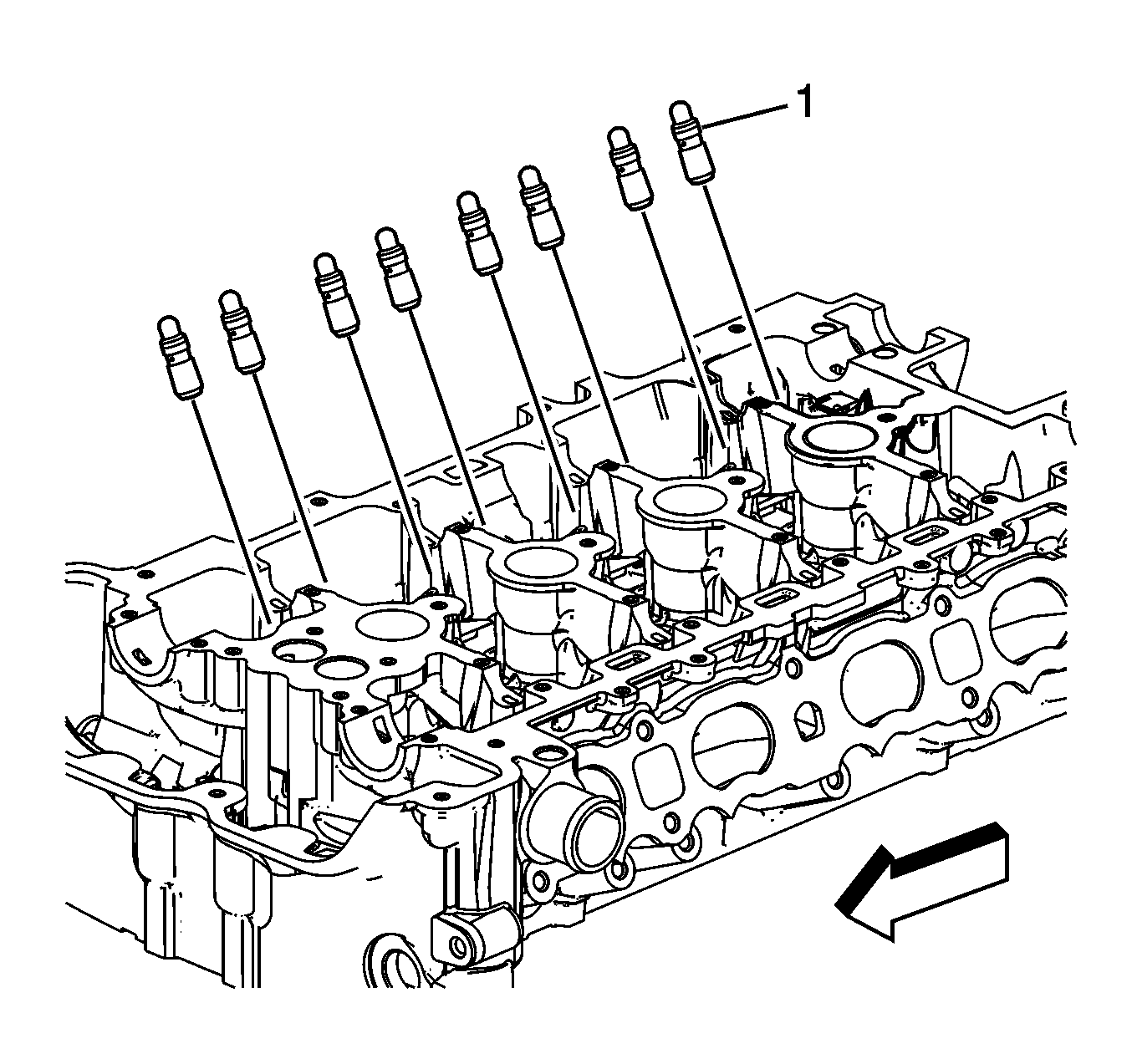

    Fig 1: Hydraulic Lash Adjusters
    GM2074551Courtesy of GENERAL MOTORS COMPANY
  1. Install the hydraulic lash adjusters (1) into their bores in the cylinder head. Apply lubricant to the lash adjusters, refer to Adhesives, Fluids, Lubricants, and Sealers .
  2. Fig 2: Lubricating Valve Tips
    GM2146377Courtesy of GENERAL MOTORS COMPANY
  3. Lubricate the valve tips (1), refer to Adhesives, Fluids, Lubricants, and Sealers .

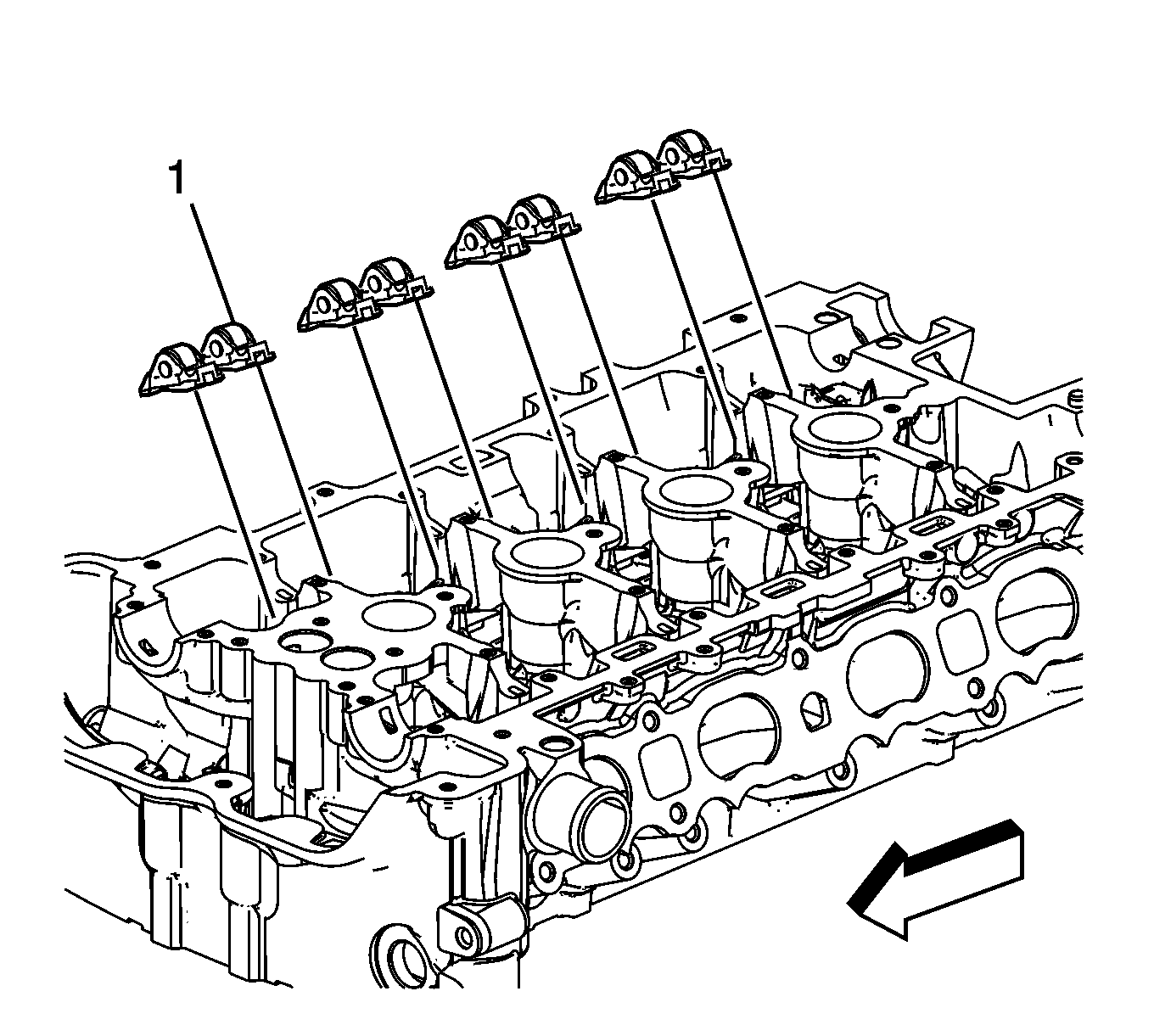

  4. Fig 3: Exhaust Camshaft Roller Finger Followers
    GM2074547Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Used roller followers must be returned to the original position on the camshaft. If the camshaft is being replaced, the roller followers actuated by the camshaft must also be replaced.

  5. Position the roller followers (1) on the tip of the valve stem and on the lash adjuster. Apply lubricant to the followers, refer to Adhesives, Fluids, Lubricants, and Sealers .

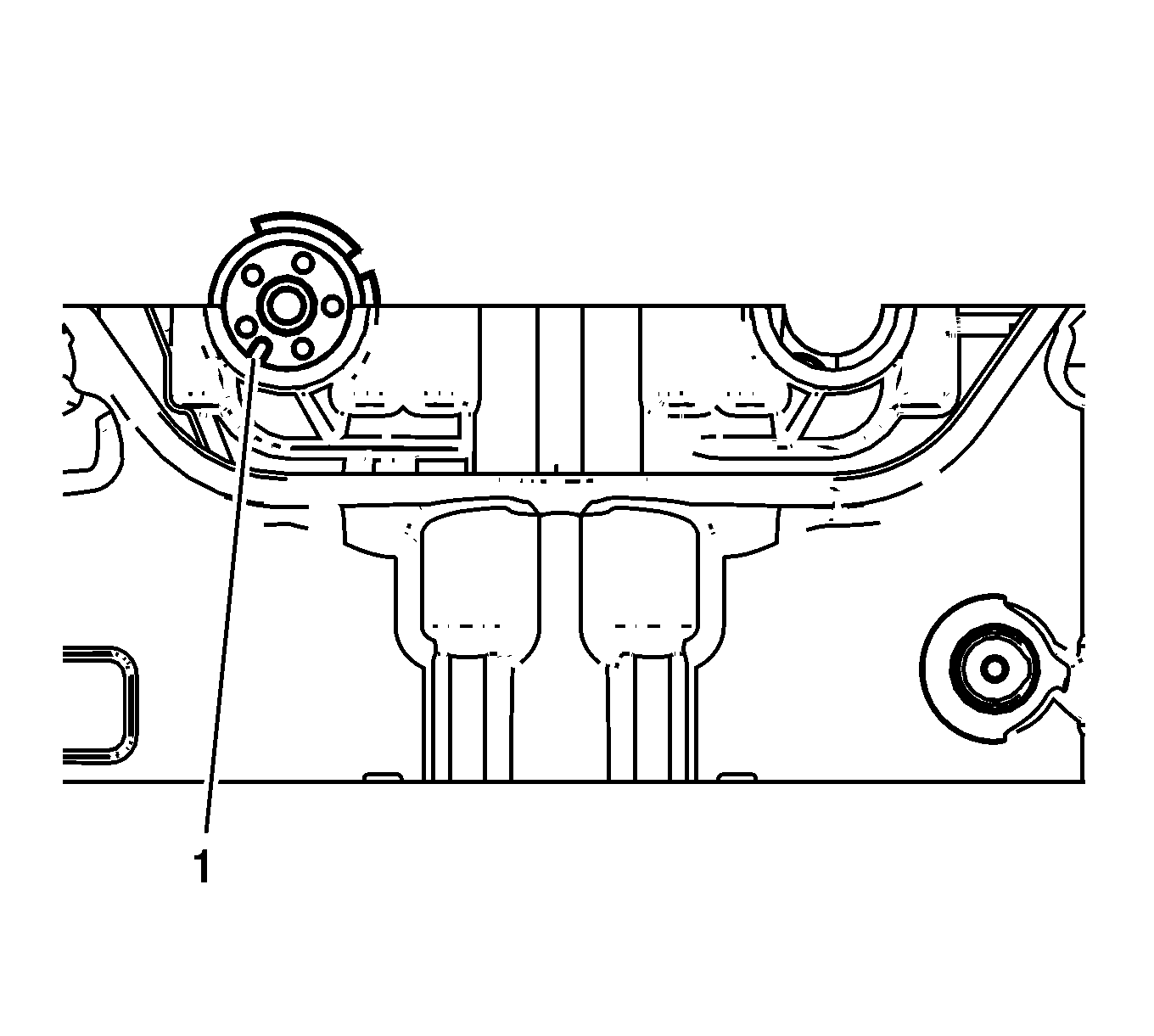

  6. Fig 4: Positioning Exhaust Camshaft Notch
    GM2141366Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The engine is timed top dead center exhaust stroke.

  7. When installing the camshafts, ensure the exhaust camshaft notch is in the 7 o'clock position (1). The number 1 piston should be at top dead center (TDC), crankshaft key at 12 o'clock.

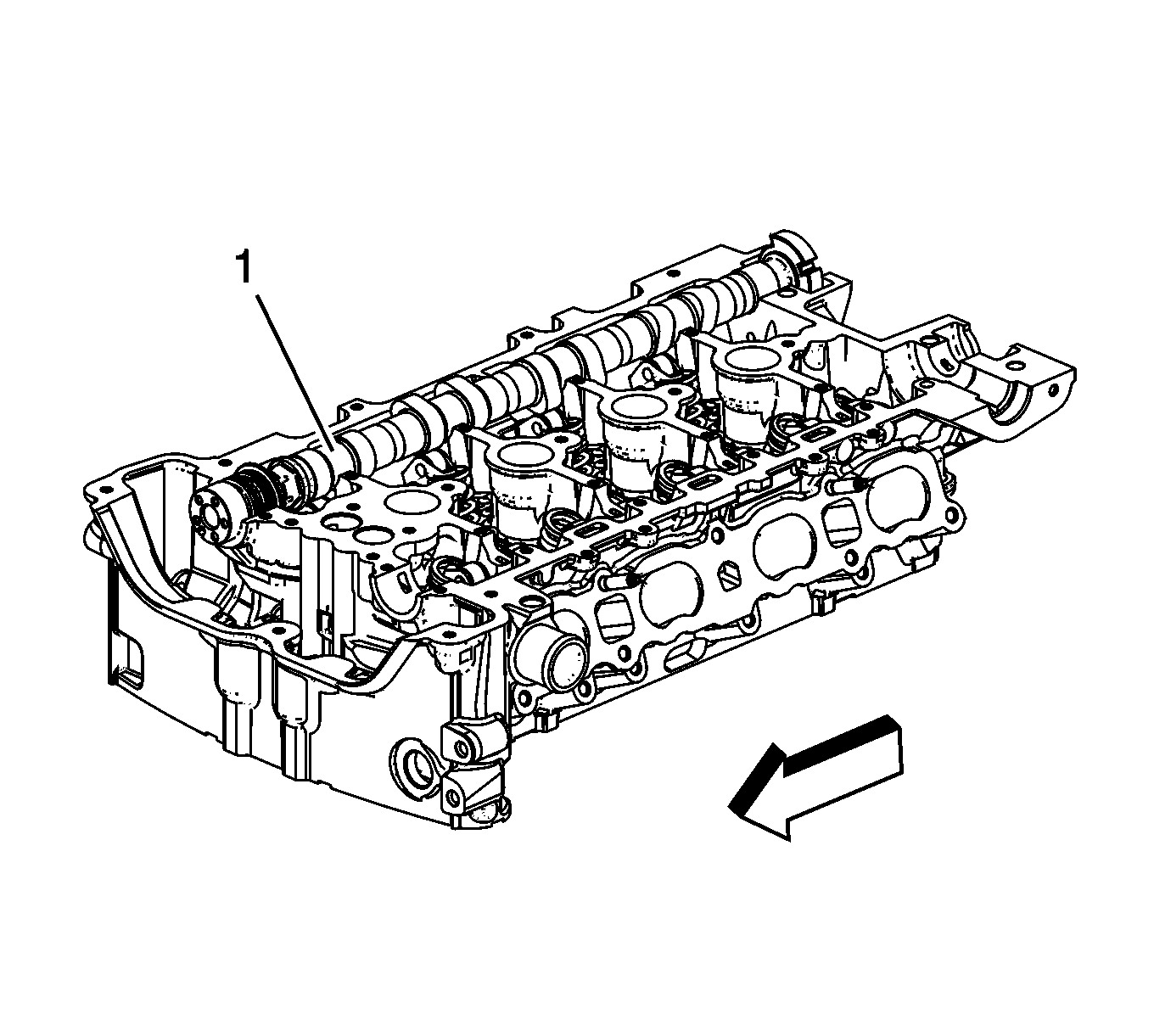

  8. Fig 5: Installing Exhaust Camshaft
    GM2141365Courtesy of GENERAL MOTORS COMPANY
  9. Set the exhaust camshaft (1) on top of the roller followers in the camshaft bearing journals. Lubricate the camshaft, refer to Adhesives, Fluids, Lubricants, and Sealers .
  10. Fig 6: Oil Seals
    GM1846063Courtesy of GENERAL MOTORS COMPANY
  11. Rotate the oil seal in the groove of the number one camshaft journal so the split line (1) is at approximately the 12 o'clock position before installing the camshaft caps.
  12. Fig 7: Positioning Exhaust Camshaft Notch
    GM2141366Courtesy of GENERAL MOTORS COMPANY
  13. Install the exhaust camshaft with the notch on the front (1) at approximately the 7 o'clock position.

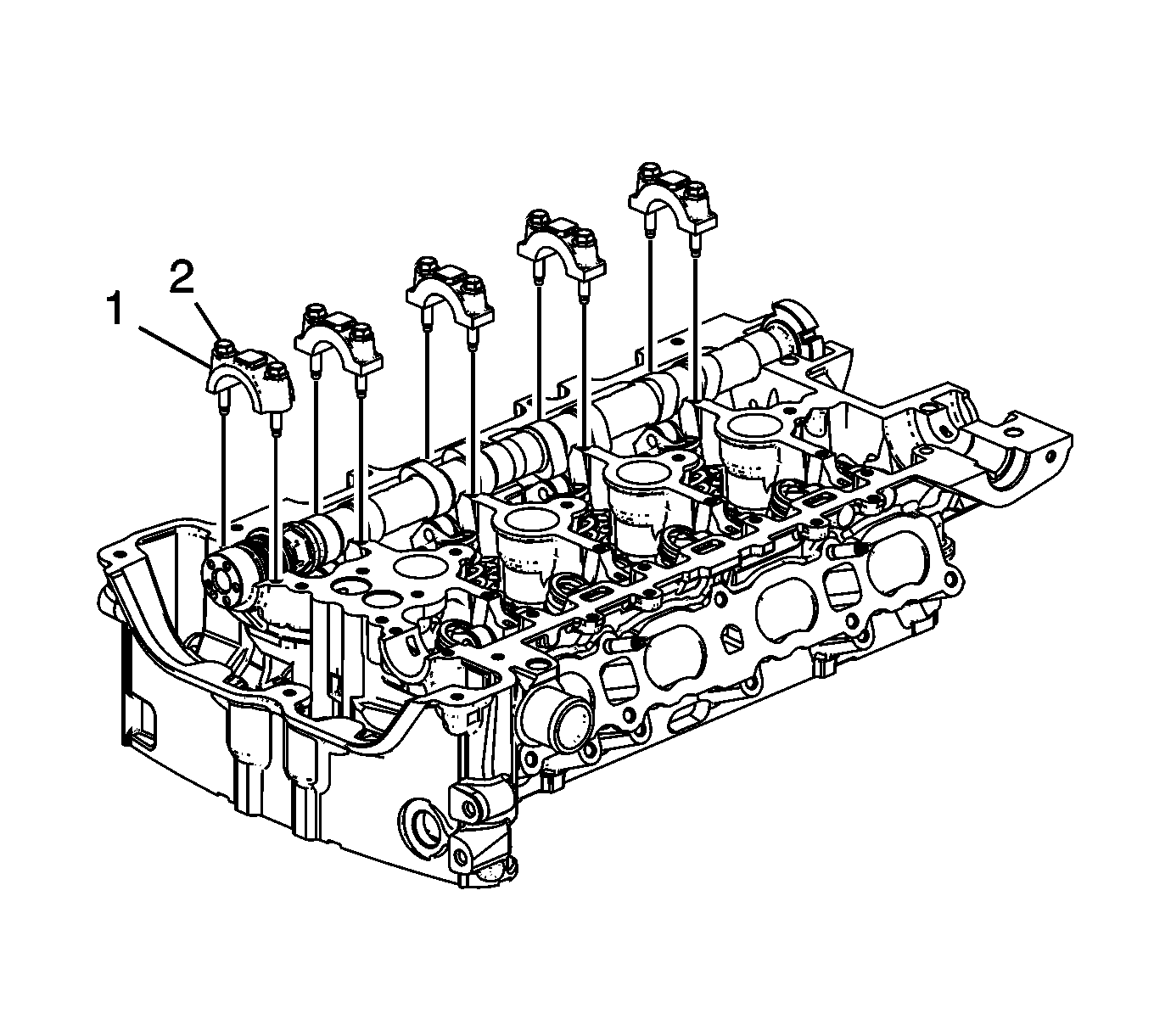

  14. Fig 8: Camshaft Bearing Caps
    GM2141367Courtesy of GENERAL MOTORS COMPANY
  15. Install the camshaft caps (1) and hand start the camshaft cap bolts (2).
  16. CAUTION:

    Refer to Fastener Caution .

  17. Lubricate and tighten the camshaft cap bolts in increments of 3 turns until they are seated. Tighten the camshaft cap bolts to 10 N.m (89 lb in).

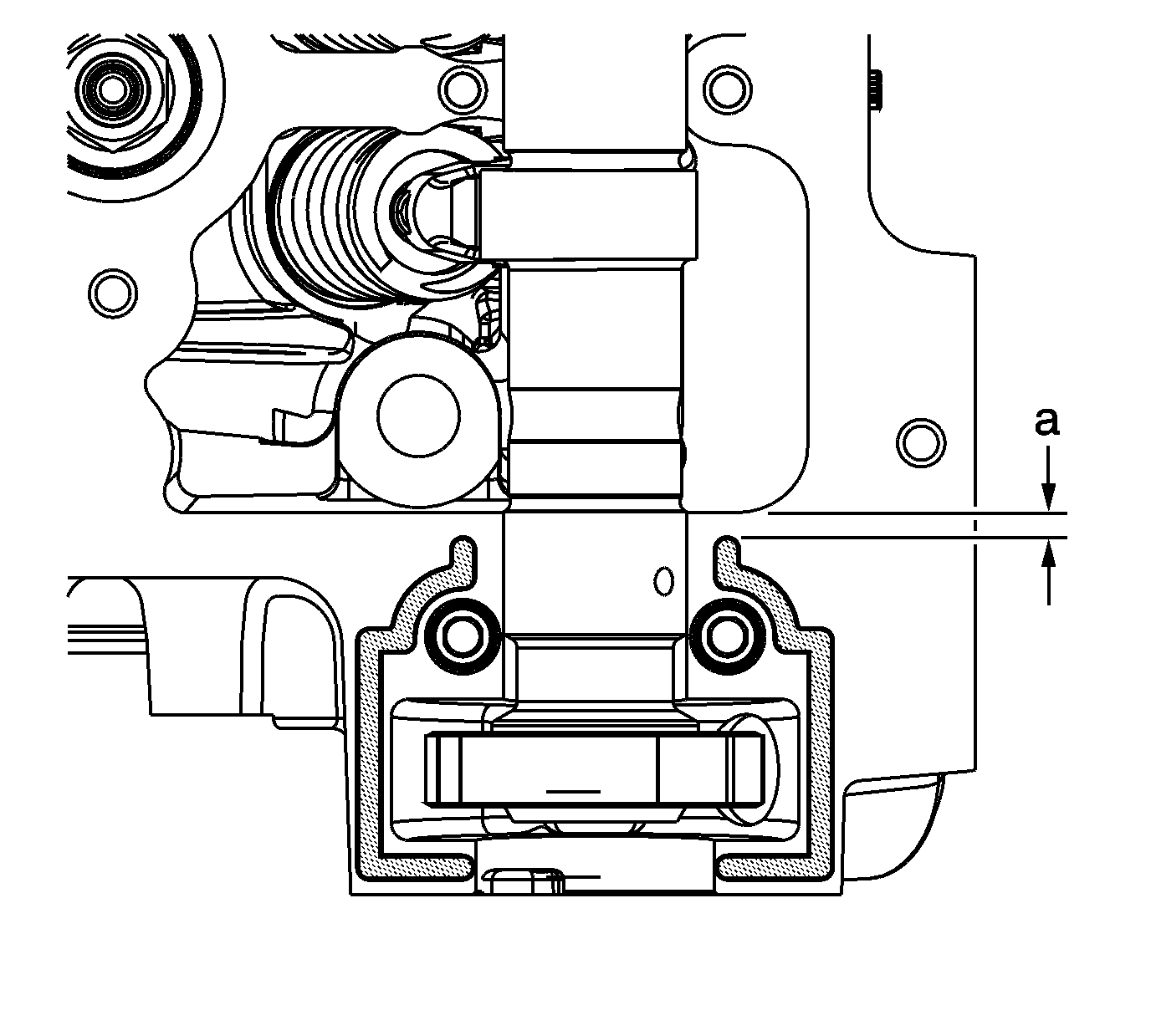

  18. Fig 9: Aligning Camshaft Rear Bearing Cap
    GM2074576Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    It is critical during installation to ensure the bearing rear cap and cylinder head alignment is correct and the mating surfaces are flush.

    • Ensure that all sealing material has been removed from the components, and the sealing surfaces are clean and free of contamination prior to applying the sealer.
    • Install and align the rear cap within 20 minutes of applying the sealer.
    NOTE:

    Apply the sealer to all locations centrally locating the bead on the rail. Run bead to within 2.0 mm of the end points, dimension (a), as shown. Where the cap ends on the perimeter rail, extend bead approximately 2.0 mm beyond edge of cap.

  19. Ensure proper use of room temperature vulcanizing (RTV) sealant.

    Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

  20. Apply a 2.5 mm bead of sealer to the cylinder head at the exhaust camshaft bearing rear cap mating surface. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  21. Install the exhaust camshaft bearing rear cap and bolts.
    1. Tighten the cap bolts evenly to 5 N.m (44 lb in).
    2. Tighten the cap bolts evenly to 10 N.m (89 lb in).
    3. Back the cap bolts out 120 degrees.
    4. Tighten the cap bolts evenly a final pass to 10 N.m (89 lb in).

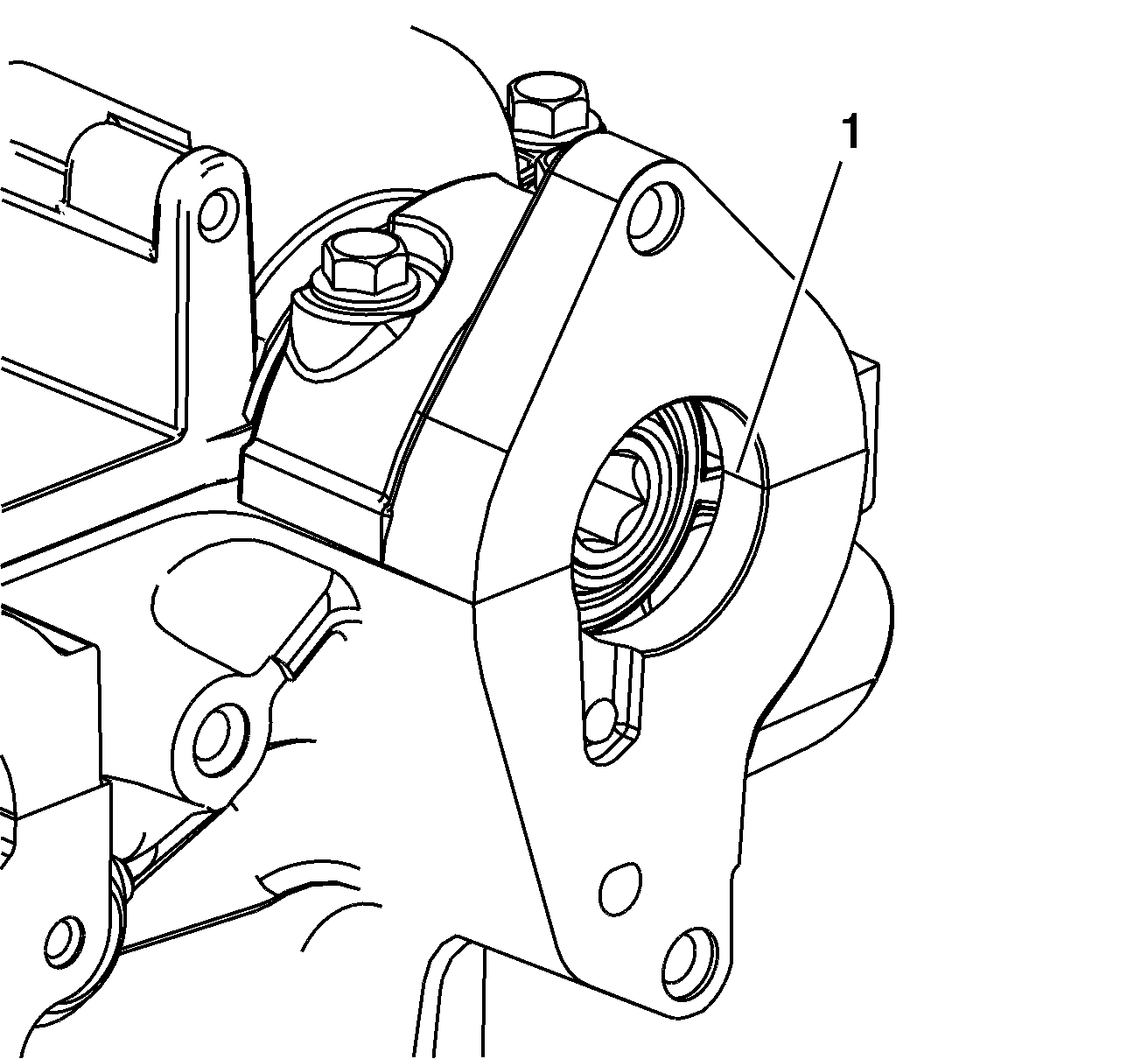

  22. Fig 10: Power Brake Booster Pump Bore
    GM2244395Courtesy of GENERAL MOTORS COMPANY
  23. Remove all excess sealing material from the power brake booster pump bore (1), and ensure the bore and gasket sealing surface is clean and free of debris. Do not allow any excess sealing material to remain within the cylinder head or on any sealing surface.
