Engine Oil Cooler Removal (LDK, LHU)

WARNING: This page is about a different variant/trim than selected.

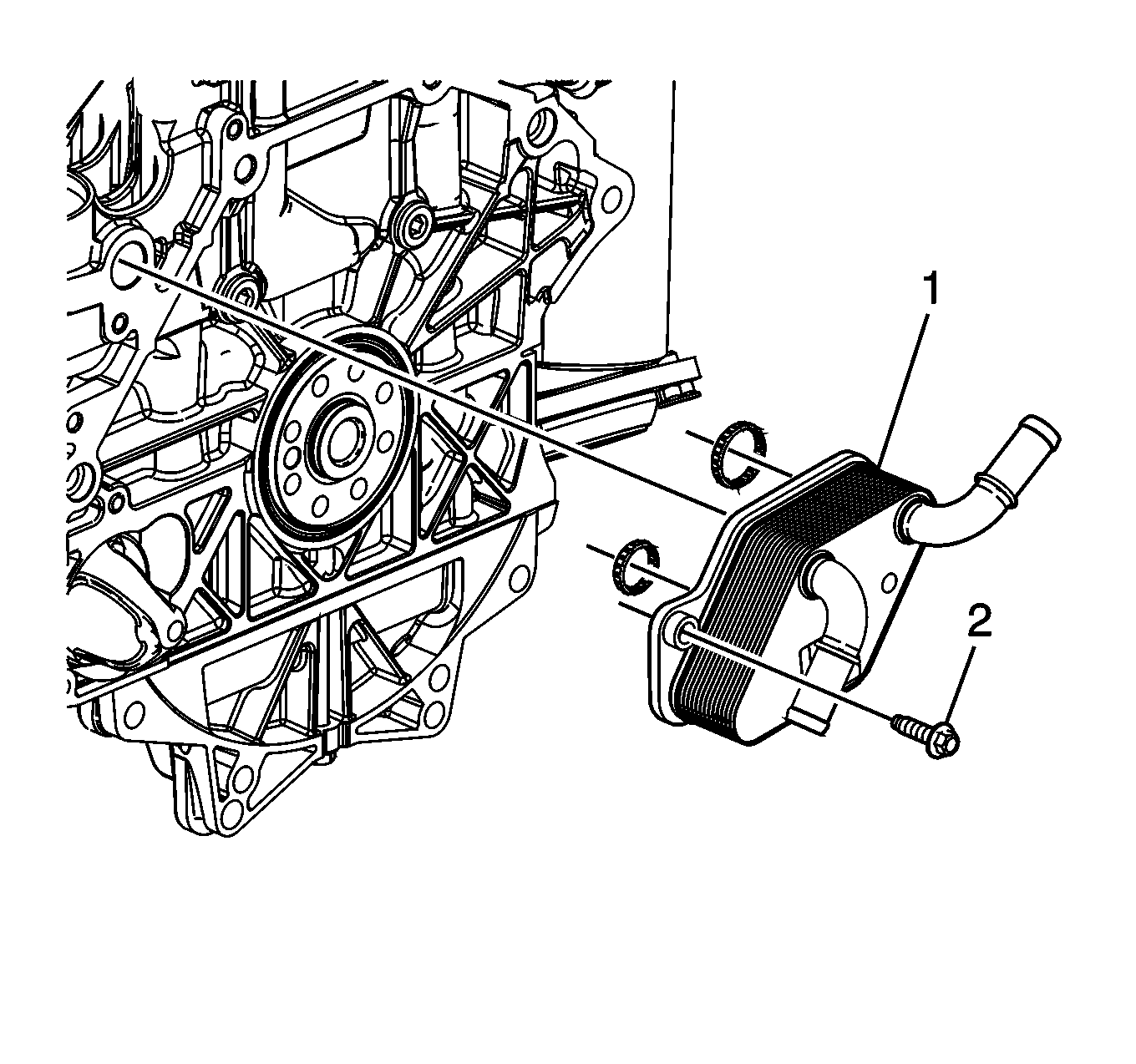

    Fig 1: Oil Cooler And Bolt
    GM2146263Courtesy of GENERAL MOTORS COMPANY
  1. Remove the oil cooler bolt (2).
    2. NOTE:

    The oil cooler cannot be flushed or otherwise cleaned of contamination. Replace the oil cooler if a mechanical condition is suspected that could cause the oil cooler to be contaminated.

  2. Remove the oil cooler (1).
