Engine Flywheel Removal (Manual Transmission)

Special Tools

EN-43653  Flywheel Holding Tool

For equivalent regional tools, refer to Special Tools (LDK, LHU) .

Fig 1: View of Engine Flywheel
Courtesy of GENERAL MOTORS COMPANY
1. Install EN-43653  flywheel holding tool (1) in the starter assembly location, engaging the flywheel, in order to prevent crankshaft rotation.

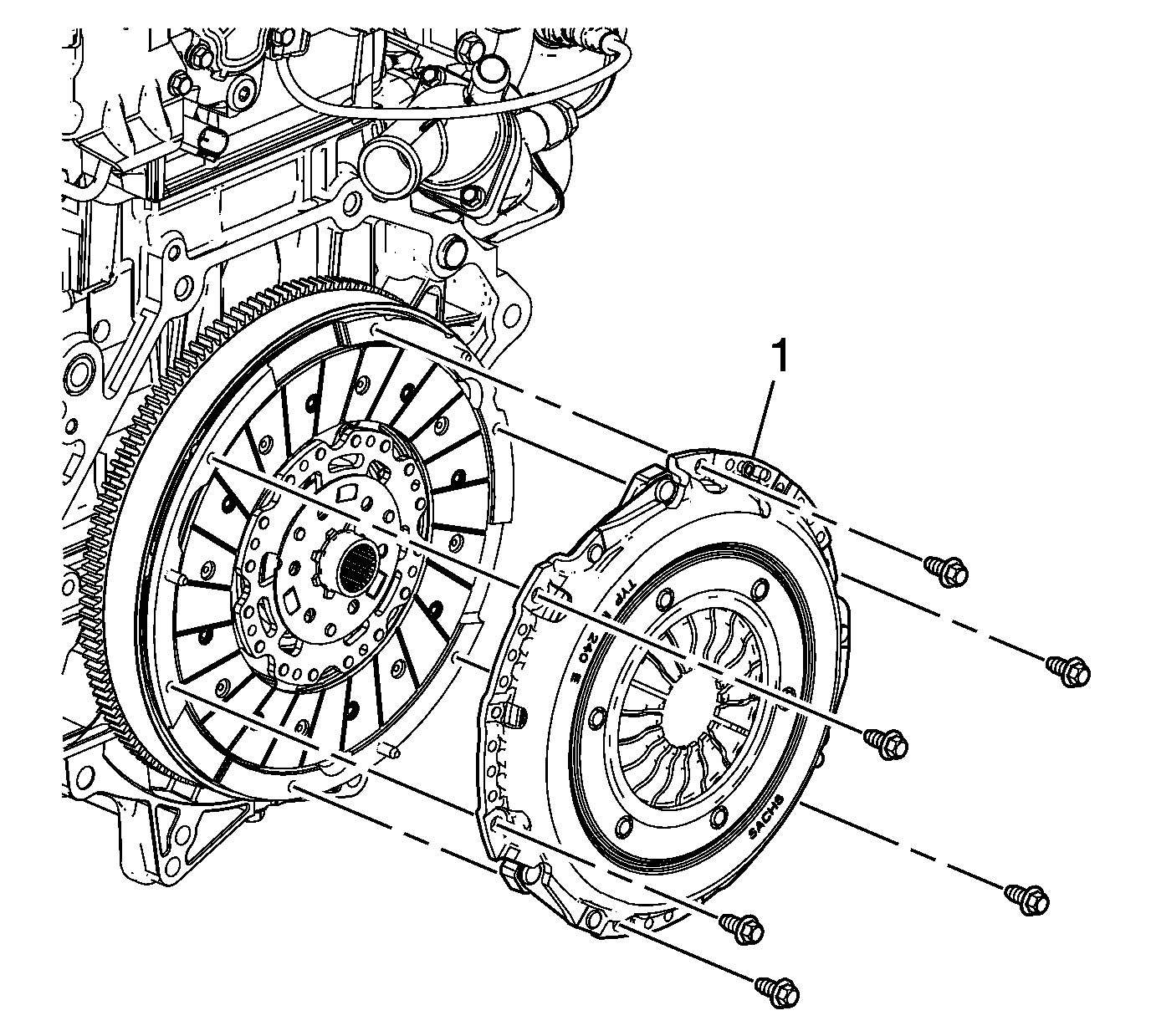

Fig 2: Clutch Pressure Plate And Bolts
Courtesy of GENERAL MOTORS COMPANY
2. Remove the clutch pressure plate bolts and clutch pressure plate (1).
Fig 3: Clutch Driven Plate
Courtesy of GENERAL MOTORS COMPANY
3. Remove the clutch driven plate (2).
4. Remove the flywheel attaching bolts.
5. Remove the flywheel (1).
6. Remove the pilot bearing.
7. Remove EN-43653  flywheel holding tool.
