Camshaft Cover Removal (LDK, LHU)

WARNING: This page is about a different variant/trim than selected.

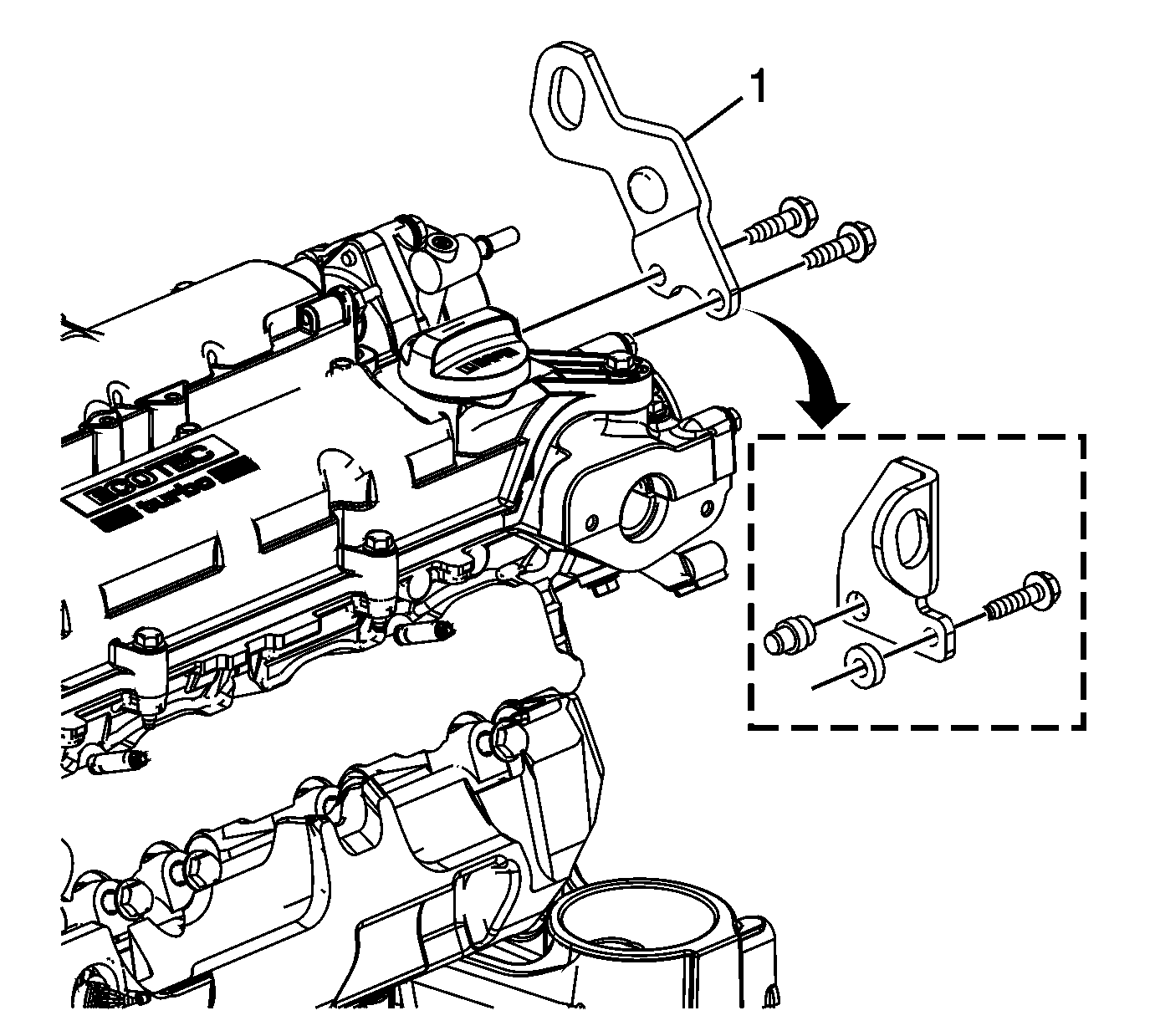

    Fig 1: Rear Lift Bracket And Bolts
    GM2074579Courtesy of GENERAL MOTORS COMPANY
  1. Remove the rear lift bracket bolts and rear lift bracket (1).

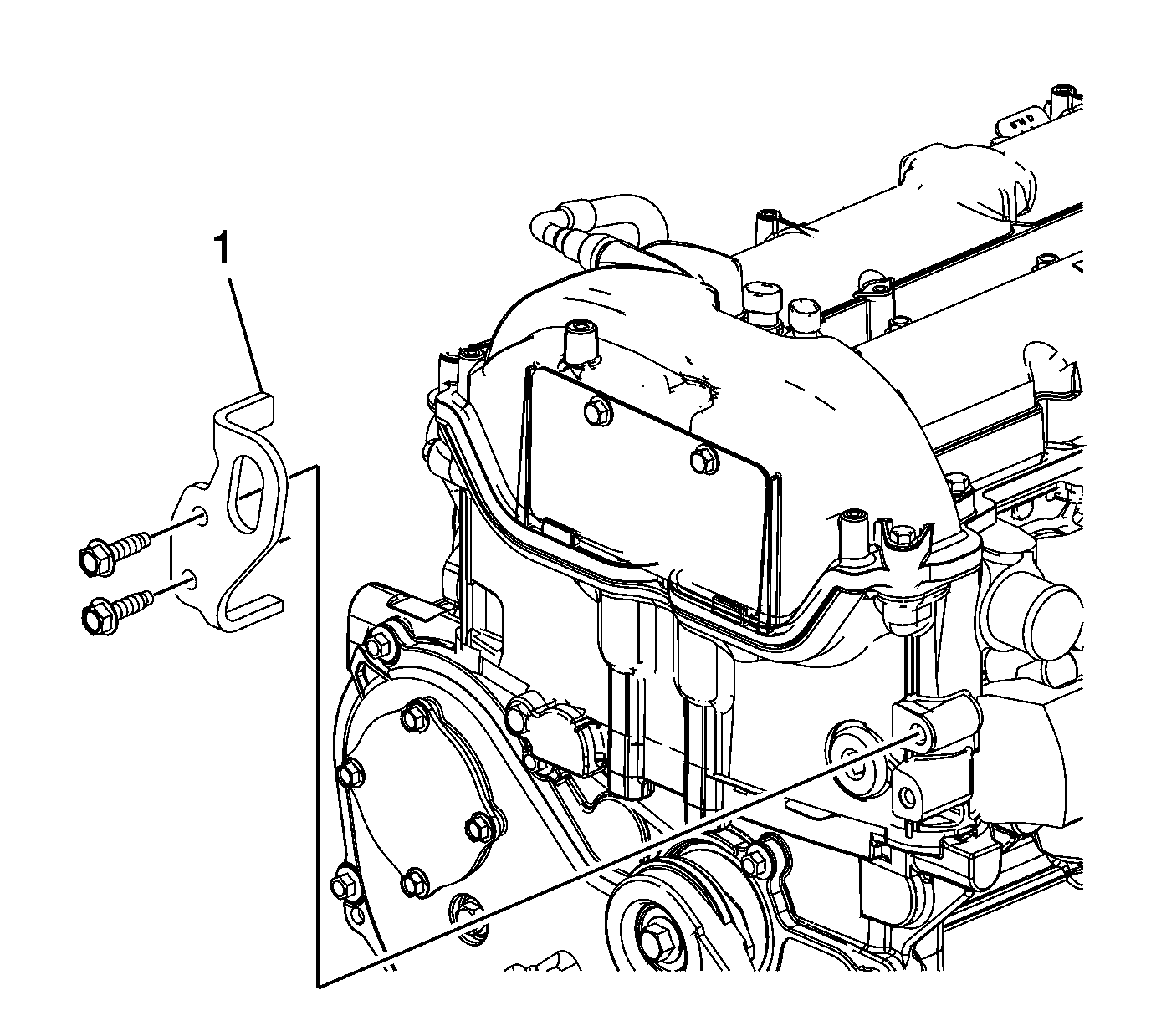

    2. Fig 2: Front Lift Bracket And Bolts
    GM2084182Courtesy of GENERAL MOTORS COMPANY
  2. Remove the front lift bracket bolts and front lift bracket (1).

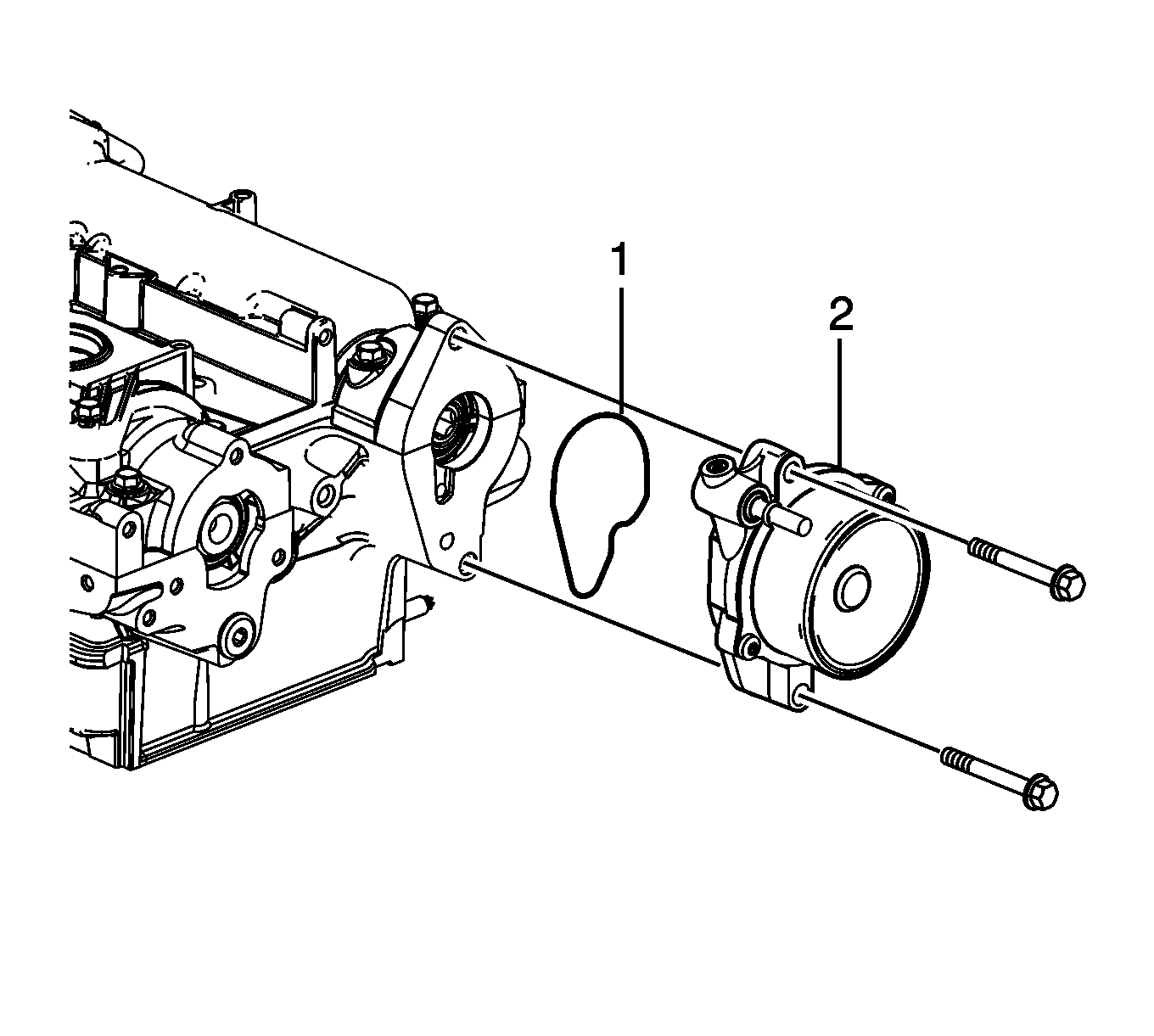

    3. Fig 3: Power Brake Booster Pump
    GM2074512Courtesy of GENERAL MOTORS COMPANY
  3. Remove the power brake booster pump bolts.
  4. Remove the power brake booster pump (2).
  5. Remove and discard the power brake booster O-ring seal (1).

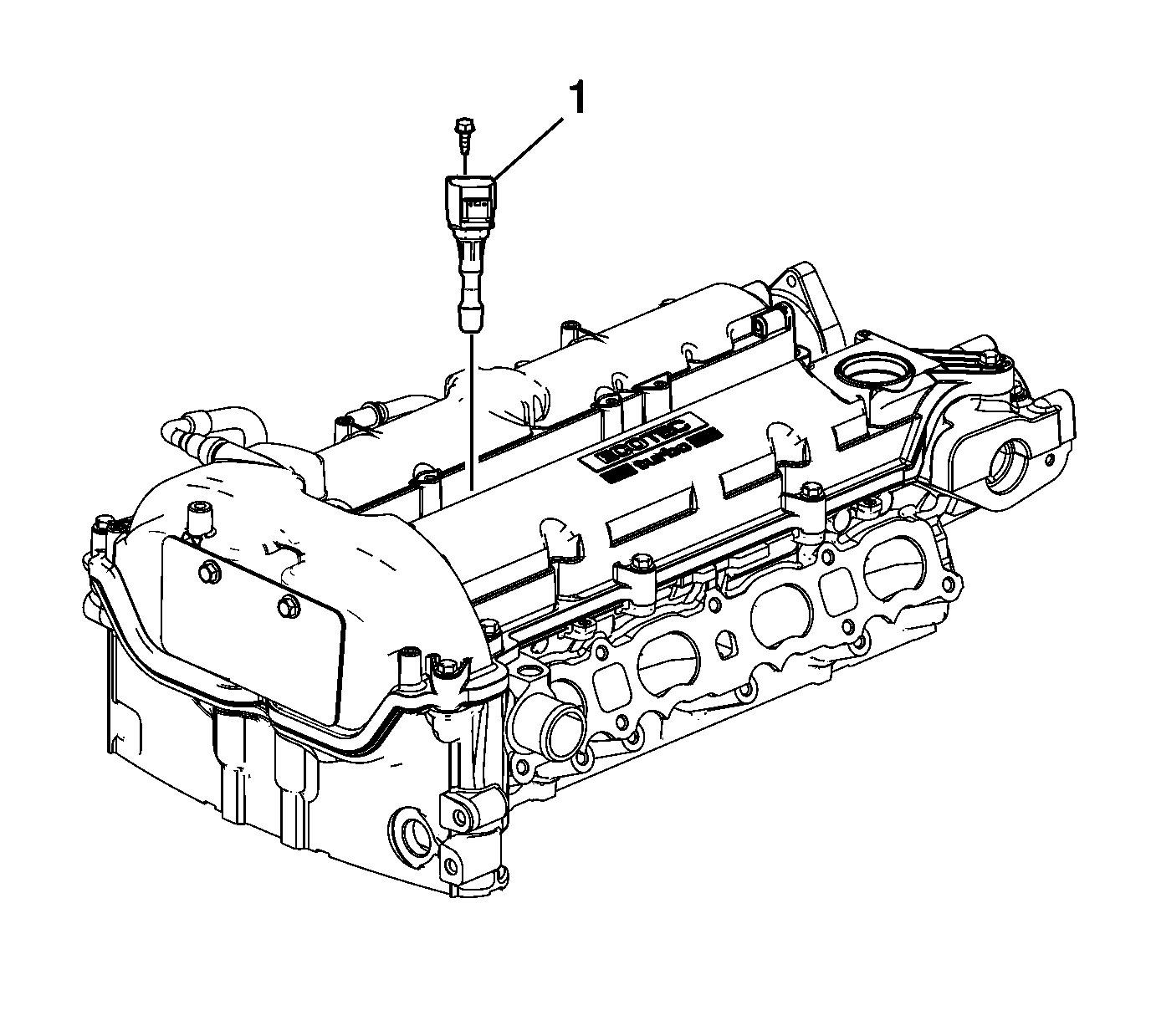

    6. Fig 4: Locating Bolt And Coil
    GM2074524Courtesy of GENERAL MOTORS COMPANY
  6. Remove the bolt and coil (1).

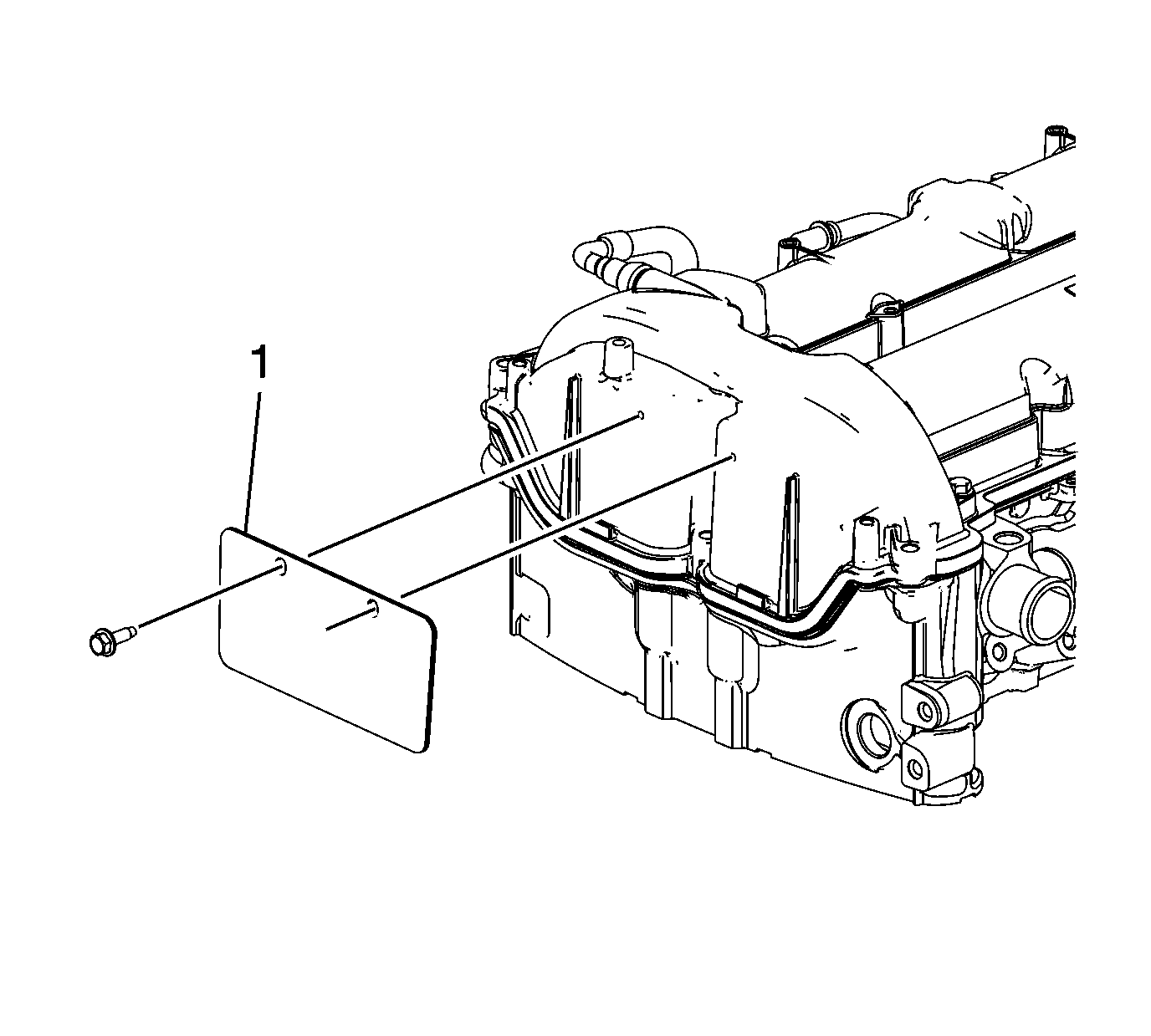

    7. Fig 5: Camshaft Housing Cover Insulator
    GM2074525Courtesy of GENERAL MOTORS COMPANY
  7. Remove the camshaft housing cover insulator bolts.
  8. Remove the camshaft housing cover insulator (1).

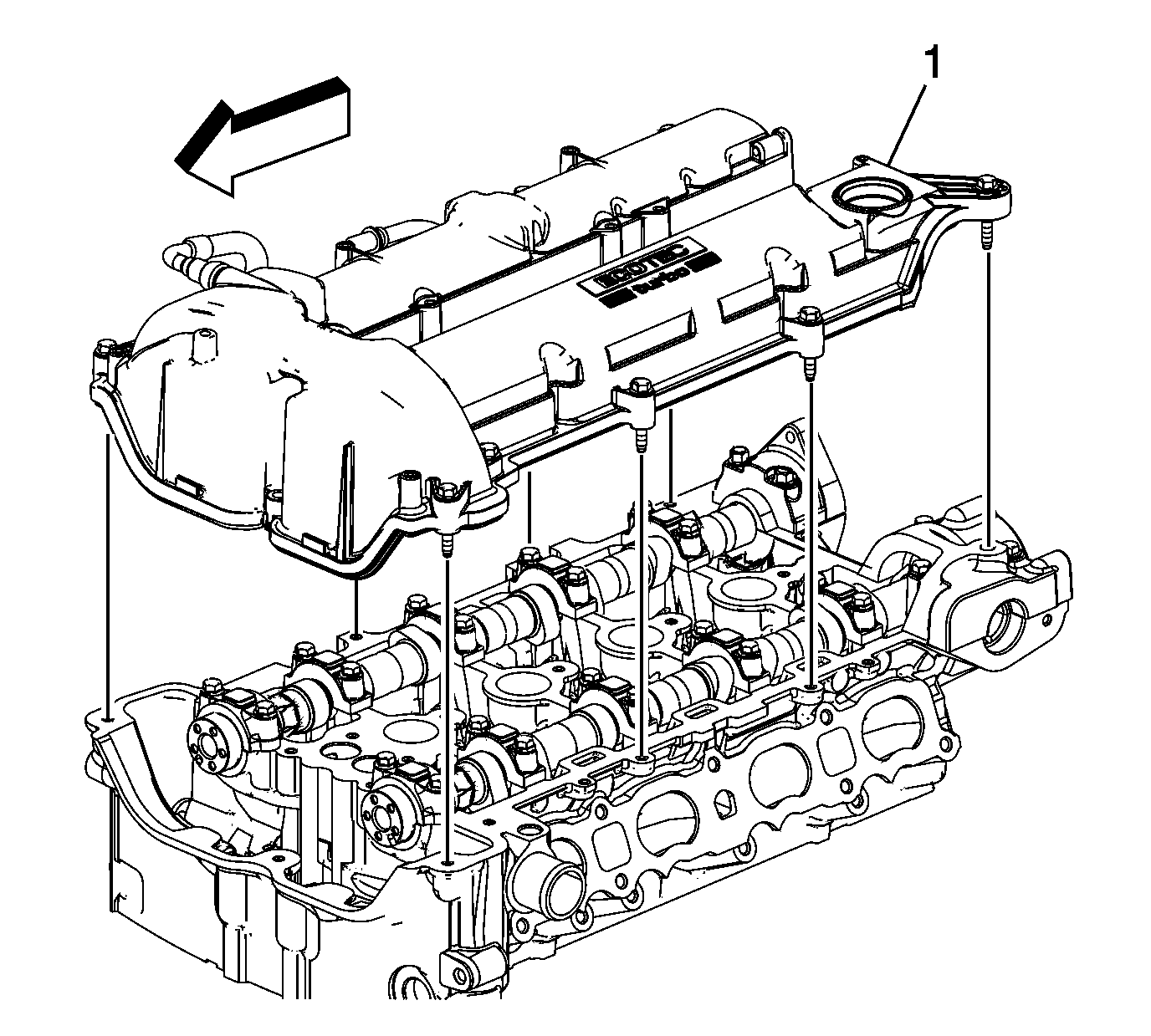

    9. Fig 6: Camshaft Cover Assembly
    GM2074528Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The PCV hose should not be disconnected from the camshaft cover. The PCV hose and the camshaft cover cannot be serviced individually.

  9. Remove the camshaft cover assembly (1).
  10. Remove and discard the camshaft cover gasket, camshaft cover grommets, and camshaft cover bolts if they are serviced with the grommets.
