Exhaust Manifold and Components

WARNING: This page is about a different variant/trim than selected.

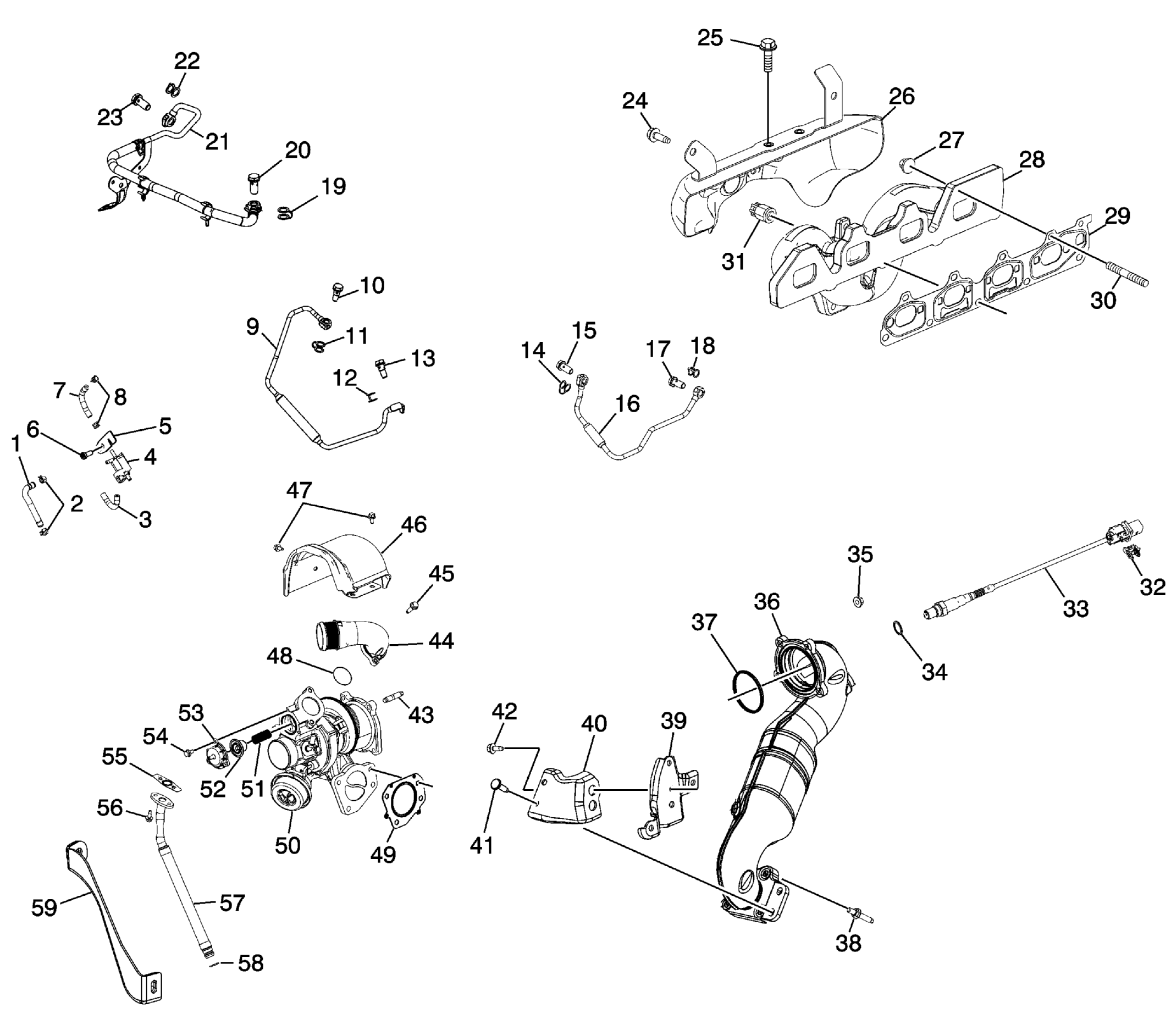

Fig 1: Exhaust Manifold and Components (LDK, LHU)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Turbocharger Wastegate Regulator Solenoid Hose
2	Turbocharger Wastegate Regulator Solenoid Hose Clamp
3	Turbocharger Wastegate Regulator Solenoid Hose
4	Turbocharger Wastegate Regulator Solenoid Valve Assembly
5	Turbocharger Wastegate Regulator Solenoid Valve Bracket
6	Turbocharger Wastegate Regulator Solenoid Valve Bracket Bolt/Screw
7	Turbocharger Wastegate Regulator Solenoid Hose
8	Turbocharger Wastegate Regulator Solenoid Hose Clamp
9	Turbocharger Oil Feed Pipe
10	Turbocharger Oil Feed Pipe Bolt
11	Turbocharger Oil Feed Pipe Gasket
12	Turbocharger Oil Feed Pipe Gasket
13	Turbocharger Oil Feed Pipe Bolt
14	Turbocharger Coolant Return Pipe Gasket
15	Turbocharger Coolant Return Pipe Bolt
16	Turbocharger Coolant Return Pipe
17	Turbocharger Coolant Return Pipe Bolt
18	Turbocharger Coolant Return Pipe Gasket
19	Turbocharger Coolant Feed Pipe Gasket
20	Turbocharger Coolant Feed Pipe Bolt
21	Turbocharger Coolant Feed Pipe
22	Turbocharger Coolant Feed Pipe Gasket
23	Turbocharger Coolant Feed Pipe Bolt
24	Exhaust Manifold Heat Shield Bolt
25	Exhaust Manifold Heat Shield Bolt
26	Exhaust Manifold Heat Shield
27	Exhaust Manifold Nut
28	Exhaust Manifold
29	Exhaust Manifold Gasket
30	Exhaust Manifold Stud
31	Exhaust Manifold Nut - Inverted Torx®
32	Oxygen Sensor Fastener
33	Oxygen Sensor
34	Oxygen Sensor Gasket
35	Catalytic Converter Nut
36	Catalytic Converter
37	Catalytic Converter Seal
38	Catalytic Converter Stud
39	Catalytic Converter Bracket
40	Catalytic Converter L-Bracket
41	Catalytic Converter Bolt
42	Catalytic Converter Bracket Bolt
43	Catalytic Converter Stud
44	Turbocharger Air Cooler Outlet Pipe
45	Turbocharger Air Cooler Outlet Pipe Bolt
46	Turbocharger Heat Shield
47	Turbocharger Heat Shield Bolts
48	Turbocharger Air Cooler Outlet Pipe Seal
49	Turbocharger Gasket
50	Turbocharger
51	Turbocharger Air Bypass Valve Spring
52	Turbocharger Air Bypass Diaphragm Assembly
53	Turbocharger Air Bypass Valve Cover
54	Turbocharger Air Bypass Valve Cover Bolt
55	Turbocharger Oil Return Pipe Gasket
56	Turbocharger Oil Return Pipe Bolt
57	Turbocharger Oil Return Pipe
58	Turbocharger Oil Return Pipe O-Ring
59	Turbocharger Brace
