Charge Air Bypass Valve Replacement
WARNING: This page is about a different variant/trim than selected.

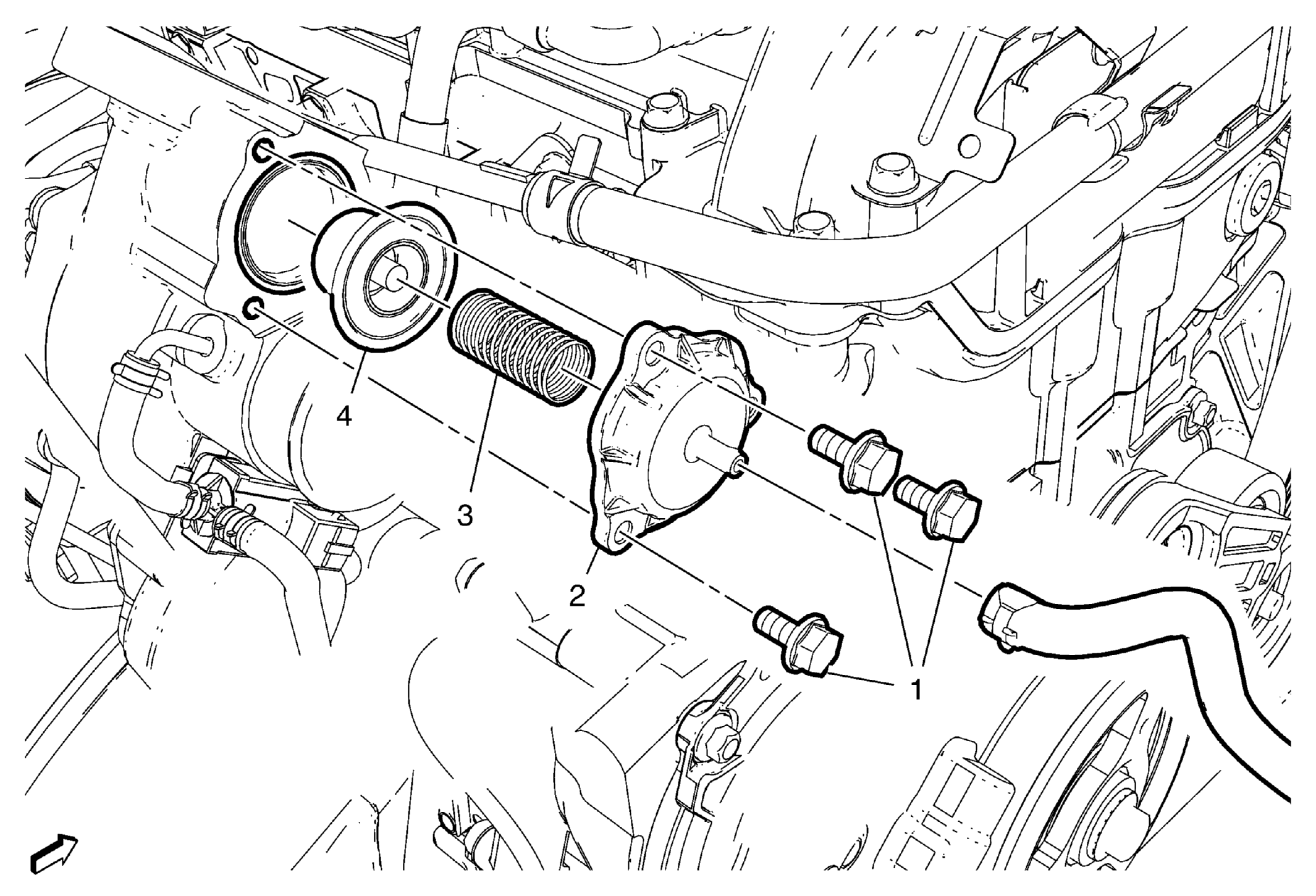

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . |
|
| 1 | Charge Air Bypass Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the vacuum hose. Tighten 10 N.m (89 lb in) |
| 2 | Charge Air Bypass Valve |
| 3 | Charge Air Bypass Valve Diaphragm Spring |
| 4 | Charge Air Bypass Valve |
