Removal Procedure

WARNING: This page is about a different variant/trim than selected.

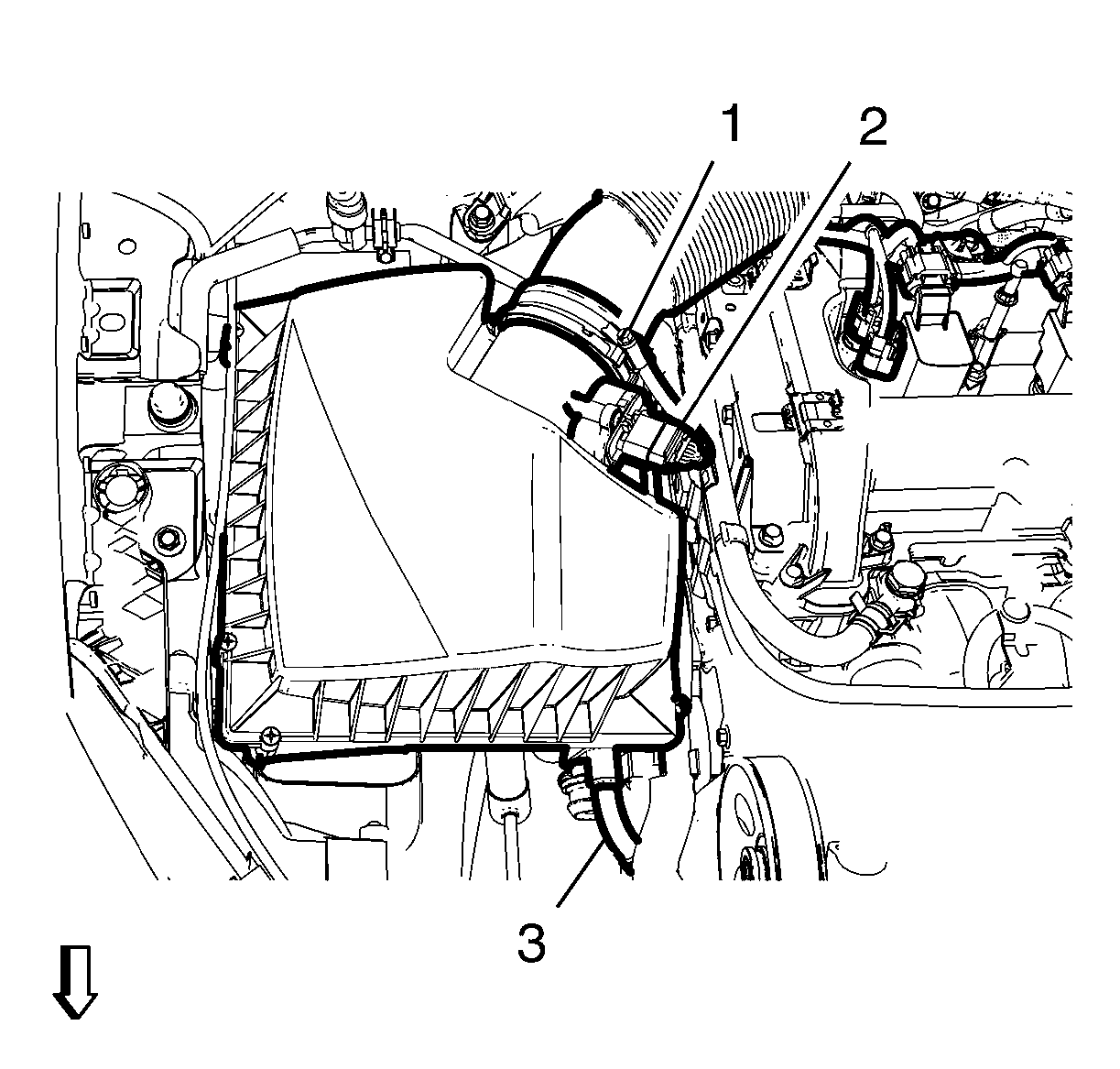

    Fig 1: MAF Sensor Wiring Harness Plug
    GM2699458Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the mass airflow sensor wiring harness plug (2).
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  3. Unclip the drain hose (3), if equipped.

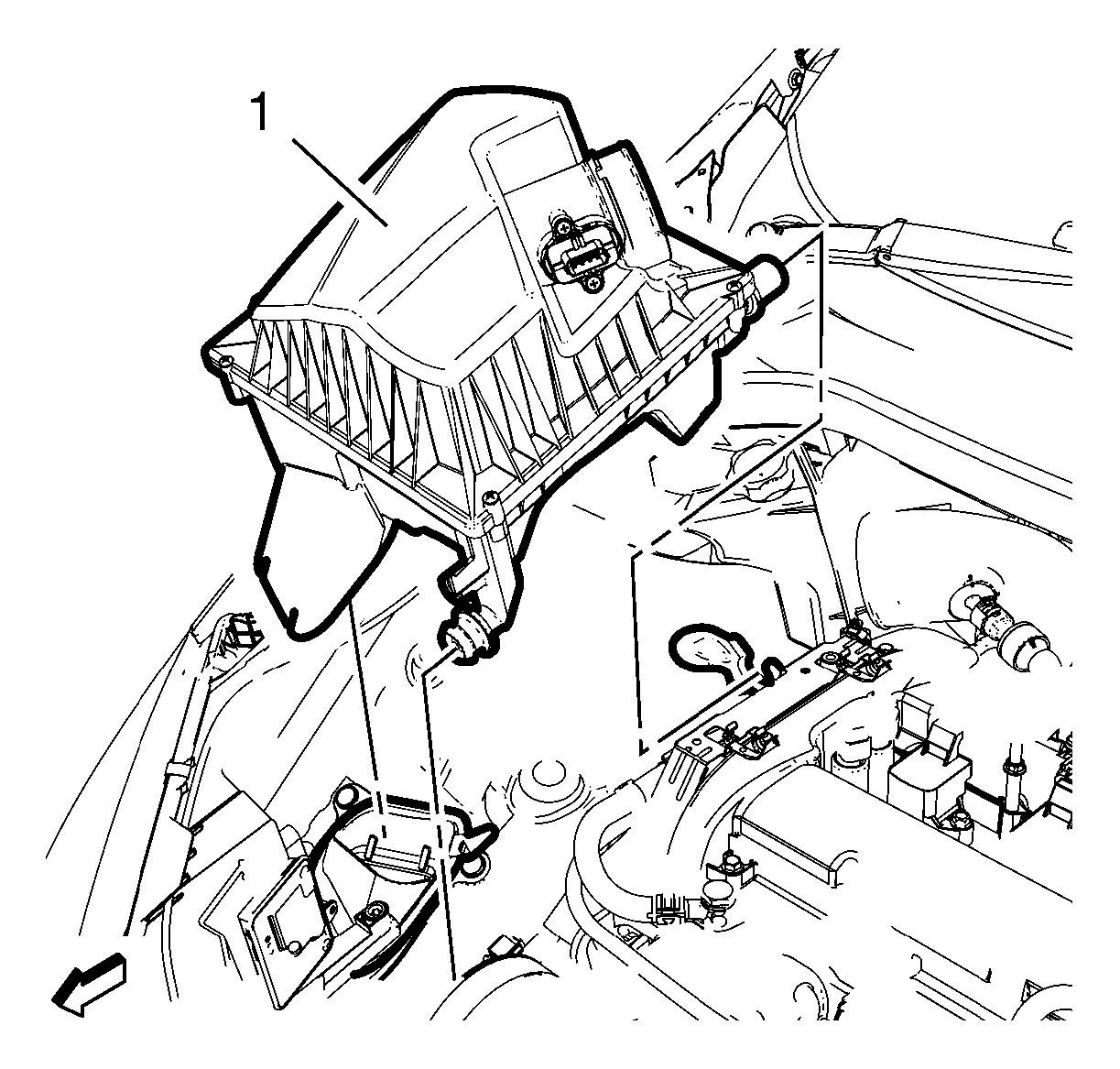

    4. Fig 2: Air Cleaner Assembly
    GM2699459Courtesy of GENERAL MOTORS COMPANY
  4. Remove the air cleaner assembly (1).
