Rear Output Shaft Seal Replacement

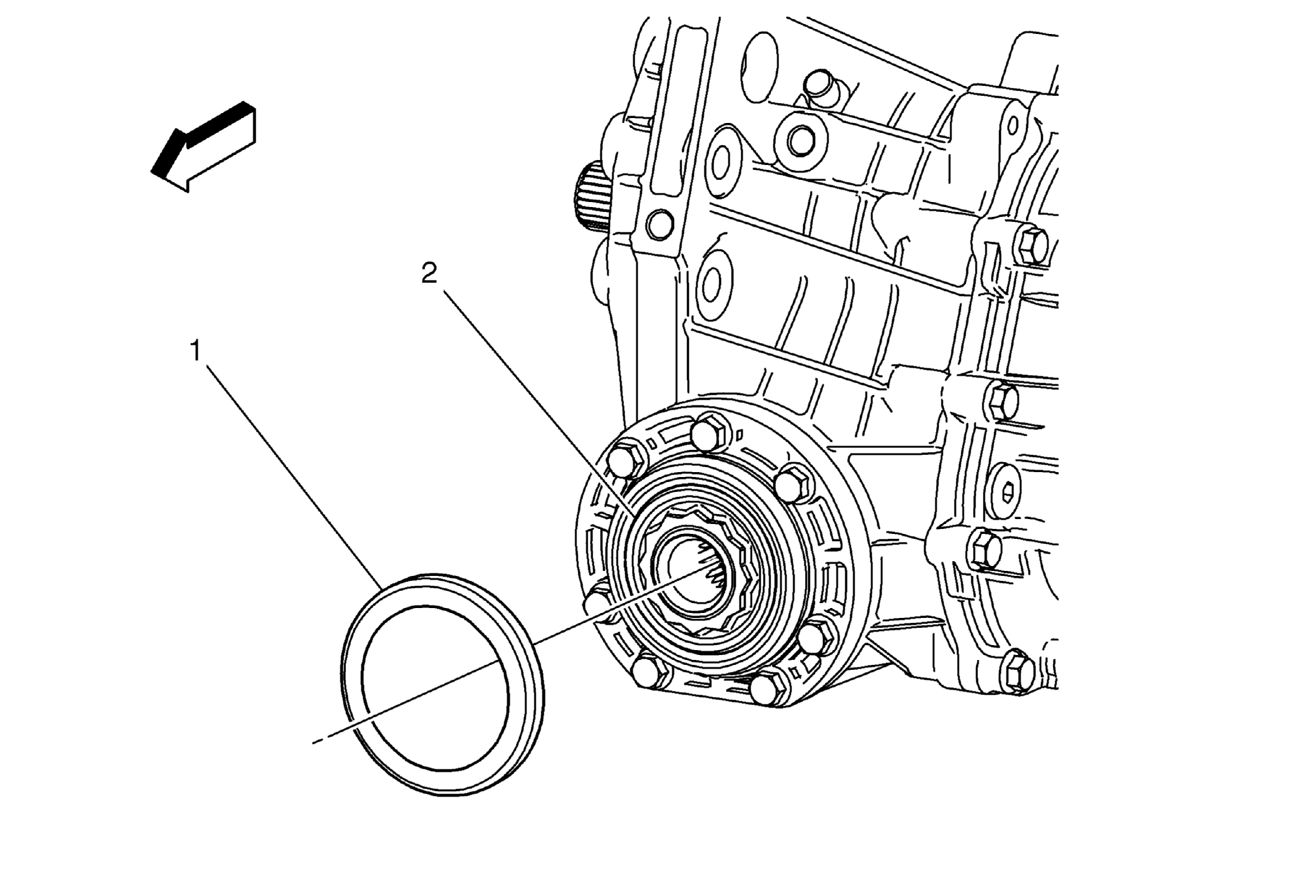

Fig 1: Rear Output Shaft Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the propeller shaft. Refer to Propeller Shaft Replacement . Drain the transfer case fluid. Refer to Transfer Case Fluid Replacement .
1	Dust Shield Procedure Install the dust shield using DT-49095 installer. Special Tools DT-49095 Seal Installer For equivalent regional tools, refer to Special Tools .
2	Rear Output Shaft Seal Procedure Install the shaft seal using DT-49097 installer and DT-49061 cone. Special Tools DT-49061 Entry Cone DT-49097 Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Remove the propeller shaft. Refer to Propeller Shaft Replacement .
Drain the transfer case fluid. Refer to Transfer Case Fluid Replacement .

Dust Shield
Procedure
Install the dust shield using DT-49095 installer.
Special Tools
DT-49095 Seal Installer
For equivalent regional tools, refer to Special Tools .

Rear Output Shaft Seal
Procedure
Install the shaft seal using DT-49097 installer and DT-49061 cone.

Special Tools

DT-49061 Entry Cone
DT-49097 Seal Installer

For equivalent regional tools, refer to Special Tools .
