Fluid Cooler Inlet Hose Replacement (MHH)

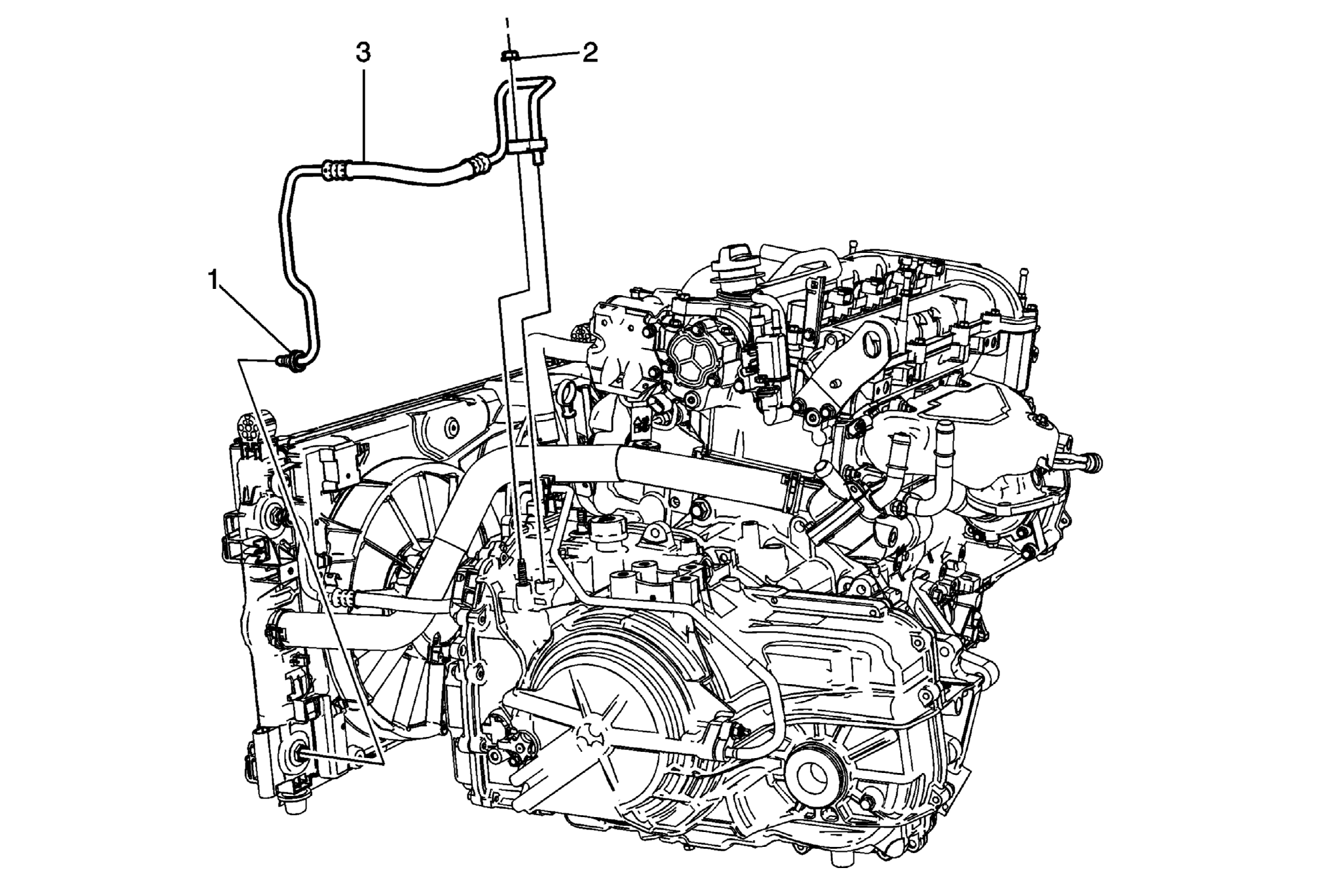

Fig 1: Fluid Cooler Inlet Pipe & Components (MHH)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fluid Cooler Inlet Hose Quick Disconnect Procedure Remove and discard the sealing washer. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (MHH, MHK) .
2	Fluid Cooler Inlet Hose Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
3	Fluid Cooler Inlet Hose Procedure Note the routing of the transmission line to ensure proper installation. Remove the transmission line from the clips securing the line to the transmission and fan shroud. Inspect the transmission fluid level. Refer to Transmission Fluid Level and Condition Check .
