Installation Procedure
- Raise the transmission with the transmission jack and position the transmission to the engine.
- Remove the transmission jack.
- Install the front transmission bolts (1) and tighten to 75 N.m (55 lb ft).
- Install the rear transmission bolts (1) and tighten to 75 N.m (55 lb ft).
- Install the torque converter to flywheel bolts and tighten to 62 N.m (46 lb ft).
- Install the catalytic converter to the engine. Refer to Catalytic Converter Replacement (LUK, LEA) .
- Install the starter. Refer to Starter Replacement (LEA, LUK) .
- Install the front transmission mount to the transmission. Refer to Transmission Front Mount Replacement .
- Install the rear transmission mount to the transmission. Refer to Transmission Rear Mount Replacement (FWD) .
- Install the left transmission mount to the transmission. Refer to Transmission Mount Replacement - Left Side .
- Install the transfer case. Refer to Transfer Case Replacement .
- Install the left wheel drive shafts to the transmission. Refer to Front Wheel Drive Shaft Replacement (GNB/GNA) .
- Install the right wheel drive shaft from the transmission. Refer to Front Wheel Drive Shaft Replacement - Right Side .
- Install the frame. Refer to Drivetrain and Front Suspension Frame Replacement .
- Install the upper transmission to engine bolts (1,2,3) and tighten to 75 N.m (55 lb ft).
- Remove the engine support fixture.

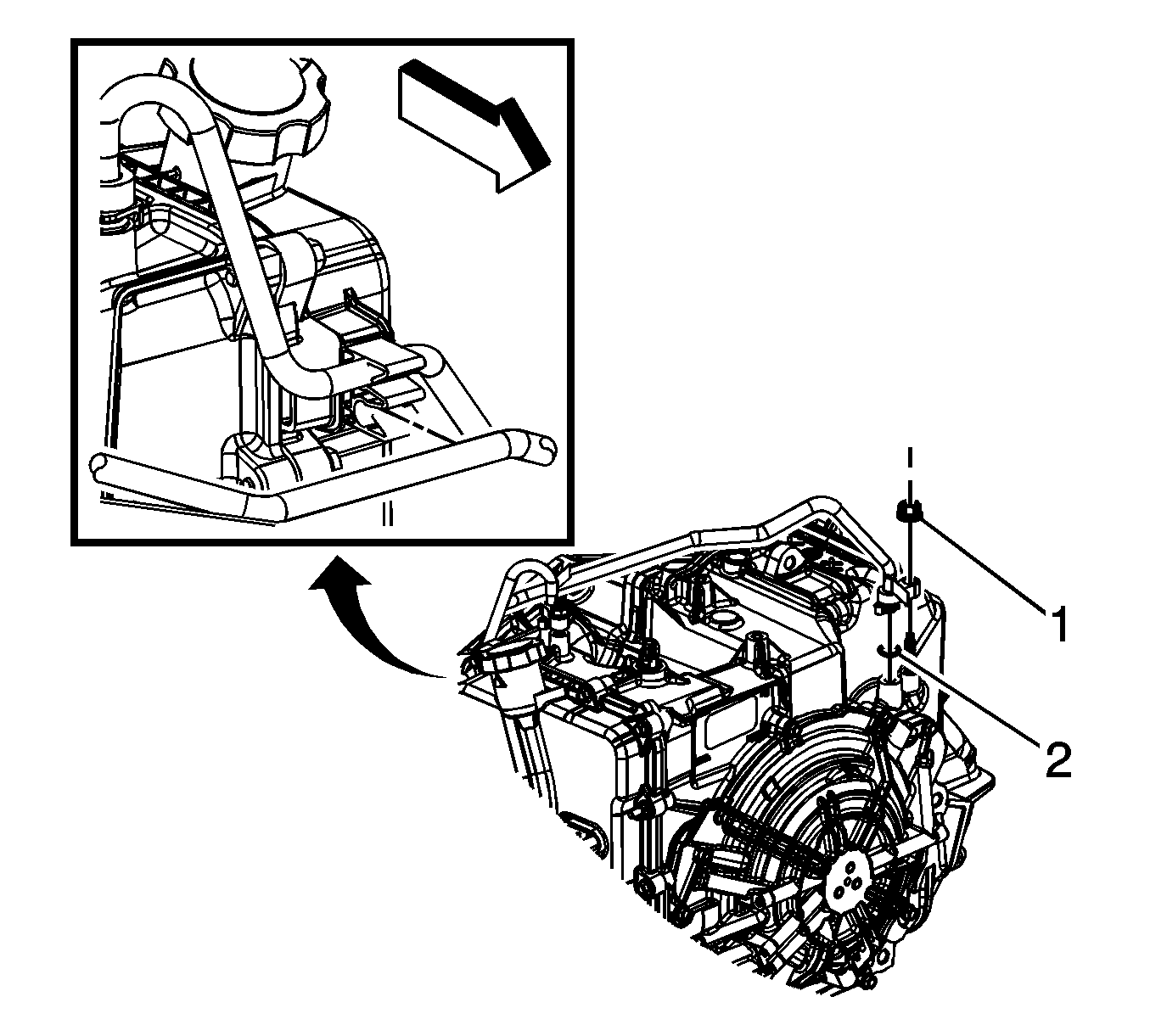

- Install the transmission fluid cooler outlet hose and seal (2) to the transmission.
- Install the transmission fluid cooler pipe retainer nut (1) and tighten to 22 N.m (16 lb ft).

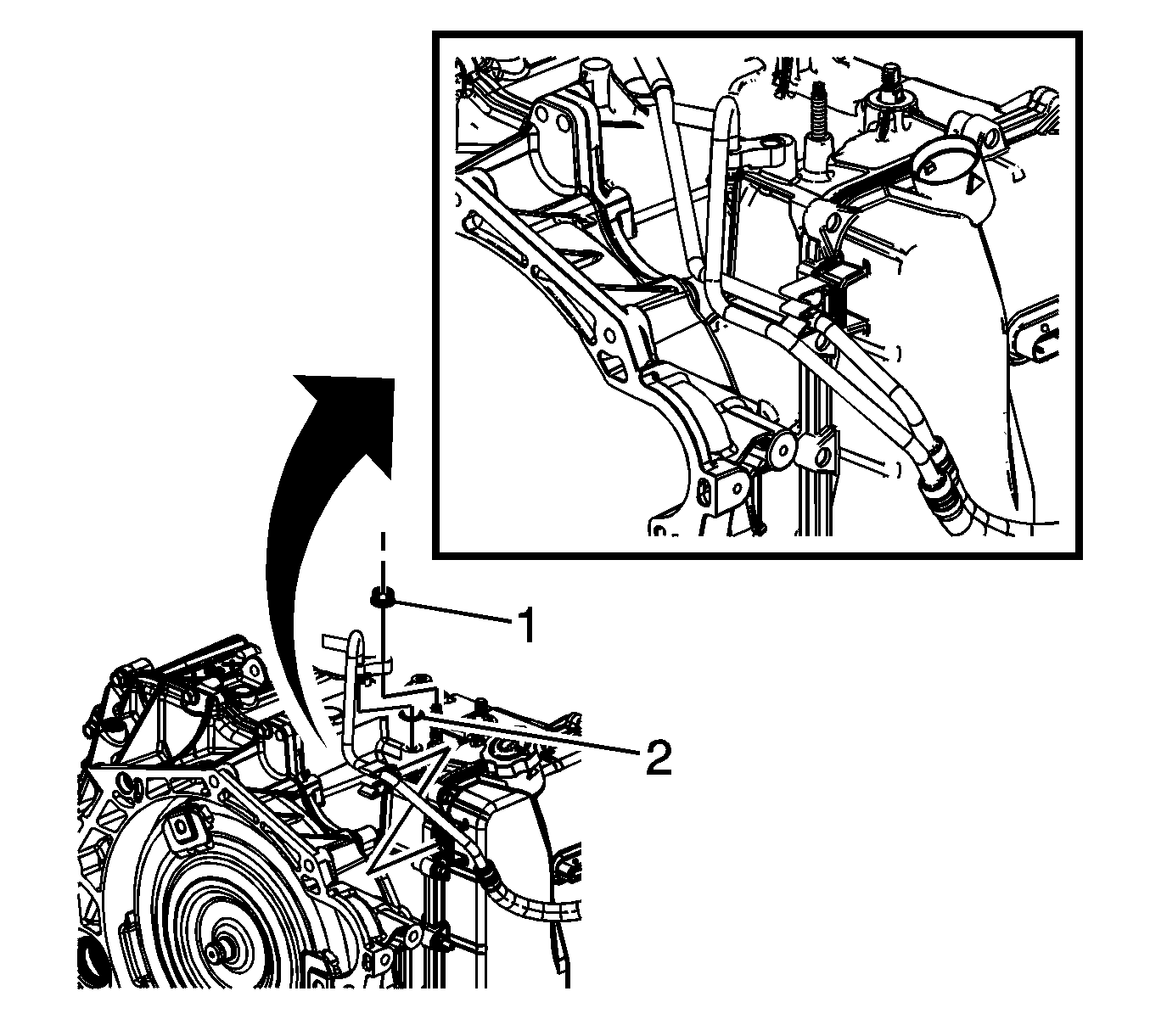

- Install the transmission fluid cooler inlet hose and seal (2) to the transmission.
- Install the transmission fluid cooler pipe retainer nut (1) and tighten to 22 N.m (16 lb ft).
- Connect the control valve body TCM electrical connector (1).
- Install the wire harness retainer (2) to the control valve body cover stud and tighten the nut to 12 N.m (106 lb in).
- Install the transmission range select lever cable and bracket.
- Install the battery tray. Refer to Battery Tray Replacement .
- Adjust the automatic transmission range selector lever cable. Refer to Range Selector Lever Cable Adjustment .
- Fill the transmission with fluid. Refer to Transmission Fluid Drain and Fill .
- If a NEW TCM has been installed into the vehicle, the NEW module needs to be reprogrammed. Refer to Service Programming System (SPS) Description .
- Transmission internal service/overhaul
- Valve body repair or replacement
- Control solenoid valve assembly replacement
- TCM software/calibration update
- Any service in response to a shift quality concern
- Perform the Reset Transmission Adapts. Refer to Reset Transmission Adapts .
- Road test the vehicle.
CAUTION:
Refer to Fastener Caution .
NOTE:
If reusing the torque converter bolts, clean the threads and apply threadlocker to the threads prior to installation. Refer to Adhesives, Fluids, Lubricants, and Sealers for the recommended threadlock material.
NOTE:
The Reset Transmission Adapts procedure must be performed when one of the following repairs have been made to the vehicle. Failure to perform the procedure after one of the following repairs may result in poor transmission performance, as well as transmission DTCs being set:
