Installation Procedure

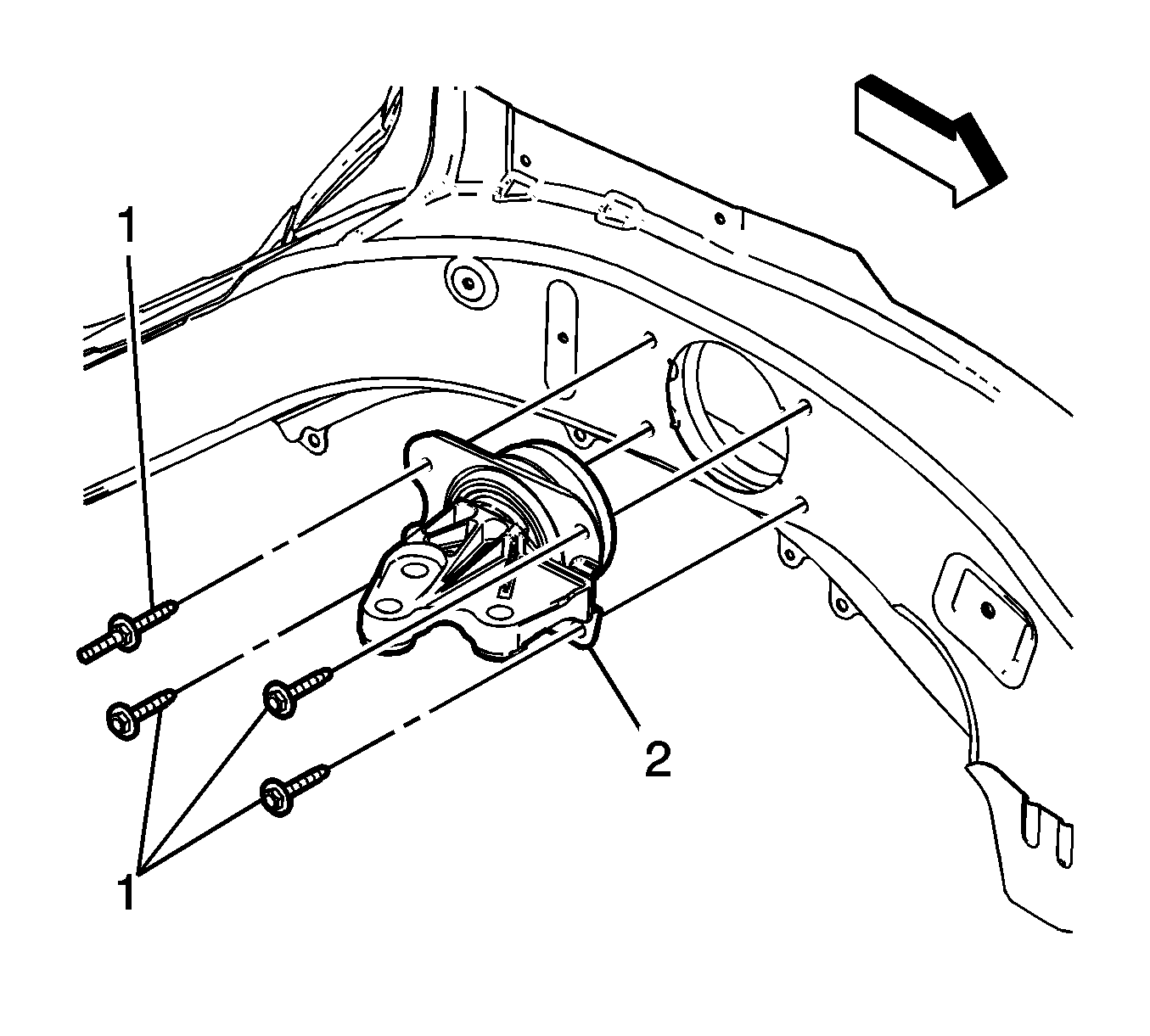

Fig 1: Left Transmission Mount
GM3232305Courtesy of GENERAL MOTORS COMPANY
  1. Install the left transmission mount (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the transmission mount to frame rail fasteners (1) and tighten to 22 N.m (16 lb ft).
  3. If applicable, connect the wiring harness to the frame rail fastener stud.
  4. Using the engine support, raise the transmission until the transmission contacts the left transmission mount.

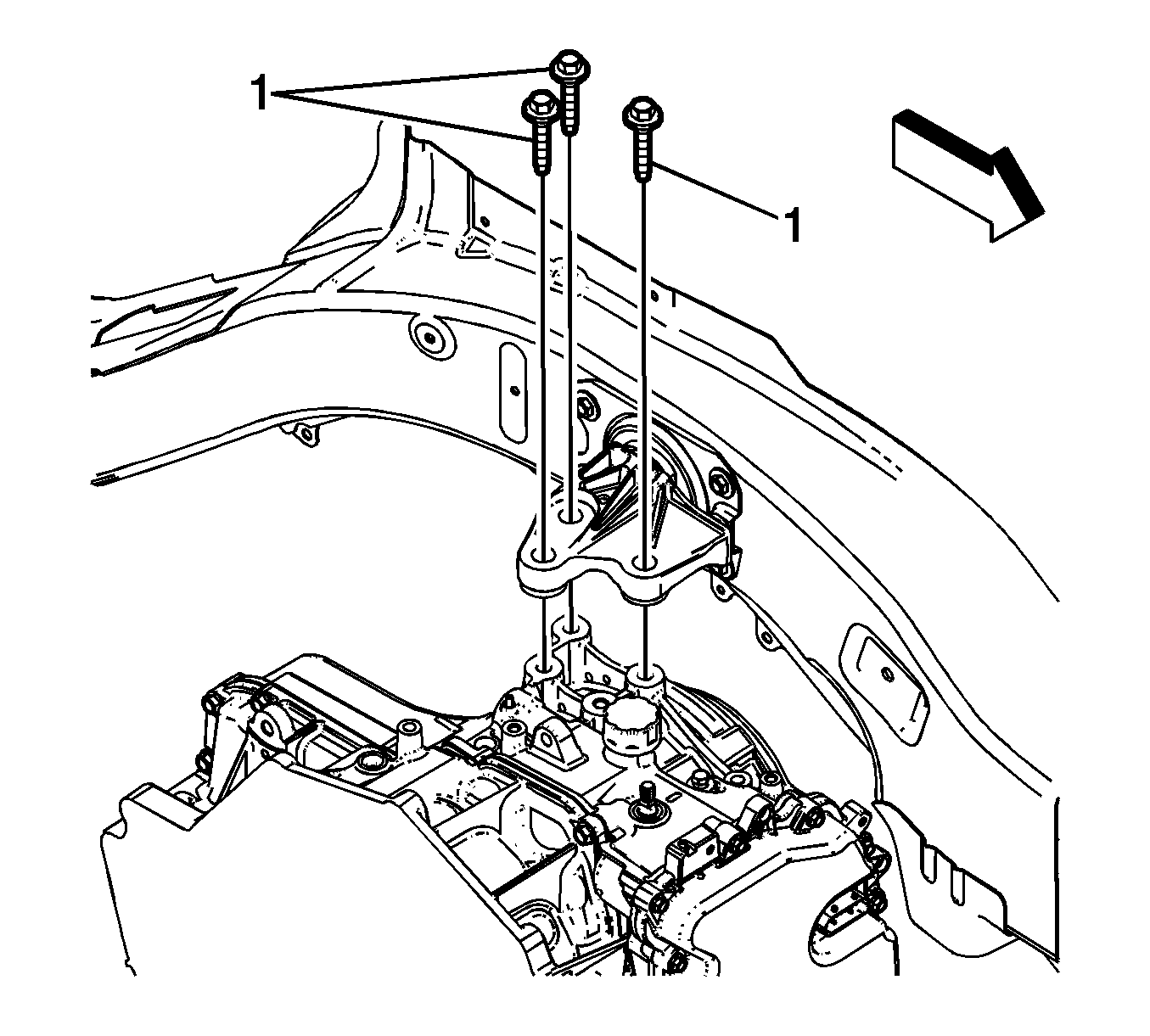

    5. Fig 2: Left Transmission Mount To Transmission Bolts
    GM2068583Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    DO NOT reuse the old bolts. Always use NEW bolts when reinstalling the mount.

  5. Install the NEW transmission mount to transmission fasteners (1) and tighten to 50 N.m (37 lb ft) plus 90-105 degrees.
  6. Raise the vehicle.

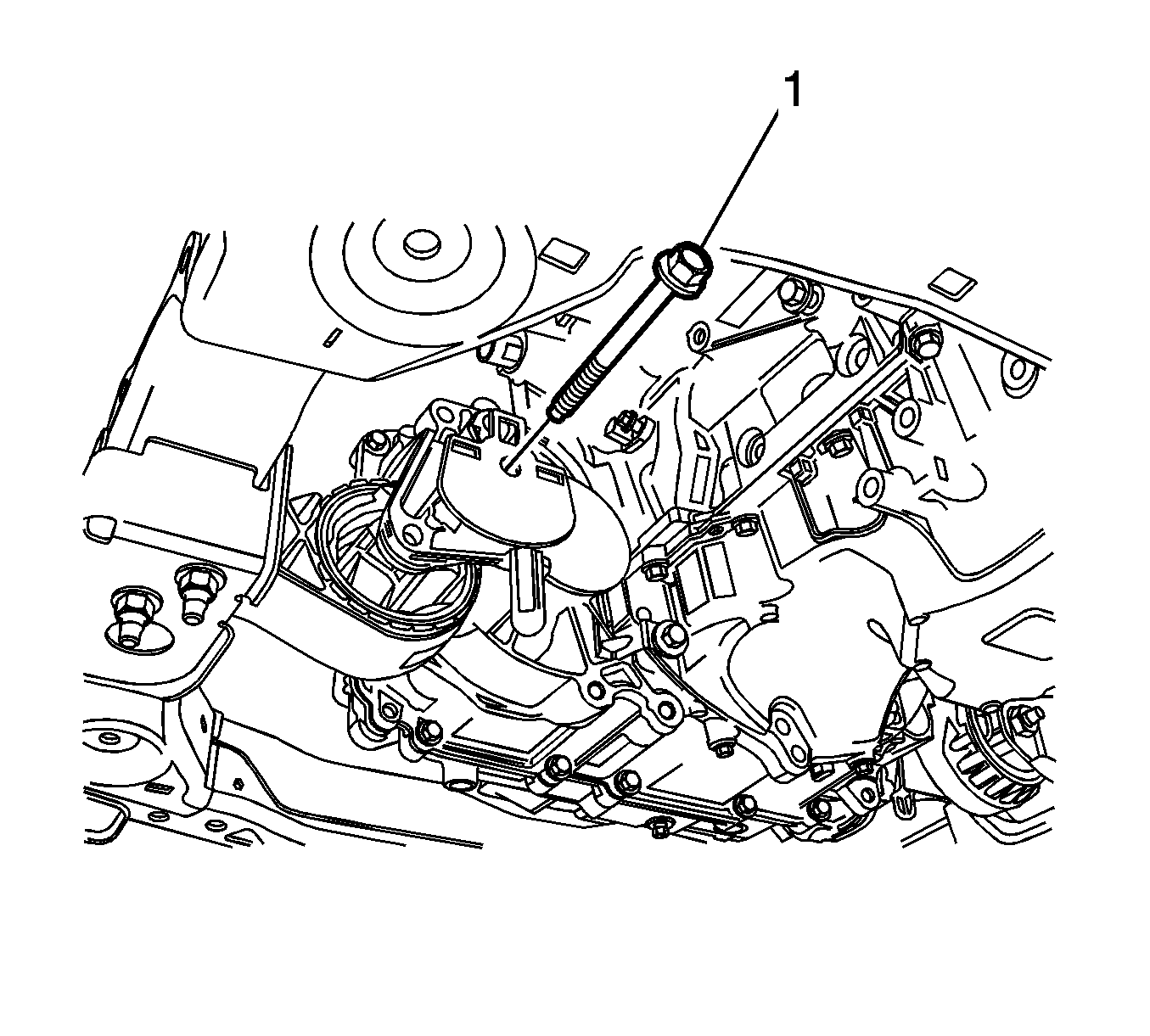

    7. Fig 3: Rear Transmission Mount Through Bolt
    GM2199347Courtesy of GENERAL MOTORS COMPANY
  7. Install the rear transmission mount through fastener (1) and tighten to 105 N.m (77 lb ft).
    8. Fig 4: Identifying Front Transmission Mount Through Bolt
    GM2199369Courtesy of GENERAL MOTORS COMPANY
  8. Install the front transmission mount through fastener (1) and tighten to 100 N.m (74 lb ft).
  9. Lower the vehicle.
  10. Remove the engine support fixture.
  11. Install the battery box. Refer to Battery Tray Replacement .
