Torque Converter Fluid Seal Replacement

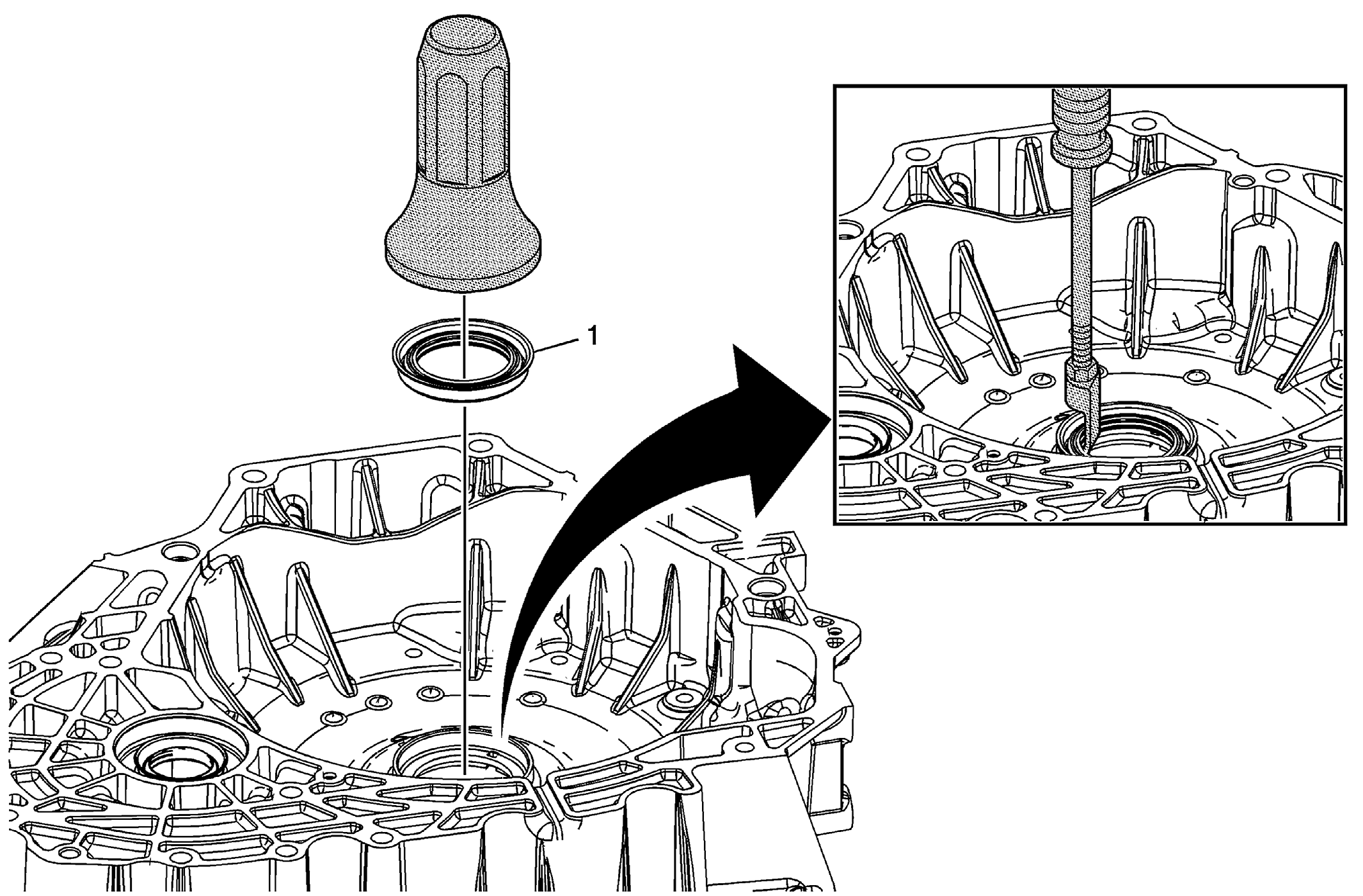

Fig 1: Identifying Torque Converter Fluid Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the transmission torque converter. Refer to Torque Converter Replacement .
1	Torque Converter Fluid Seal CAUTION: Support the back side of the torque converter housing while installing the seal. Install the seal until it stops moving. Applying excessive pressure to the seal once it is seated could cause damage to the torque converter housing casting. Special Tools<!--Title--> DT23129 Universal Seal Remover DT49861 Seal Installer GE6125-1B Slide Hammer with Adapter or equivalent For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the transmission torque converter. Refer to Torque Converter Replacement .

Torque Converter Fluid Seal

CAUTION:

Support the back side of the torque converter housing while installing the seal. Install the seal until it stops moving. Applying excessive pressure to the seal once it is seated could cause damage to the torque converter housing casting.

Special Tools

DT23129 Universal Seal Remover
DT49861 Seal Installer
GE6125-1B Slide Hammer with Adapter or equivalent

For equivalent regional tools, refer to Special Tools .
