Special Tools
| Illustration | Tool Number/Description |
|---|---|
| DT3289-20 J3289-20 KM-113-2-A Holding Fixture |
|
| DT8433-1 J8433-1 Puller Bar |
|
| DT21366 J21366 Converter Holding Strap |
|
| DT21867-A J21867-A Pressure Gauge |
|
| DT22912-B J22912-B Split Plate Bearing Remover |
|
| DT23129 J23129 KM-586 Universal Seal Remover |
|
| DT23444-A J23444-A Extreme Press Lubricant-1/4 Ounce Tube |
|
| DT28585 J28585 Snap Ring Remover |
|
| DT39068 J39068 Valve Body Guide Pins(3) |
|

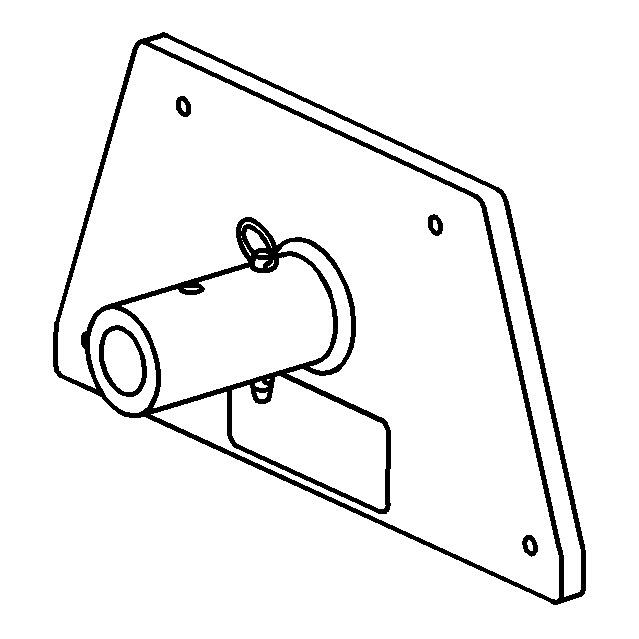

| DT39890 J39890 Holding Fixture Adapter |
|
| DT41229 J41229 Manual Shaft Pin Installer |
|
| DT41816 J41816 Three Legged Puller |
|
| DT41816-2 J41816-2 Crankshaft End Protector |
|
| DT45087 J45087 Bearing Cup Installer |
|
| DT45087-A Bearing Cup Installer |
|
| DT45094 J45094 Bearing Cup Remover |
|

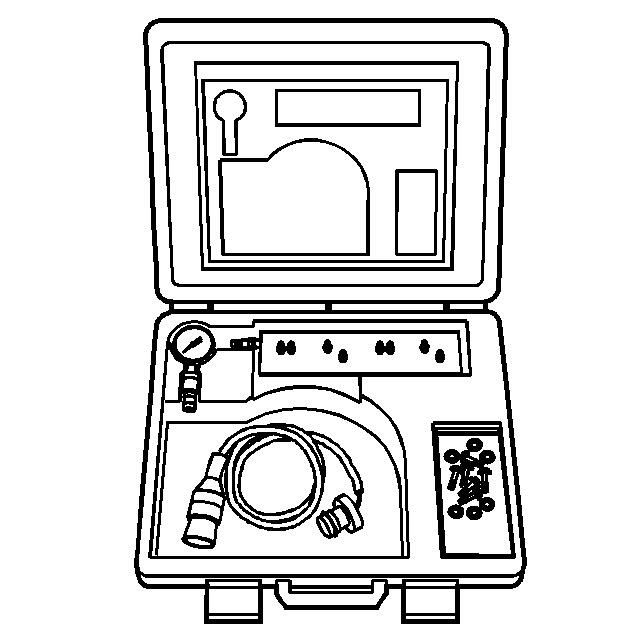

| DT45096 J45096 Transmission Oil Cooling System Flush and Flow Test Tool |
|
| DT45096-50 J45096-50 Transmission Cooler Flush Adapter |
|
| DT45124 J45124 Removal Bridge |
|
| DT45201 DT48203 J45201 Cooler Line Seal Remover |
|
| DT45341 J45341 Rear Wheel Drive Shaft Removal Tool |
|
| DT46409 J46409 KM-922 Torque Converter Lifting Handles |
|
| DT46620 J46620 Seal Installer |
|
| DT46621 J46621 Piston Seal Protector |
|
| DT46622 J46622 Piston Seal Protector |
|
| DT46623 J46623 Piston Seal Protector |
|
| DT46624 J46624 Seal Installer |
|
| DT46625 J46625 Transmission Holding Fixture |
|
| DT46626 J46626 Seal Installer |
|
| DT46627-A J46627-A Seal Installer |
|
| DT46628-1 J46628-1 Piston Seal Protector |
|
| DT46628-2 J46628-2 Spring Compressor |
|
| DT46629-A J46629-A Seal Installer |
|
| DT46630 J46630 Lube Dam Installer |
|
| DT46632 J46632 Spring Compressor |
|
| DT47693 Dam Protector |
|
| DT47694 Piston Spring Compressor |
|
| DT47734 Speed Sensor Harness Tether |
|
| DT47793 Differential Rotating Tool |
|
| DT47800 Shim Selection Gauge |
|
| DT47811-A Lift Plate |
|
| DT47825 Control Solenoid Test Plate |
|

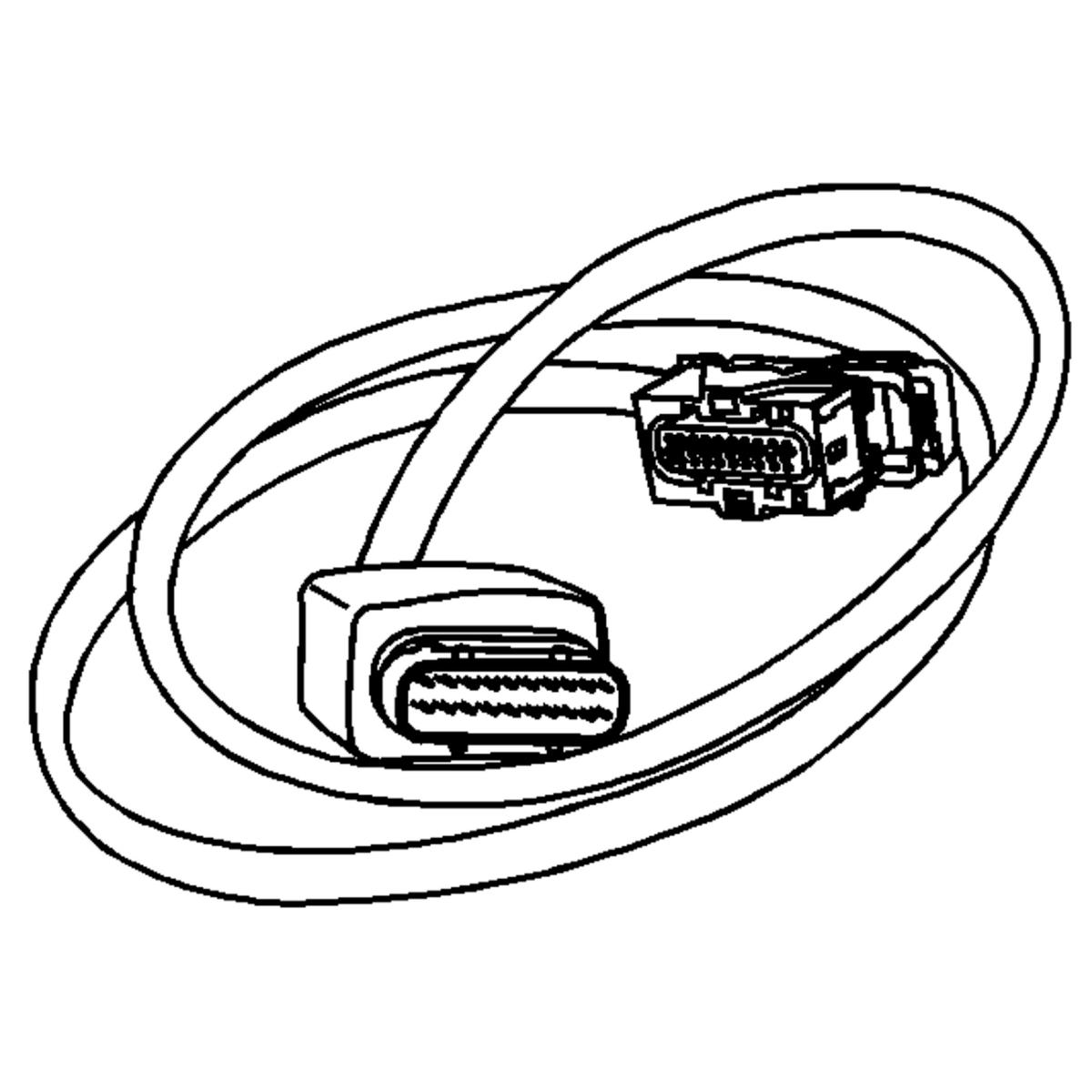

| DT47825-20 Adapter Harness |
|
| DT47825-100 Solenoid Test Plate |
|
| DT47859 Piston Outer Seal Protector |
|
| DT47927 Bearing Cup Remover |
|
| DT47928 Bearing Installer |
|
| DT48055 Lube Dam Remover |
|
| DT48056 Spring Compressor Bridge |
|
| DT48551 Reaction Hub Bushing Protector |
|
| DT49131 Seal Staking Tool |
|
| DT49861 Seal Installer |
|
| EL35616 J35616 GM-Approved Terminal Test Kit |
|
| EL38522 J38522 Variable Signal Generator |
|
| EN45059 J45059 Angle Meter |
|
| GE6125-1B J6125-1B J6125-B KM-J-7004 Slide Hammer with Adapter |
|
| GE8059 J8059 KM-396 Snap Ring Plier-Parallel Jaw |
|
| GE8092 J8092 KM-J-8092 Driver Handle |
