Removal Procedure

  1. Set the park brake and chock the wheels.
  2. Remove the battery tray. Refer to Battery Tray Replacement .

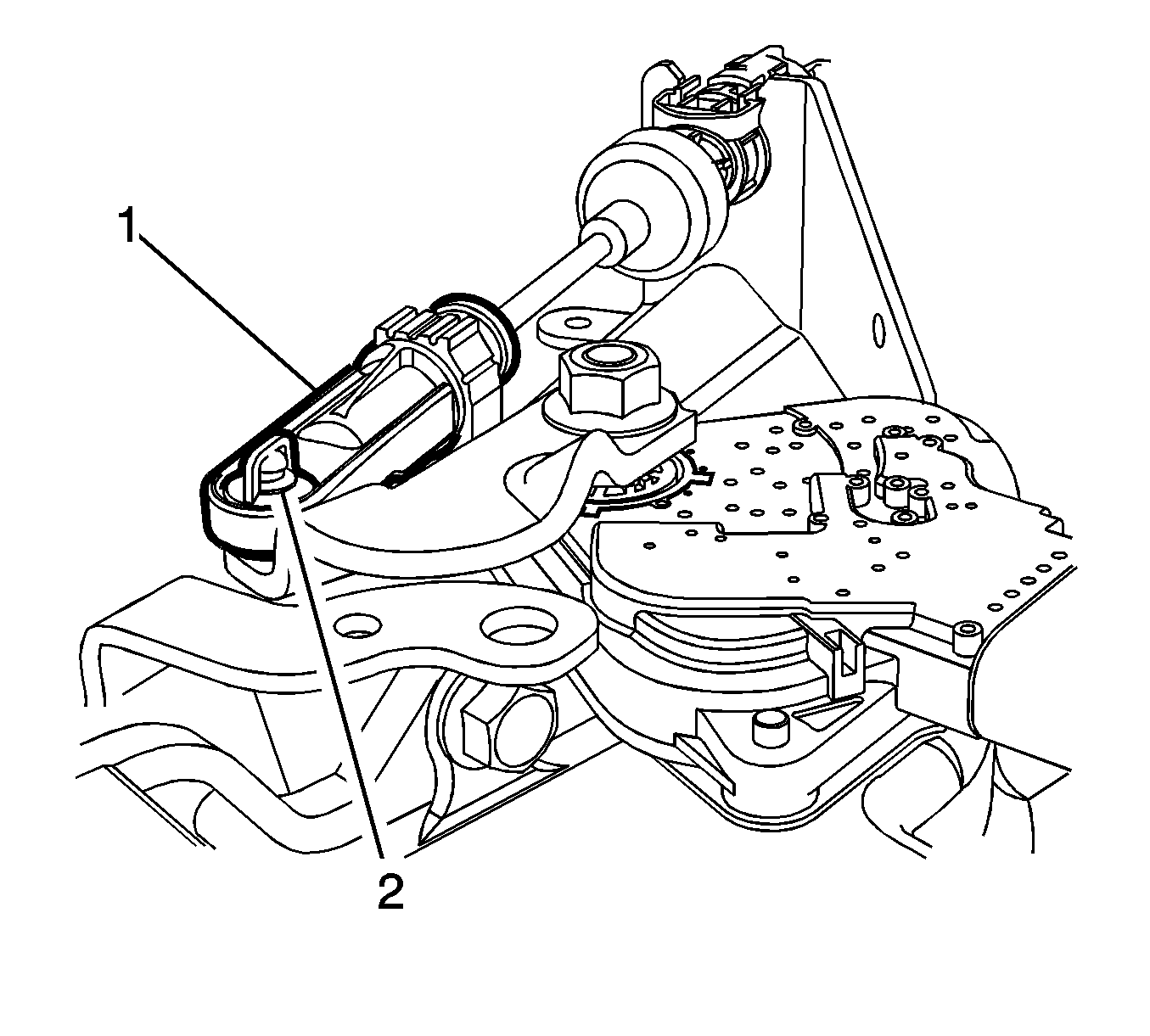

    3. Fig 1: Transmission Range Selector Lever Cable Terminal And Lever Pin
    GM2382848Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the transmission range selector lever cable terminal (1) from the transmission manual shift lever pin (2).
    4. Fig 2: Transmission Range Selector Lever Cable & Cable Bracket
    GM2306978Courtesy of GENERAL MOTORS COMPANY
  4. Press the locking tabs inward (1) in order to release the transmission range selector lever cable (2) from the cable bracket (3).
  5. Remove the console. Refer to Front Floor Console Replacement .
    6. Fig 3: Transmission Range Selector Lever Cable, Locking Tabs And Cable Bracket
    GM2382852Courtesy of GENERAL MOTORS COMPANY
  6. Press the locking tabs inward (1) in order to release the transmission range selector lever cable (3) from the cable bracket (2).
  7. Release the retainer and then remove the cable end terminal from shifter pin.
    8. Fig 4: Identifying Cowl Panel & Selector Lever Cable Grommet
    GM1998672Courtesy of GENERAL MOTORS COMPANY
  8. Remove the transmission range selector lever cable grommet (1) from the cowl panel.
  9. Remove the transmission range selector lever cable from the vehicle.
