Installation Procedure

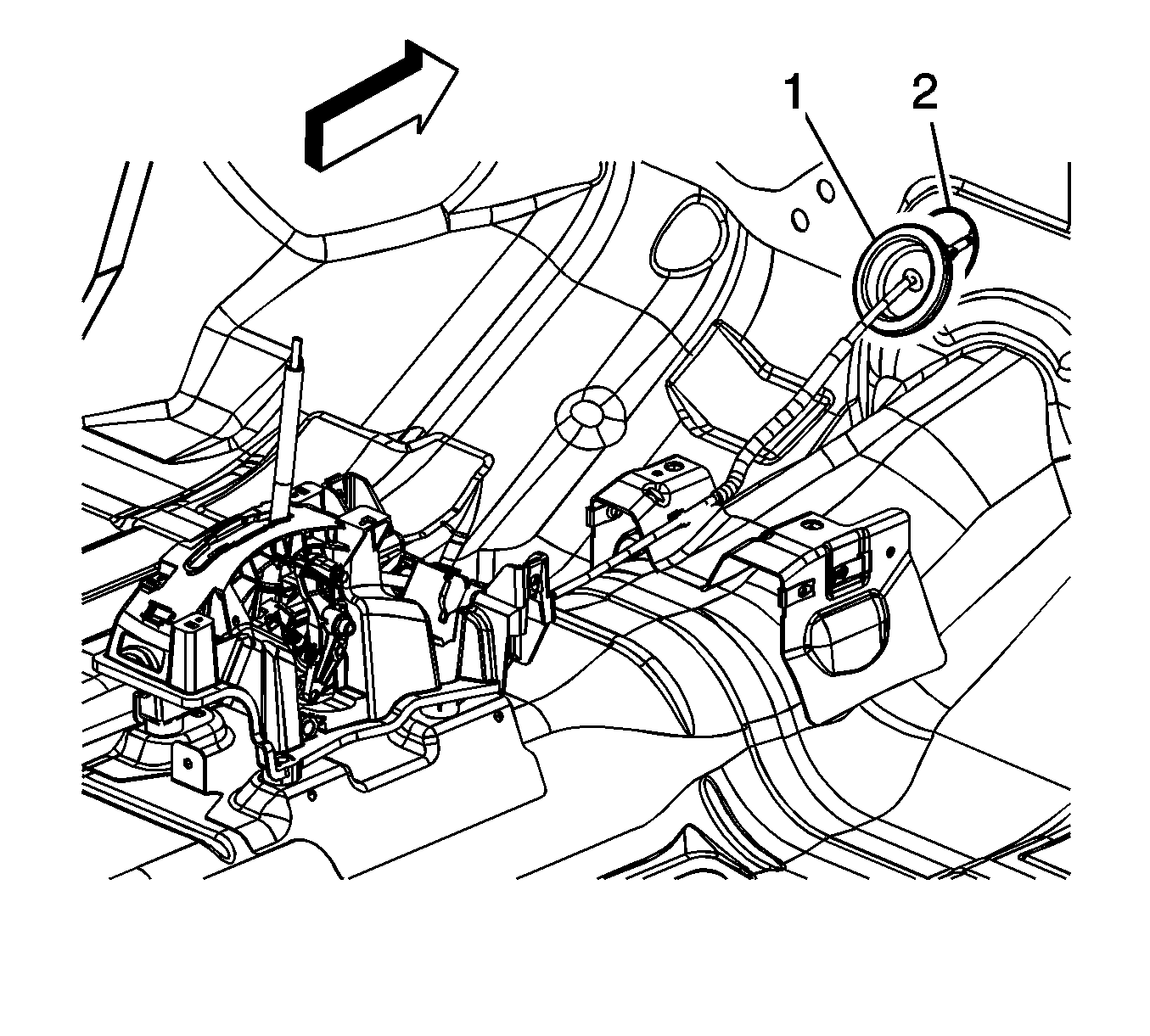

    Fig 1: Identifying Cowl Panel & Selector Lever Cable Grommet
    GM1998672Courtesy of GENERAL MOTORS COMPANY
  1. Install the transmission range selector lever cable to the vehicle.
  2. Install the transmission range selector lever cable grommet (1) to the cowl panel (2).

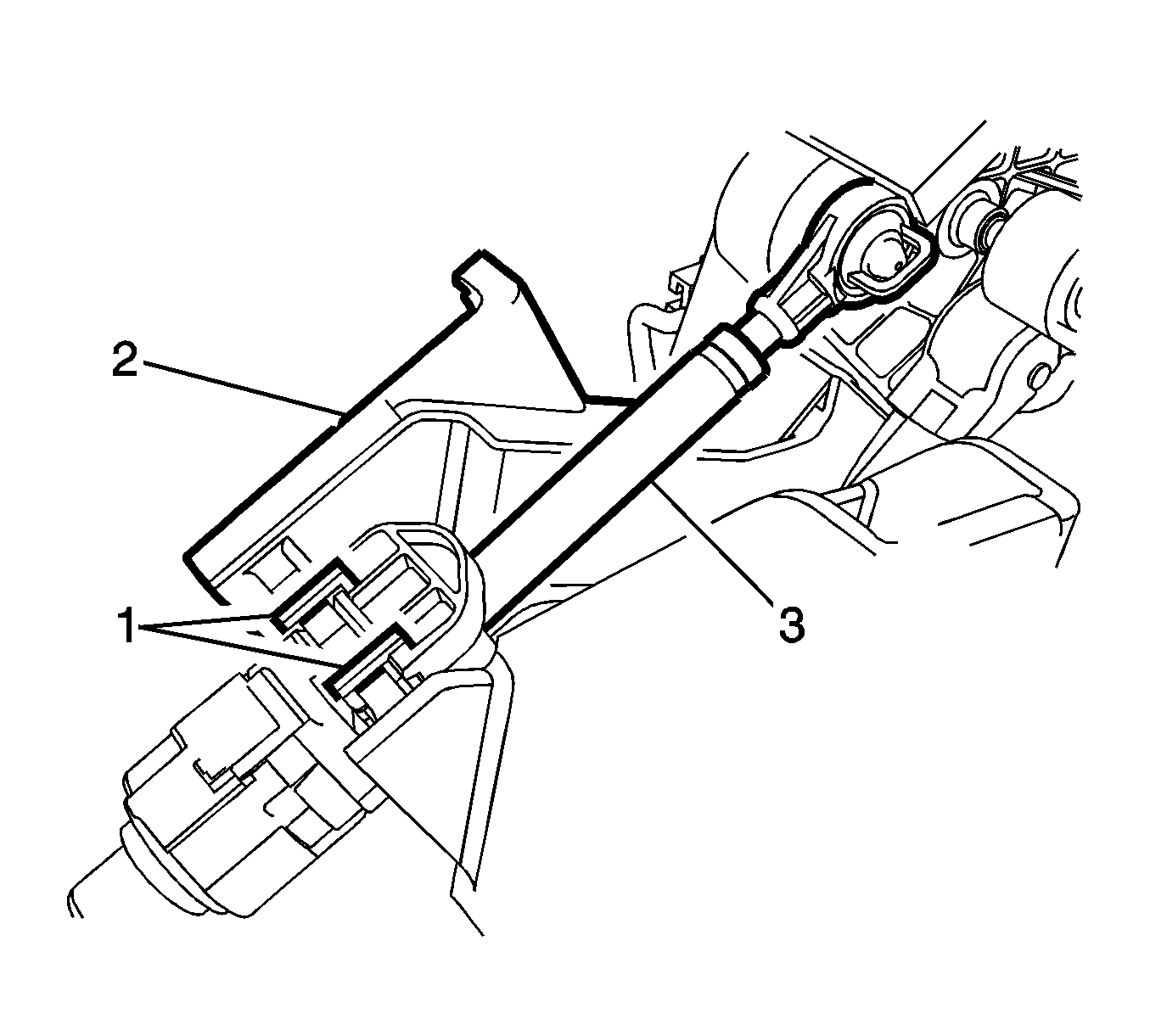

    3. Fig 2: Transmission Range Selector Lever Cable, Locking Tabs And Cable Bracket
    GM2382852Courtesy of GENERAL MOTORS COMPANY
  3. Connect the transmission range selector cable terminal to the shift lever pin.
  4. Remove the cable tie and secure the retainer.
  5. Install the cable (3) to transmission shifter base (2).
  6. Install the console. Refer to Front Floor Console Replacement .

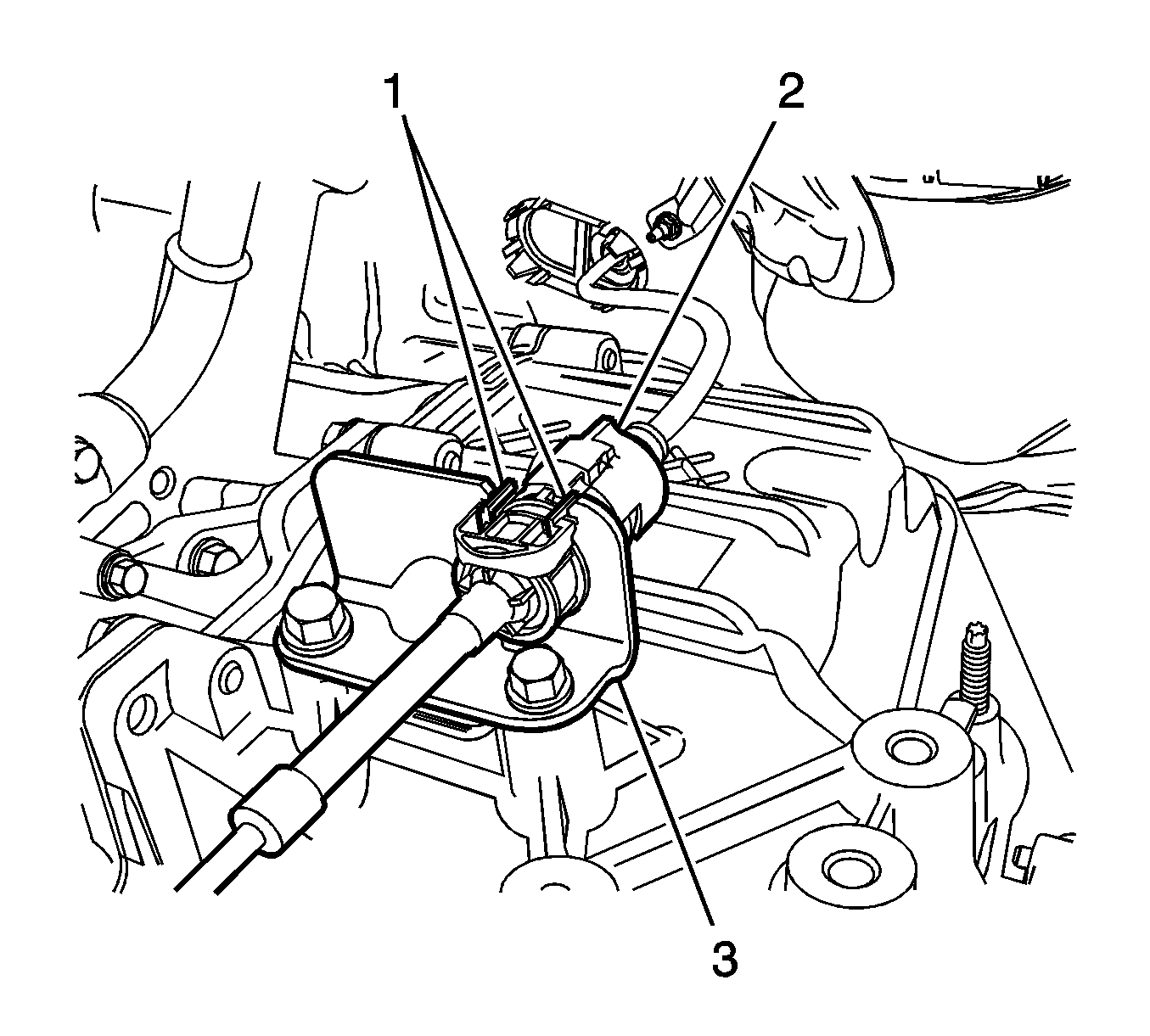

    7. Fig 3: Transmission Range Selector Lever Cable & Cable Bracket
    GM2306978Courtesy of GENERAL MOTORS COMPANY
  7. Install the transmission range selector lever cable (2) to the cable bracket (3).

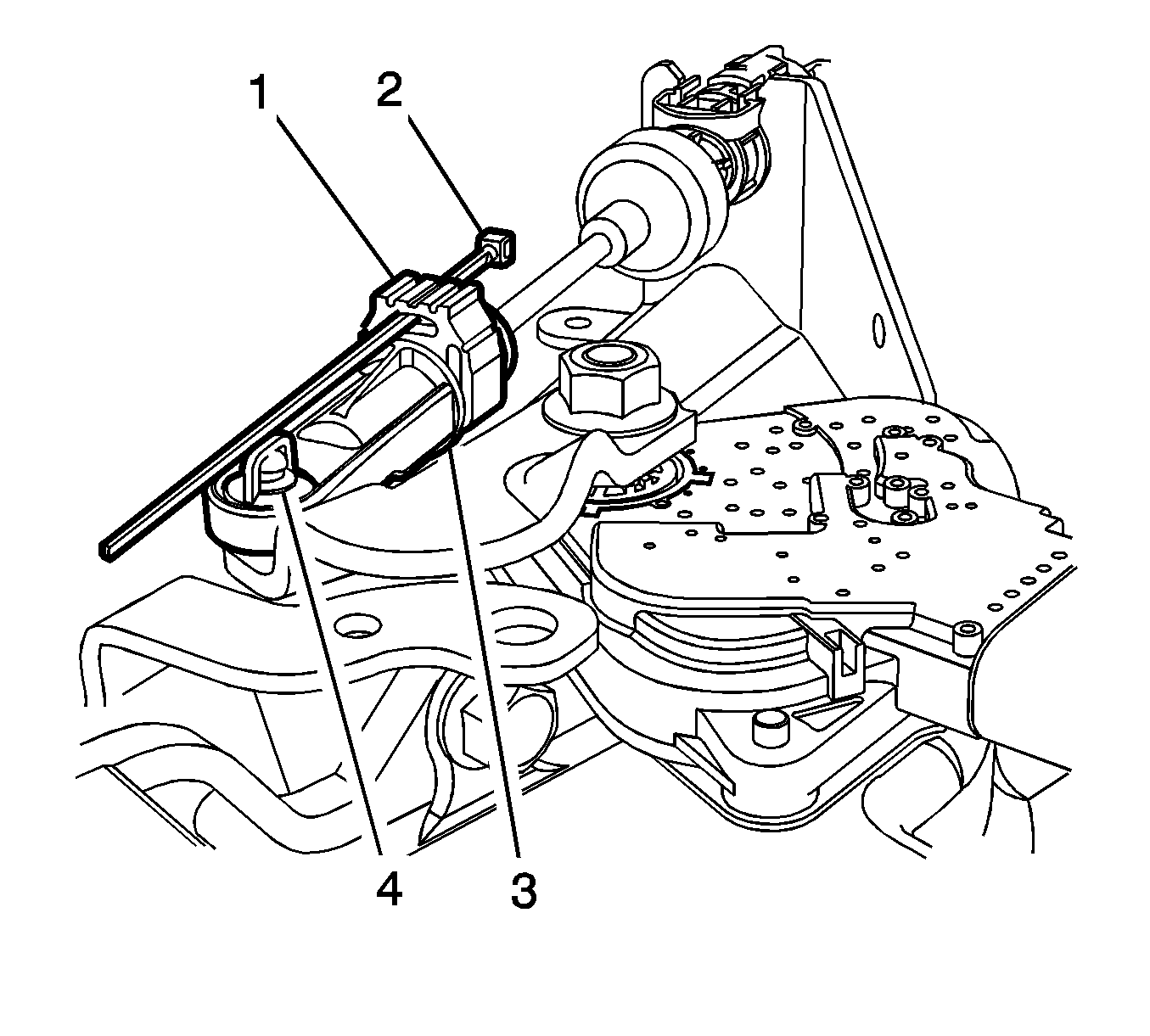

    8. Fig 4: Range Selector Lever Cable Terminal And Transmission Manual Shift Lever Pin
    GM2382851Courtesy of GENERAL MOTORS COMPANY
  8. Connect the transmission range selector lever cable terminal (4) to the transmission manual shift lever pin.
  9. Ensure that the shift lever and the shifter are in the Park position. Secure the shift cable adjustable lock into place. Remove the lock retainer (2). Ensure that the adjustable lock (1) is properly seated.
  10. Install the battery tray. Refer to Battery Tray Replacement .
