Installation Procedure
- Install the control valve body cover wiring connector hole seal.
- Install the control valve body cover gasket to the control valve body cover.
- Install the control valve body cover.
- Install the 12 control valve body cover bolts (1) M6 x 30 and tighten in sequence to 12 N.m (106 lb in).
- Install the 2 control valve body cover studs (2) M6 x 30 and tighten in sequence to 12 N.m (106 lb in).

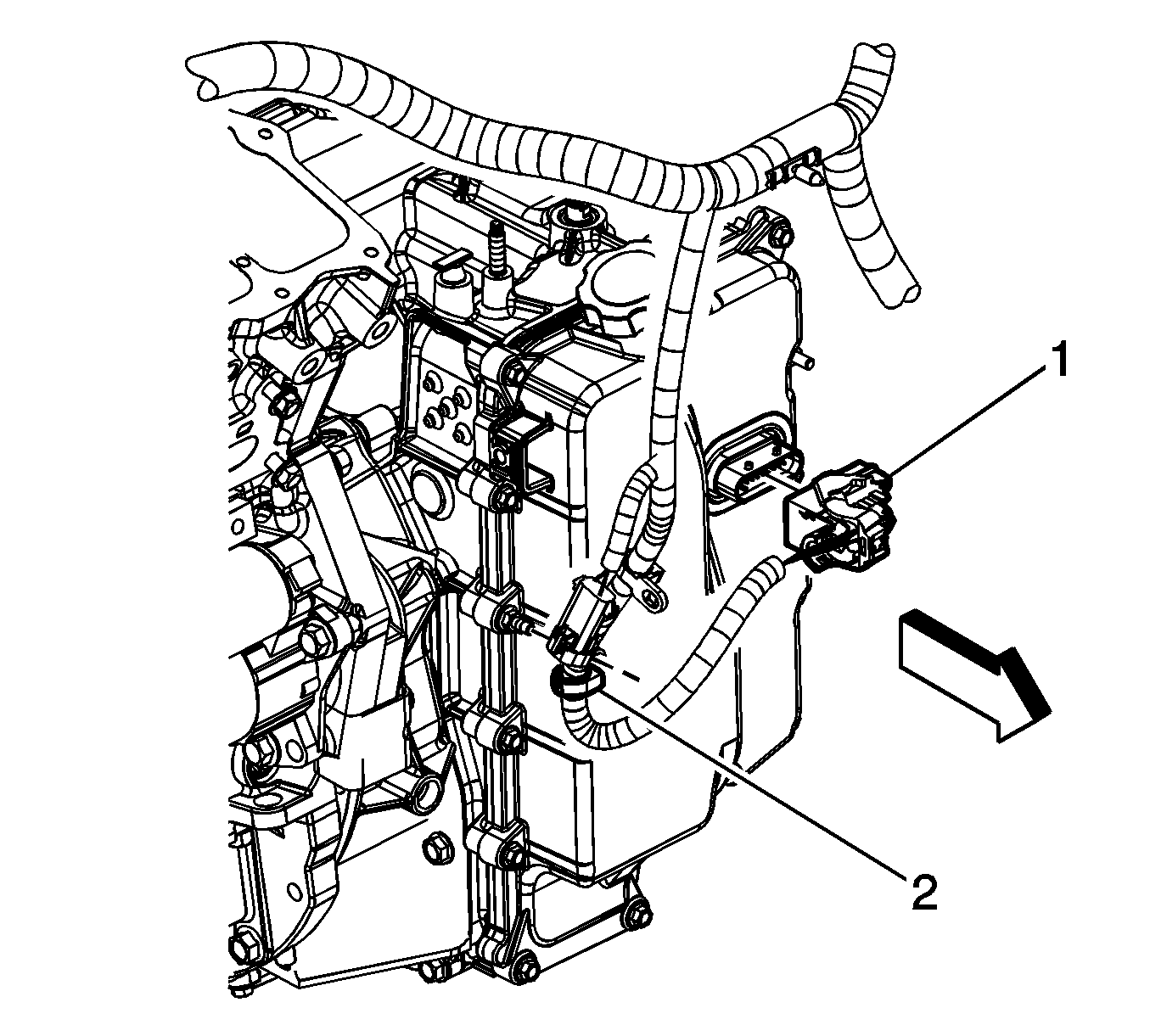

- Connect the control valve body TCM electrical connector (1).
- Install the wire harness retainer (2) to the control valve body cover stud. Tighten the nut to 12 N.m (106 lb in).
- Install the front transmission mount. Refer to Transmission Front Mount Replacement .
- Install the oil cooler inlet hose. Refer to Fluid Cooler Inlet Hose Replacement (MHH) .
- Install the oil cooler outlet hose. Refer to Fluid Cooler Outlet Hose Replacement .
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) .
- Connect and reposition the battery positive and negative cable to the front of the valve body cover. Refer to Battery Negative Cable Replacement (without KL9) , and Battery Positive Cable Replacement .
- Fill the transmission. Refer to Transmission Fluid Drain and Fill .
- Check for leaks.
NOTE:
The holes in the control valve body cover wiring connector hole seal must face toward the control solenoid valve assembly. If the holes face toward the valve body cover, there is a potential for a leak around the seal.
CAUTION:
Refer to Fastener Caution .
NOTE:
Install all control valve body cover bolts and studs by hand then torque all bolts and studs in sequence.
