Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal

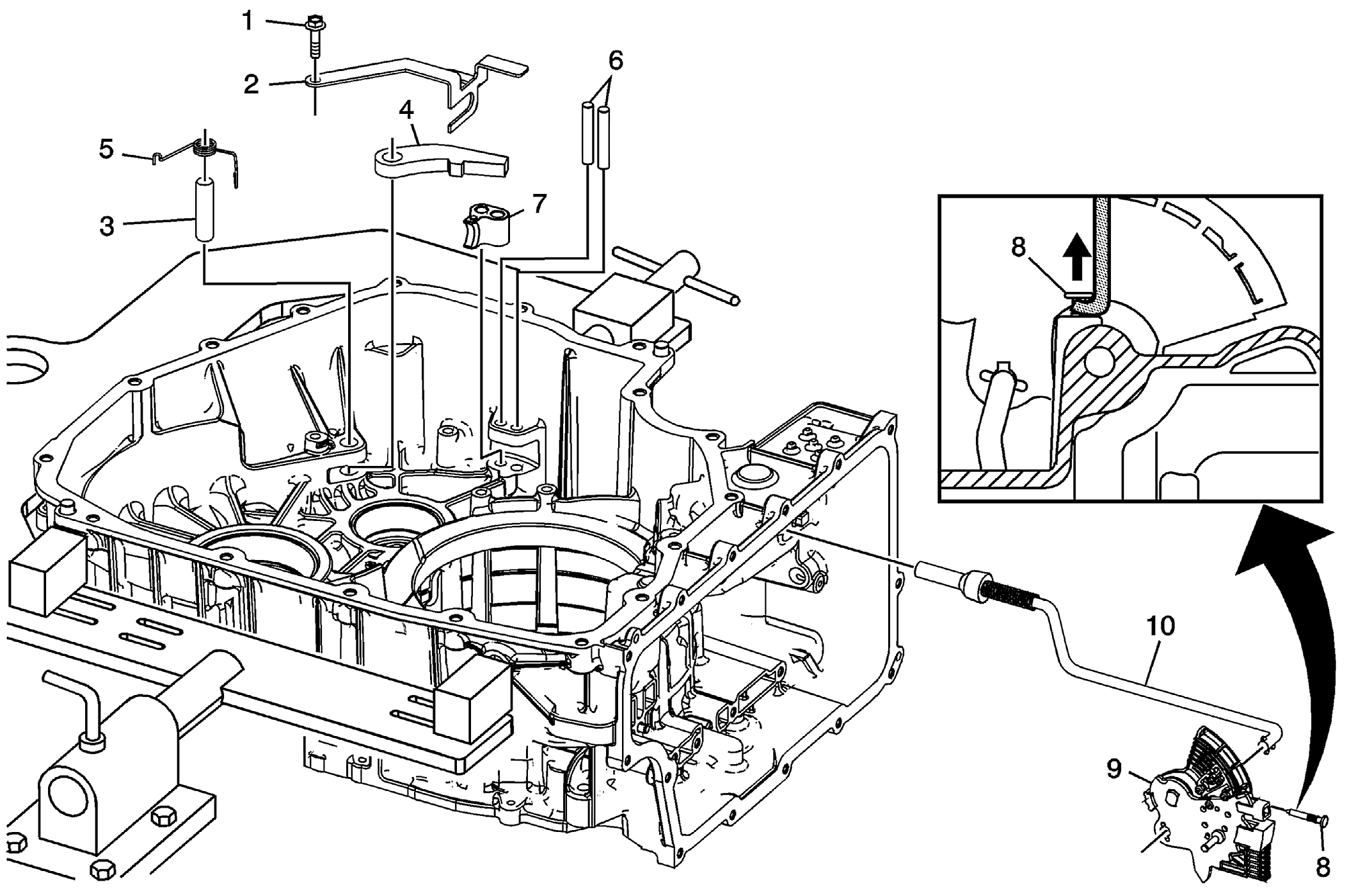

Fig 1: Identifying Manual Shift Detent Lever With Shaft Position Switch Assembly & Park Pawl Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Park Pawl Actuator Bracket Bolt M6x25 (Qty: 2)
2	Park Pawl Actuator Bracket
3	Park Pawl Shaft
4	Park Pawl
5	Park Pawl Spring
6	Park Pawl Actuator Guide Pin
7	Park Pawl Actuator Guide
8	Manual Shift Detent Lever Pin NOTE: Use a small nail puller or other suitable tool. Discard the pin. The pin is not reusable. Special Tools DT23129 Universal Seal Remover GE6125-1B Slide Hammer with Adapter For equivalent regional tools, refer to Special Tools .
9	Manual Shaft Detent (w/Shift Position Switch) Lever Assembly NOTE: Rotate the assembly counterclockwise so the actuator rod will fit through the case opening.
10	Park Pawl Actuator Assembly
