Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing Side

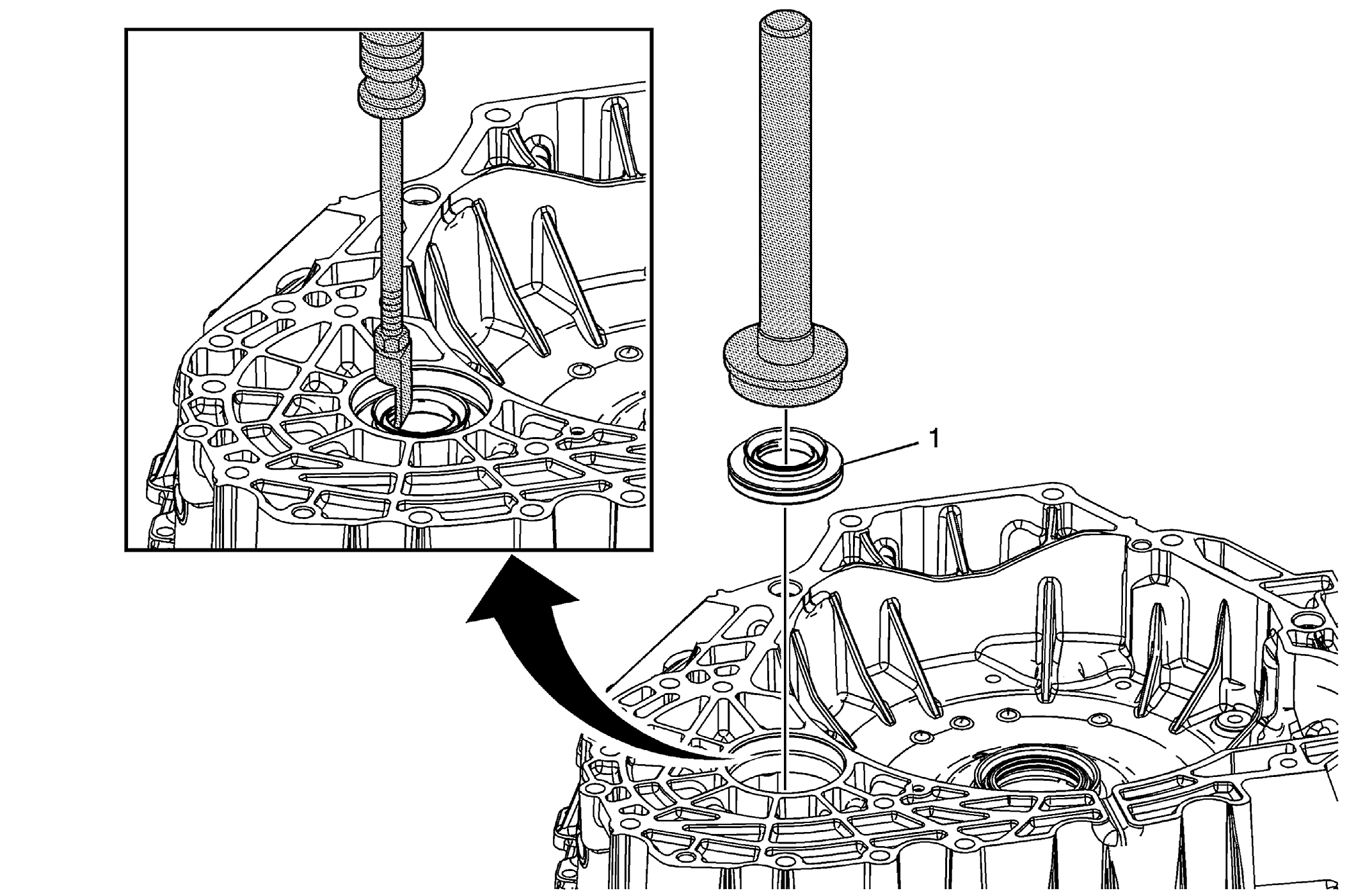

Fig 1: Identifying Front Wheel Drive Shaft Oil Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Torque Converter-Front Wheel Drive Shaft Oil Seal Assembly NOTE: Use the open side of DT46629-A seal installer to avoid seal lip damage and to install the seal to the proper depth. Special Tools DT23129 Universal Seal Remover DT46629-A Seal Installer GE6125-1B Slide Hammer with Adapter GE8092 Driver Handle For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Torque Converter-Front Wheel Drive Shaft Oil Seal Assembly

NOTE:

Use the open side of DT46629-A seal installer to avoid seal lip damage and to install the seal to the proper depth.

Special Tools

For equivalent regional tools, refer to Special Tools .
