Front Wheel Drive Shaft Seal Replacement - Case Side

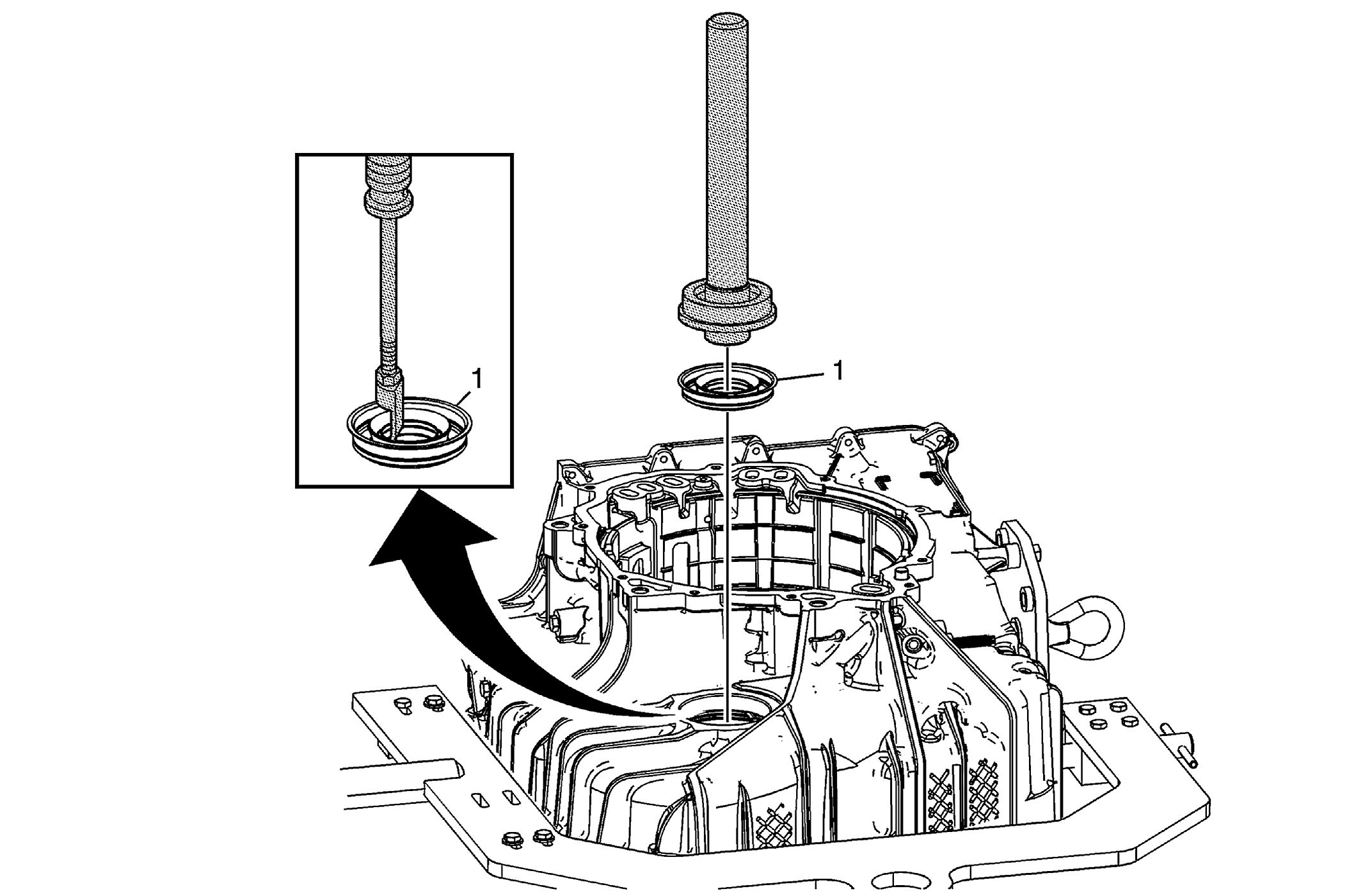

Fig 1: Identifying Front Wheel Drive Shaft Oil Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Wheel Drive Shaft Oil Seal Assemble NOTE: Use the flat side of J46629-A seal installer to seat the seal to the case surface. Special Tools DT23129 Universal Seal Remover DT46629-A Seal Installer GE6125-1B Slide Hammer GE8092 Driver Handle For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Front Wheel Drive Shaft Oil Seal Assemble

NOTE:

Use the flat side of J46629-A seal installer to seat the seal to the case surface.

Special Tools

For equivalent regional tools, refer to Special Tools .
