Reluctor Wheel and Piston Removal
Reluctor Wheel and Piston Removal

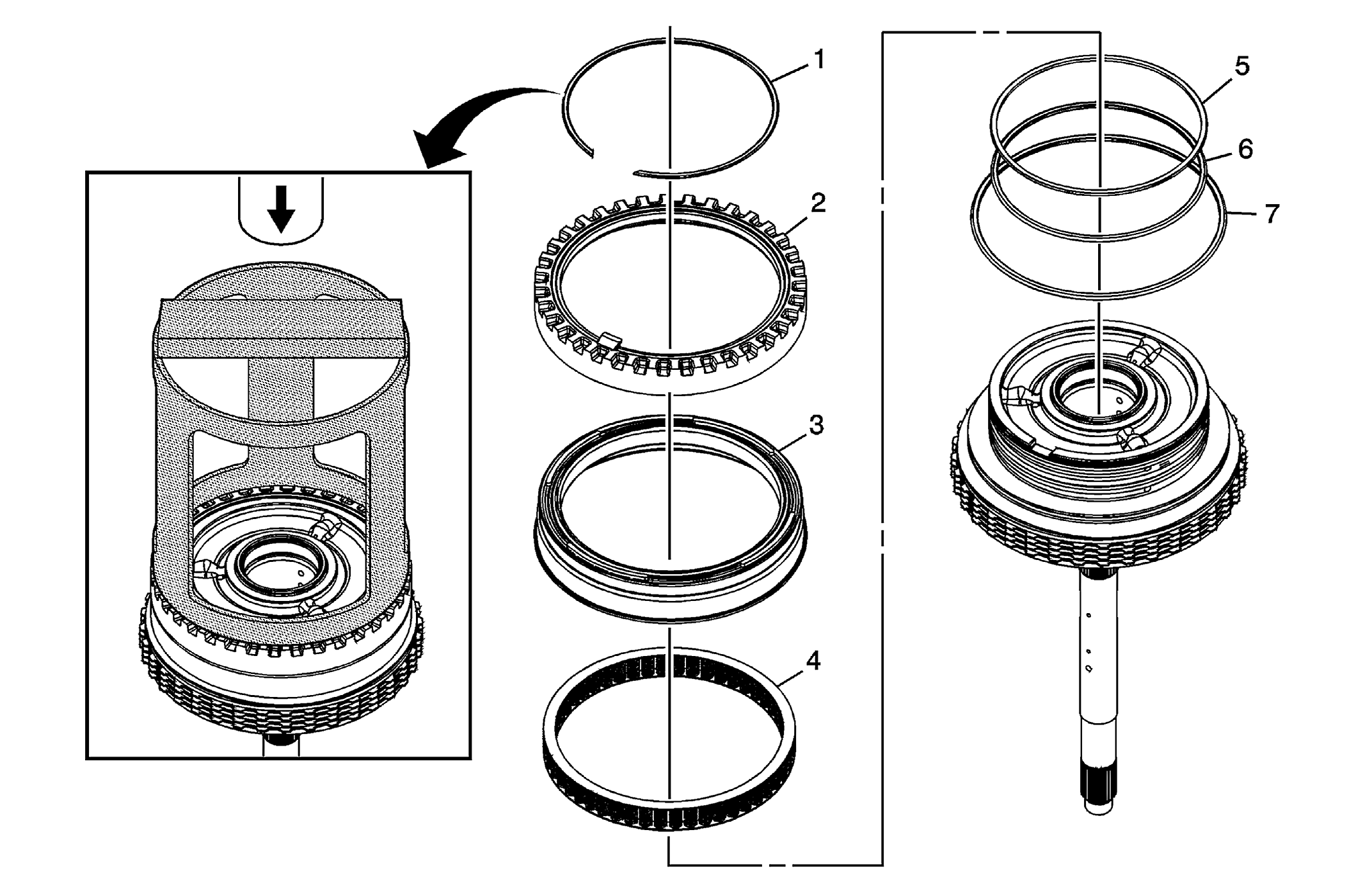

| Callout | Component Name |
|---|---|
| 1 | A/Trans Input Shaft Speed Sensor Reluctor Ring Retaining Ring
CAUTION:
Compress the reluctor wheel just enough to clear the retainer. Over compressing the reluctor wheel will break the alignment tab and the clutch housing. Special Tools DT-47694 Piston Spring Compressor For equivalent regional tools, refer to Special Tools . |
| 2 | A/Trans Input Shaft Speed Sensor Reluctor Wheel |
| 3 | 3-5-Reverse Clutch Piston
NOTE:
Inspect piston seals for damage and/or wear. Piston is reusable. |
| 4 | 3-5-Reverse Clutch Spring Assembly |
| 5 | 3-5-Reverse Clutch Piston Inner Seal (Orange) |
| 6 | 3-5-Reverse Clutch Piston Inner Seal (Black) |
| 7 | 3-5-Reverse Clutch Piston Dam Seal |
