4-5-6 Clutch Plates Installation
4-5-6 Clutch Plates Installation

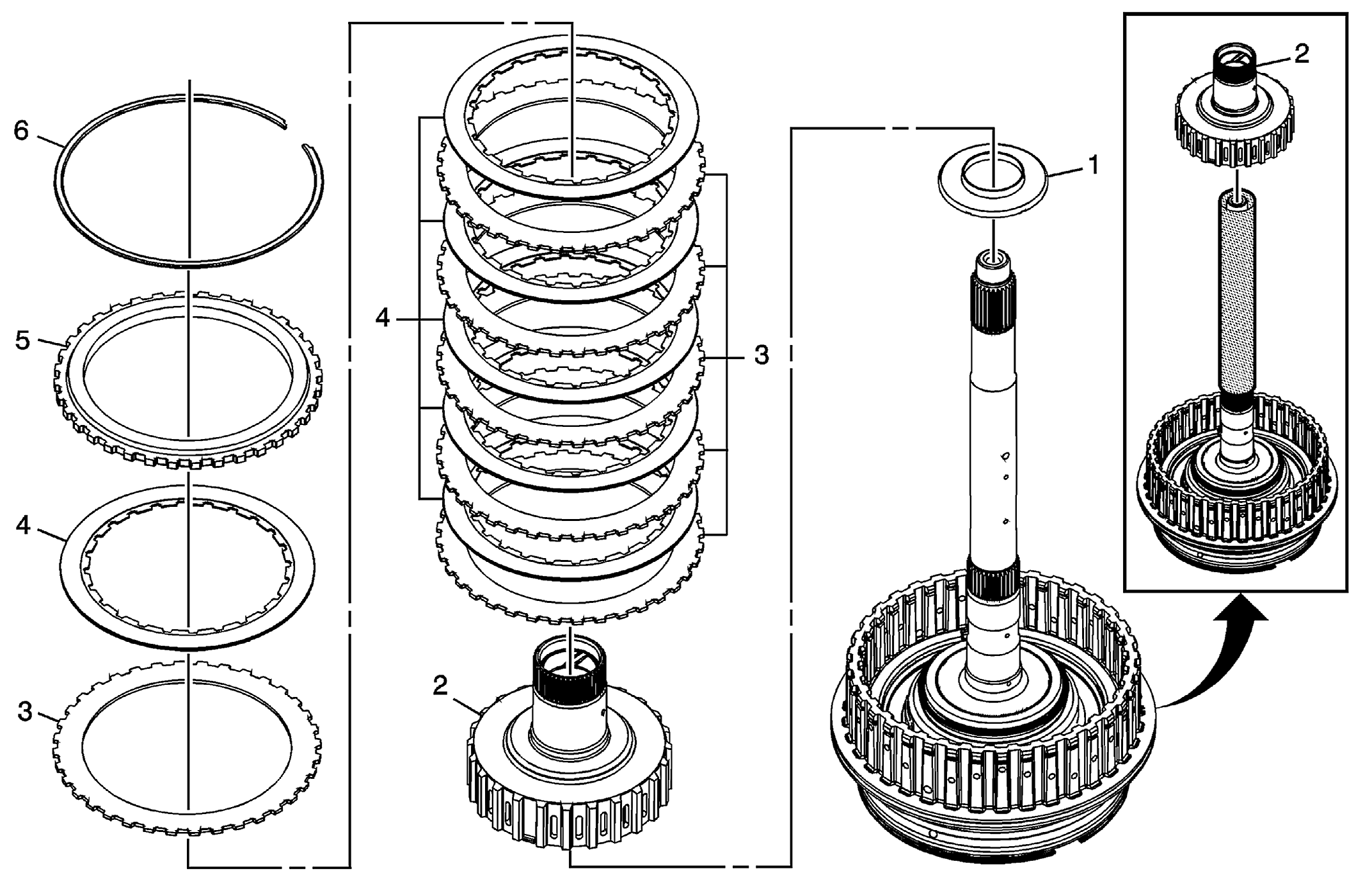

| Callout | Component Name |
|---|---|
| 1 | 4-5-6 Clutch Hub Thrust Bearing
NOTE:
Note location of the orientation lip on bearing. All thrust bearings can only be assembled one way. |
| 2 | Reaction Carrier Hub Assembly
CAUTION:
Failure to use DT48551 could cause damage to the hub assembly bushings which could cause premature transmission failure. Special Tools DT-48551 Reaction Hub Bushing Protector For equivalent regional tools, refer to Special Tools . |
| 3 | 4-5-6 Clutch Plate (Qty:6) |
| 4 | 4-5-6 Clutch (w/Friction Material) Plate Assembly (Qty:6) |
| 5 | 4-5-6 Clutch Backing Plate |
| 6 | 4-5-6 Clutch Backing Plate Retaining Ring
NOTE:
Gently push down on the backing plate to get enough clearance between the backing plate and retainer. |
