4-5-6 Clutch Piston Installation
4-5-6 Clutch Piston Installation

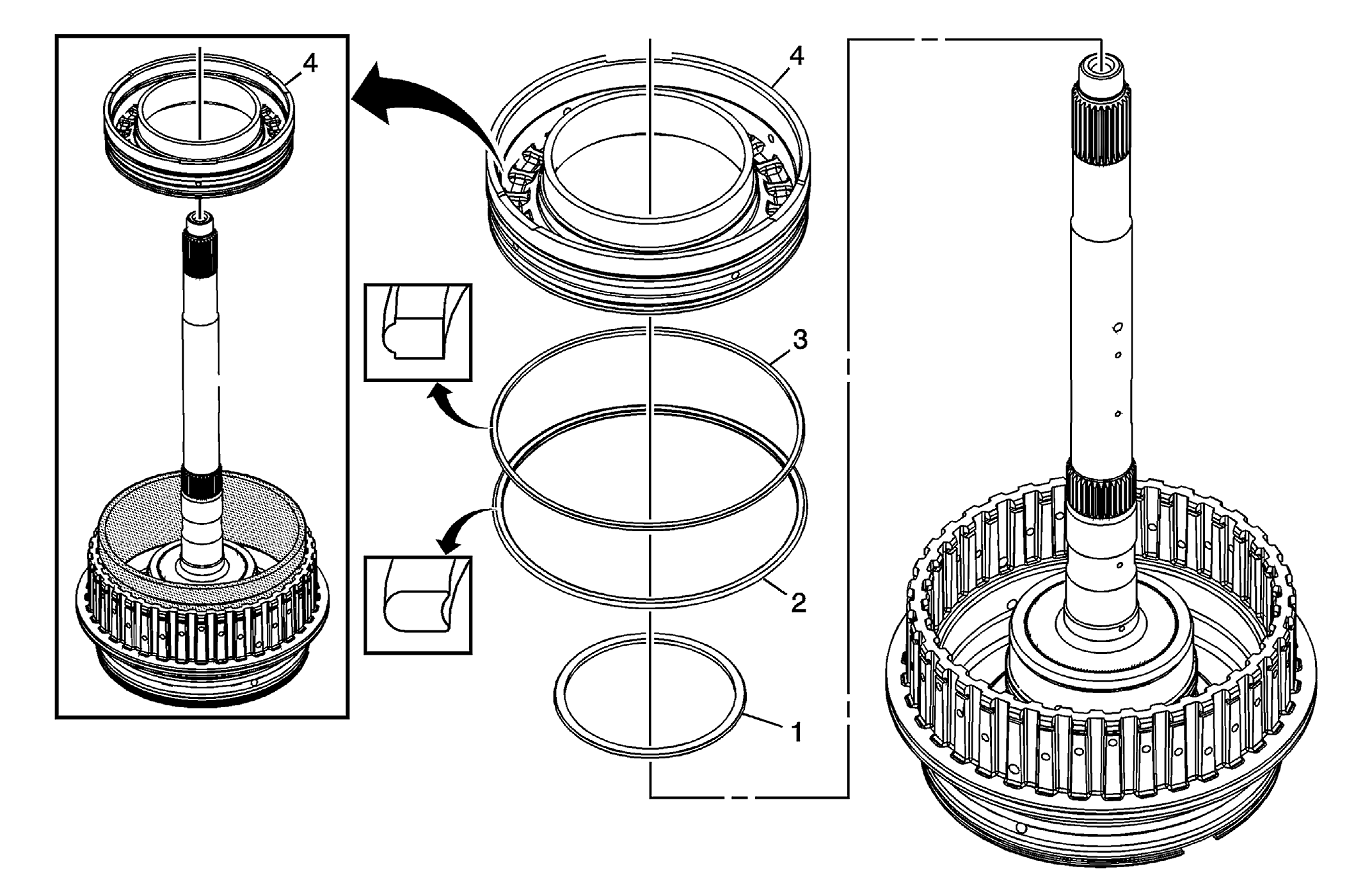

| Callout | Component Name |
|---|---|
| 1 | 4-5-6 Clutch Piston Inner Seal |
| 2 | 4-5-6 Clutch Piston Outer Seal (Rounded) |
| 3 | 4-5-6 Clutch Piston Outer Seal (Stepped) (Orange) |
| 4 | 4-5-6 Clutch Piston
NOTE:
DT-47859 outer seal protector prevents the piston seal lip from damage during installation. Apply a thin coat of ATF to the I.D. of DT-47859 outer seal protector to ease the installation of the piston. Special Tools DT-47859 Piston Outer Seal Protector For equivalent regional tools, refer to Special Tools . |
