4-5-6 Clutch Dam Installation

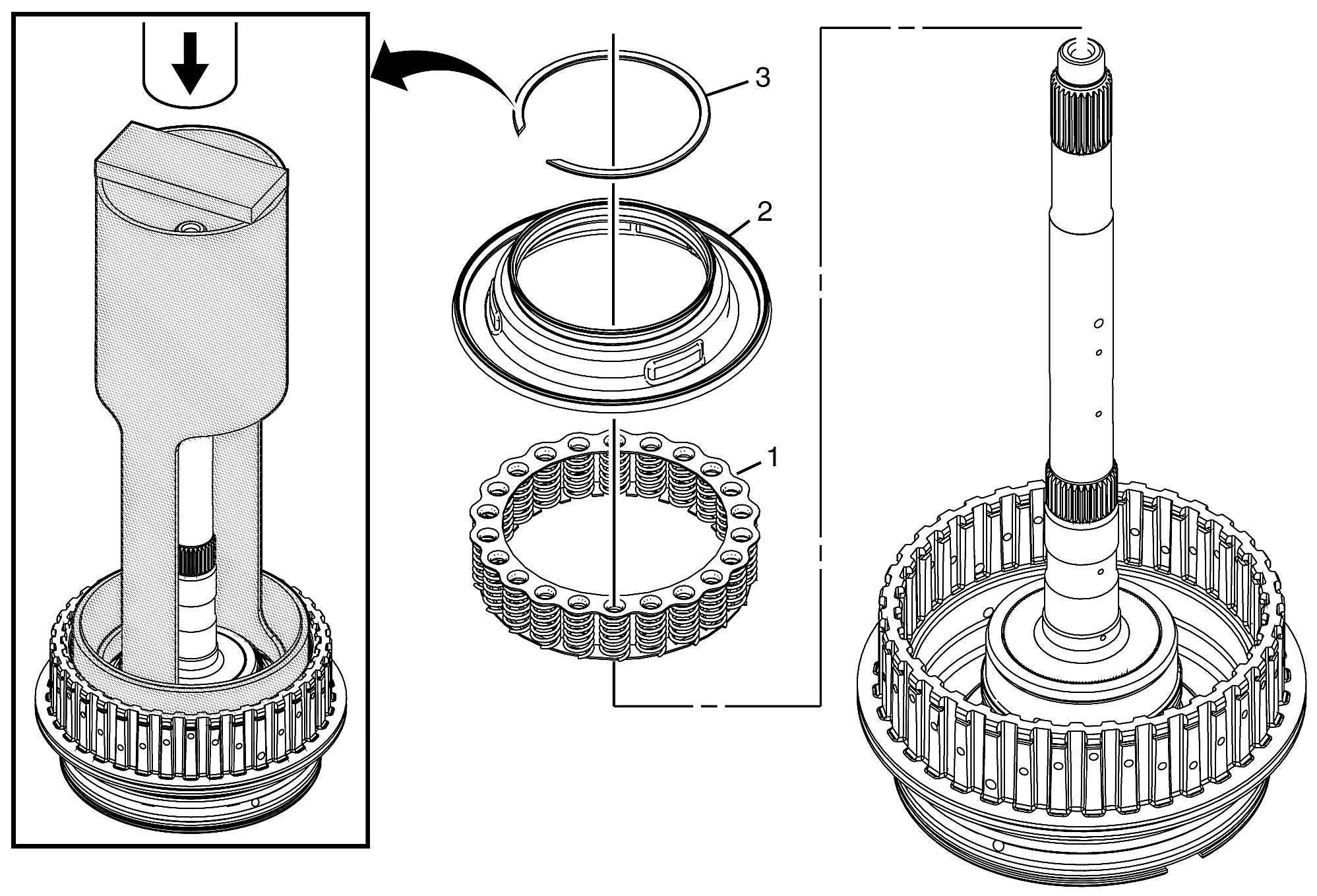

Fig 1: View Of 4-5-6 Clutch Dam

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	4-5-6 Clutch Spring
2	4-5-6 Clutch Piston Fluid Dam NOTE: DT47693-1 which is part of DT-47693 dam protector prevents the dam seal lip from damage during installation. Apply a thin coat of ATF to the I.D. of DT47693-1 which is part of DT-47693 dam protector to ease the installation of the dam. Special Tools DT-47693 Dam Protector For equivalent regional tools, refer to Special Tools .
3	4-5-6 Clutch Dam Retaining Ring Special Tools DT47693-2 Clutch Spring Compressor which is part of DT-47693 Dam Protector GE 8059 Snap Ring Pliers-Parallel Jaw or equivalent For equivalent regional tools, refer to Special Tools .

Callout

Component Name

4-5-6 Clutch Spring

4-5-6 Clutch Piston Fluid Dam

NOTE:

DT47693-1 which is part of DT-47693 dam protector prevents the dam seal lip from damage during installation. Apply a thin coat of ATF to the I.D. of DT47693-1 which is part of DT-47693 dam protector to ease the installation of the dam.

Special Tools
DT-47693 Dam Protector
For equivalent regional tools, refer to Special Tools .

4-5-6 Clutch Dam Retaining Ring

Special Tools

DT47693-2 Clutch Spring Compressor which is part of DT-47693 Dam Protector
GE 8059 Snap Ring Pliers-Parallel Jaw or equivalent

For equivalent regional tools, refer to Special Tools .
