Tire Pressure Indicator Receiver Replacement

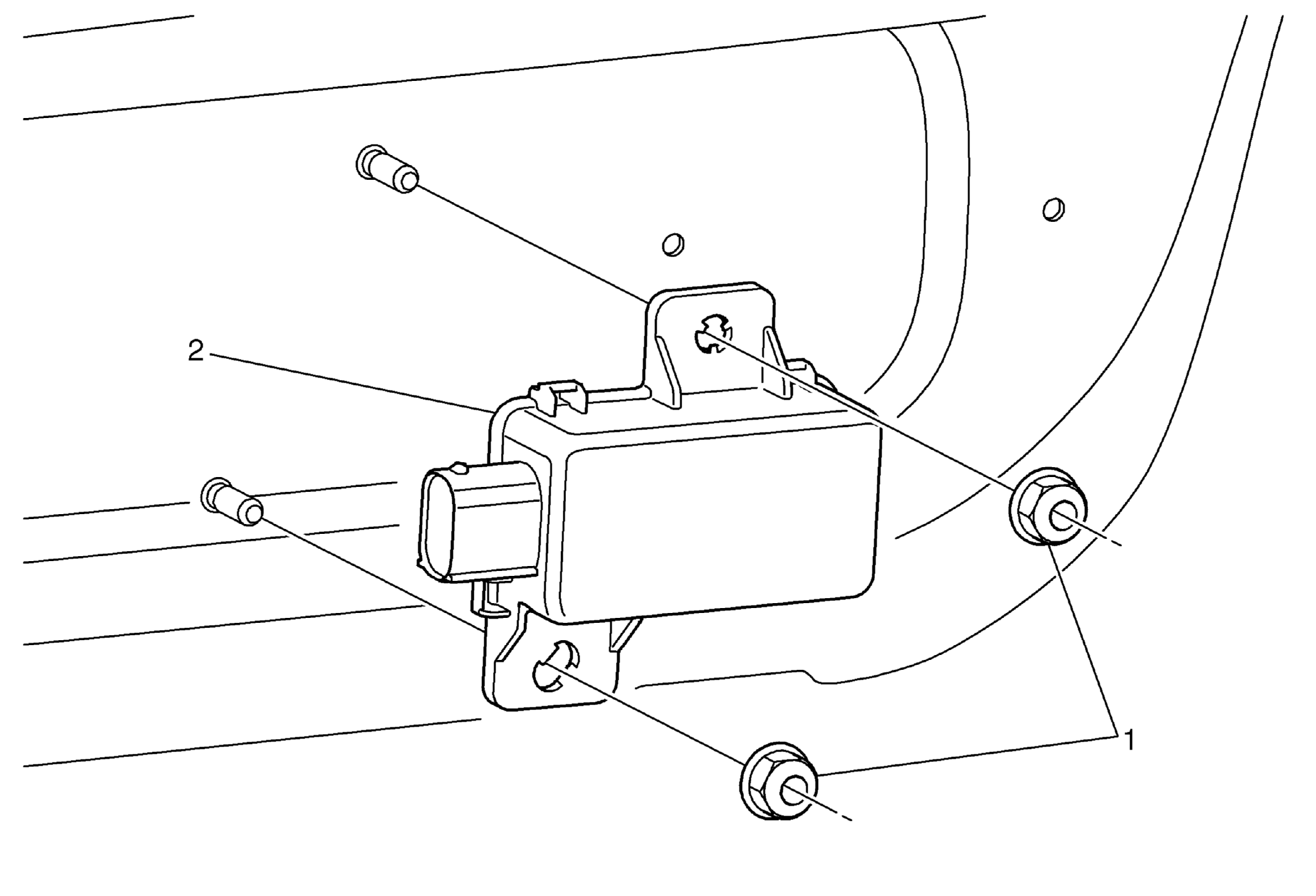

Fig 1: Tire Pressure Indicator Receiver & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the 2 center clips on the lower part of the rear bumper. Refer to Rear Bumper Fascia Replacement .
1	Tire Pressure Indicator Receiver Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Tire Pressure Indicator Receiver Procedure Disconnect any electrical connectors as needed. After repairs, program the tire pressure monitoring system. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the 2 center clips on the lower part of the rear bumper. Refer to Rear Bumper Fascia Replacement .

Tire Pressure Indicator Receiver Fastener (Qty:2)

CAUTION:

Tighten
4 N.m (35 lb in)

Tire Pressure Indicator Receiver

Procedure

Disconnect any electrical connectors as needed.
After repairs, program the tire pressure monitoring system. Refer to Control Module References .
