Rear Bumper Fascia Replacement

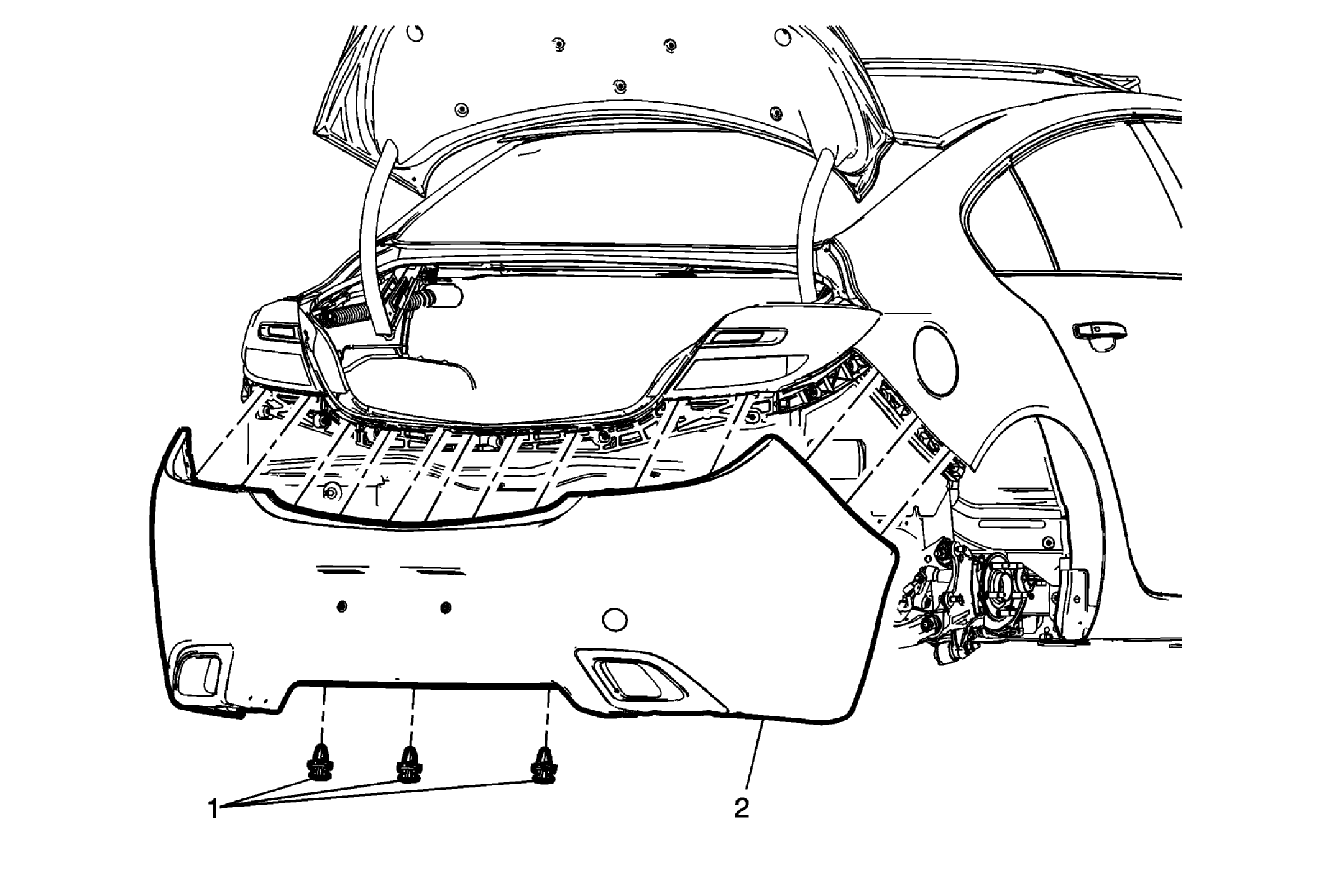

Fig 1: Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the six wheel house panel screws to fascia. Refer to Front Wheelhouse Rear Liner Replacement
1	Rear Bumper Fascia Retainer (Qty:3)
2	Rear Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the rear fascia retainers. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia retainers. Disconnect any electrical connectors as needed. Transfer any parts as needed.

Callout

Component Name

Preliminary Procedure
Remove the six wheel house panel screws to fascia. Refer to Front Wheelhouse Rear Liner Replacement

Rear Bumper Fascia Retainer (Qty:3)

Rear Bumper Fascia

Procedure

Carefully push a small nylon wedge between the fascia and the rear fascia retainers. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia retainers.
Disconnect any electrical connectors as needed.
Transfer any parts as needed.
