Stabilizer Shaft Replacement (GNE)

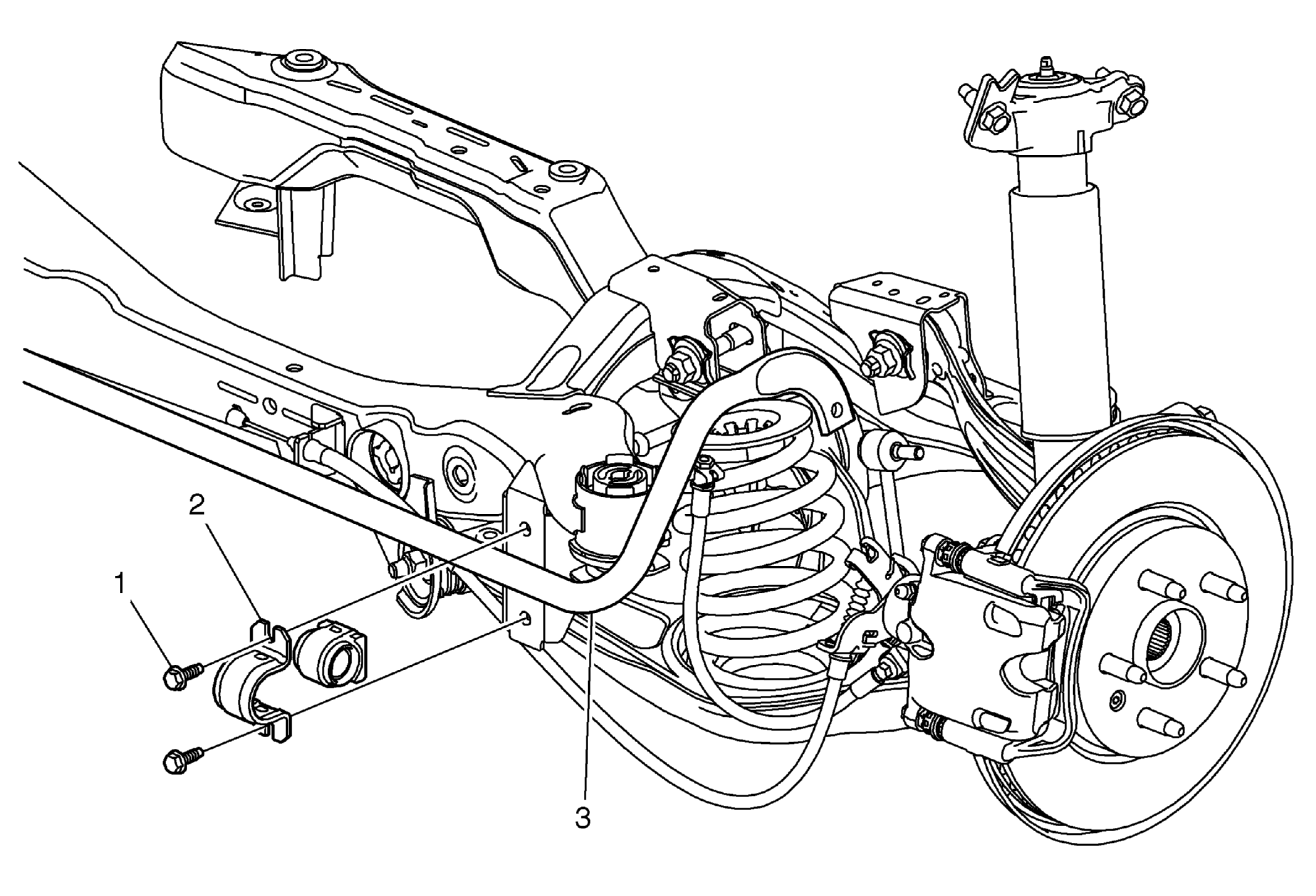

Fig 1: Stabilizer Shaft (GNE)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Disconnect the stabilizer links from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement (GNE) .
1	Stabilizer Shaft Insulator Fastener (Qty:4) CAUTION: Refer to Fastener Caution . Procedure Install NEW clamp bolts. Tighten 22 N.m (16 lb ft) + 30 degrees
2	Stabilizer Shaft Bracket (Qty2)
3	Stabilizer Shaft Procedure Replace insulator if necessary. NOTE: If the stabilizer bar has broken, inspect the rear coil springs for witness marks indicating contact. If there is noticeable contact or paint removed , replace the coil spring.
