Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement (GNB)  or Front Wheel Bearing and Hub Replacement (GNA) .

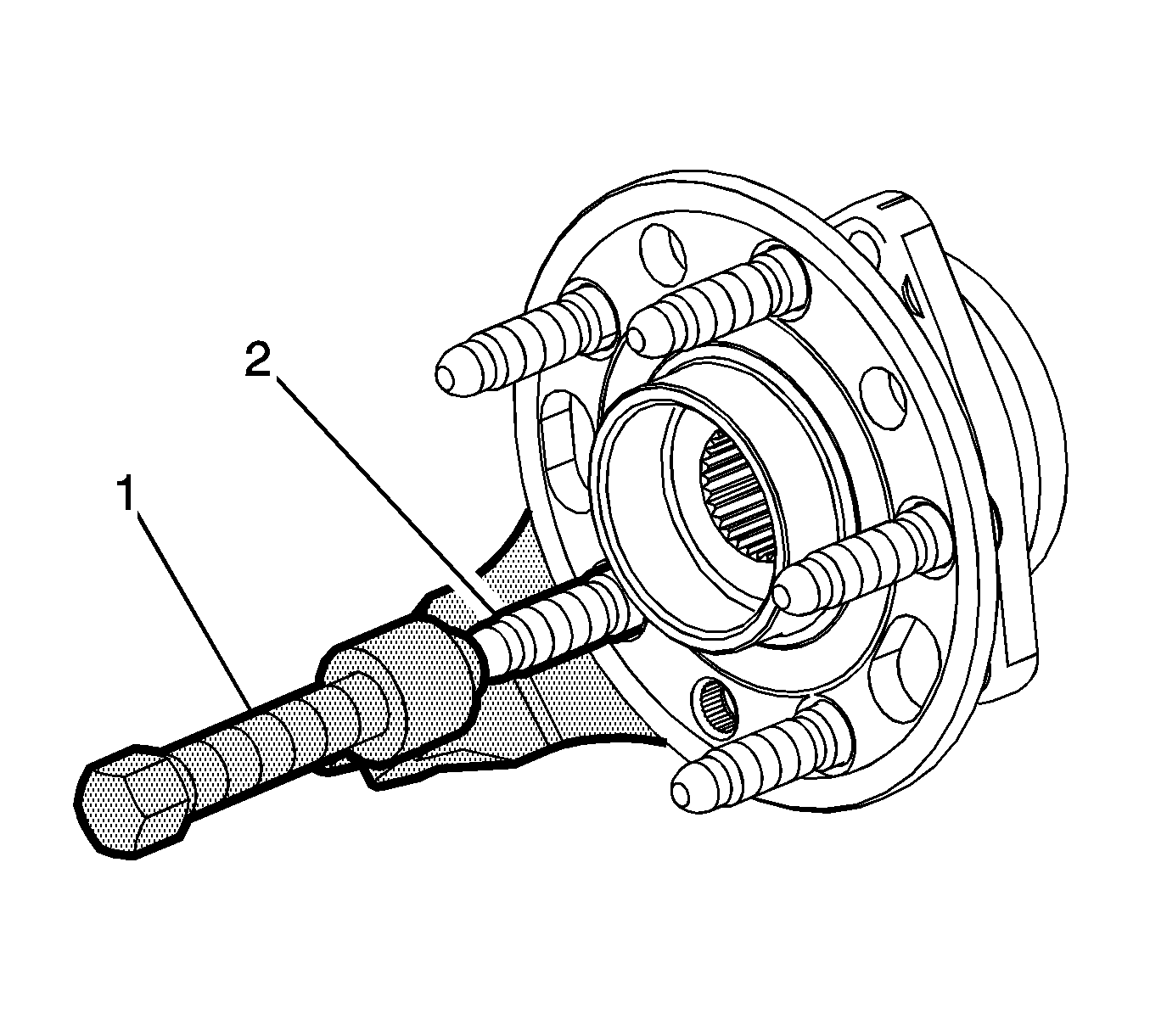

    3. Fig 1: Removing Wheel Stud
    GM2911110Courtesy of GENERAL MOTORS COMPANY
  3. Use the CH-43631  separator (1) to remove the wheel stud (2) from the front wheel bearing and hub assembly. Discard the stud.
