Front Wheel Bearing and Hub Replacement (GNB)

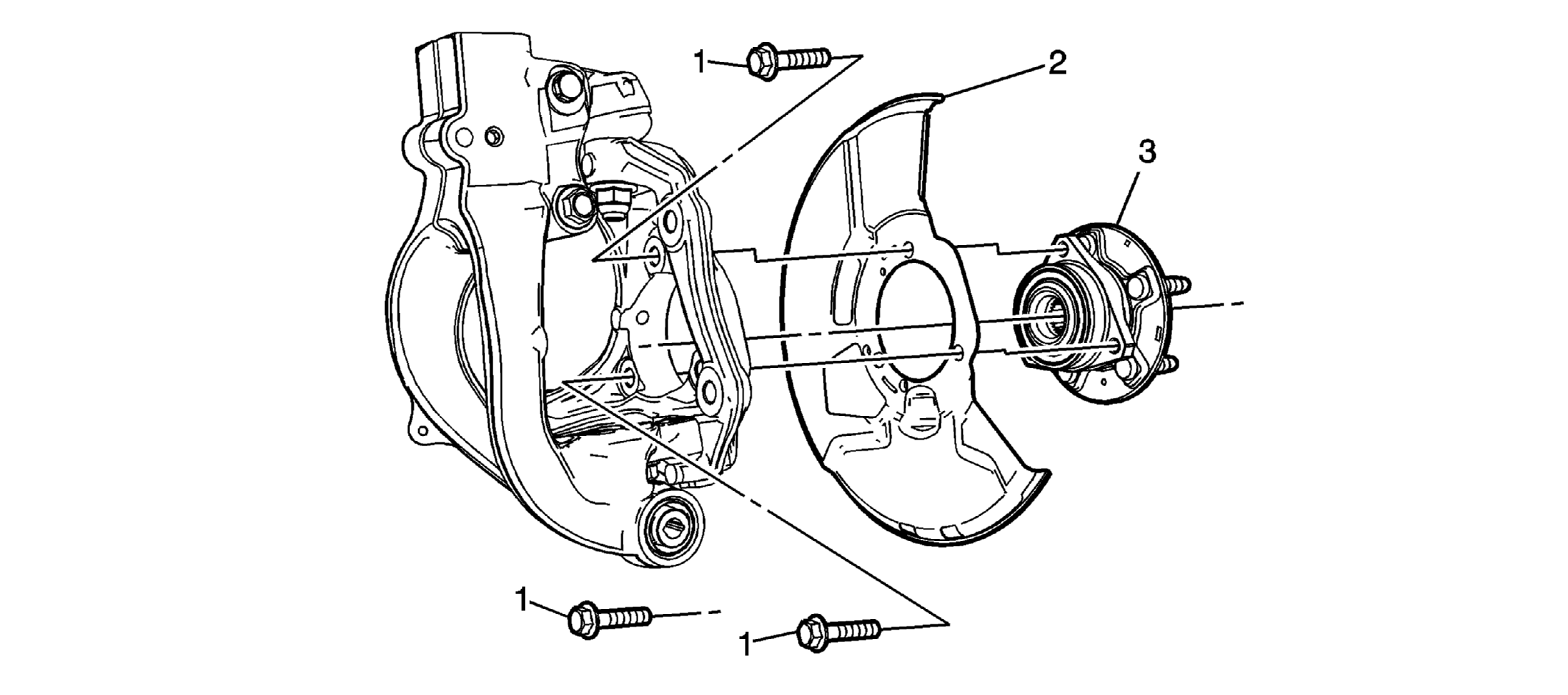

Fig 1: Front Wheel Bearing And Hub Assembly, Front Brake Shield & Bolts (GNB)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front suspension strut yoke. Refer to Front Suspension Strut Yoke Replacement (GNB) .
1	Front Wheel Bearing and Hub Assembly Bolt (Qty:3) CAUTION: Refer to Fastener Caution . CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Remove and discard the bolts. DO NOT re-use, replace with NEW only. Tighten 100 N.m (74 lb ft) +60 degrees
2	Front Brake Shield
3	Front Wheel Bearing and Hub Assembly
