Installation Procedure

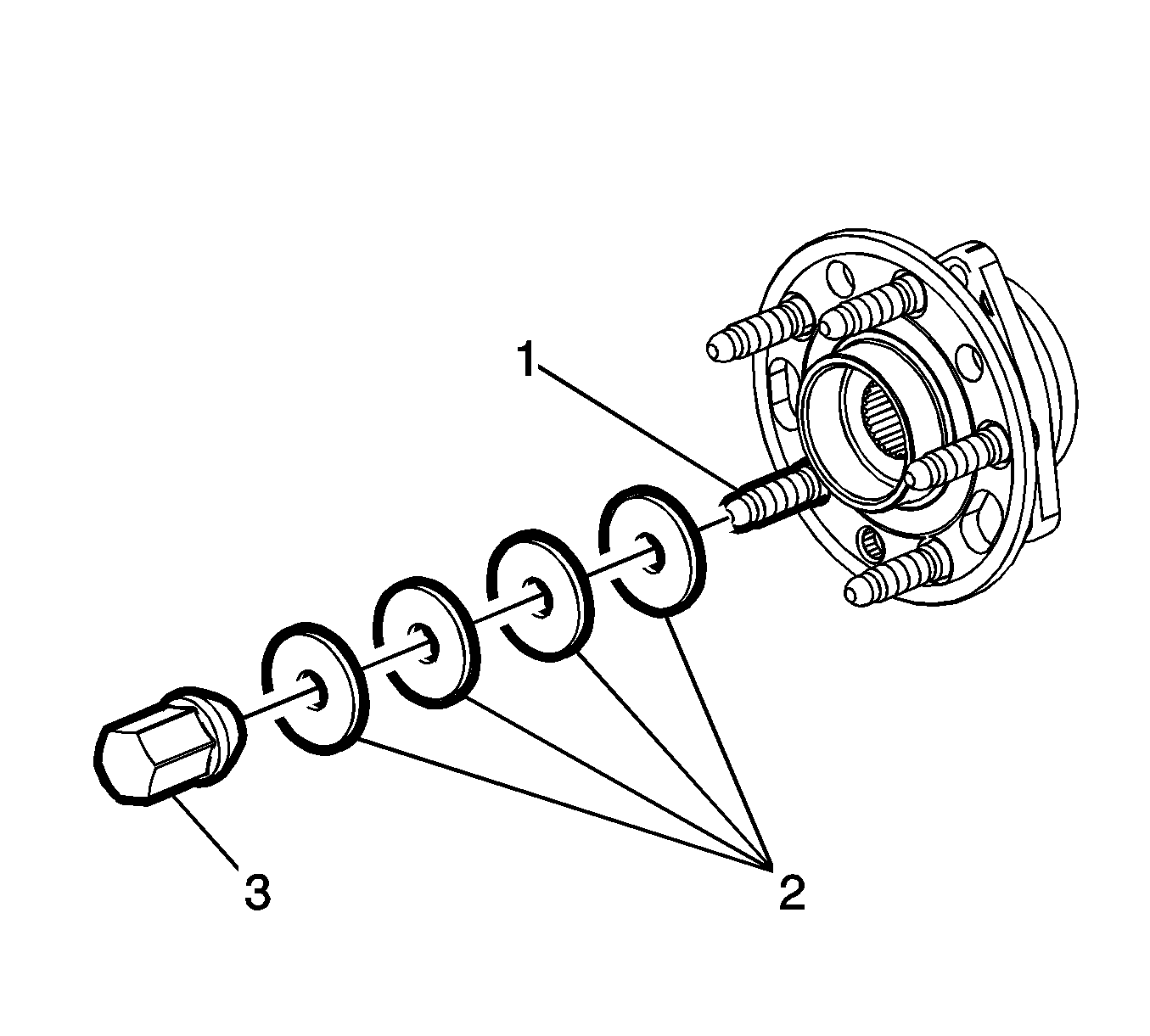

    Fig 1: Installing Wheel Stud
    GM2911111Courtesy of GENERAL MOTORS COMPANY
  1. Position the NEW wheel stud (1) in the front wheel bearing and hub assembly.
  2. Install flat washers (2) and an old wheel nut (3) on the wheel stud.
  3. Use a suitable tool to prevent the flange on the front wheel bearing and hub assembly from turning.
  4. Tighten the wheel nut until the wheel stud is firmly seated.
  5. Remove the wheel nut and flat washers.
  6. Install the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement (GNB)  or Front Wheel Bearing and Hub Replacement (GNA) .
