Steering Knuckle Replacement (GNA)

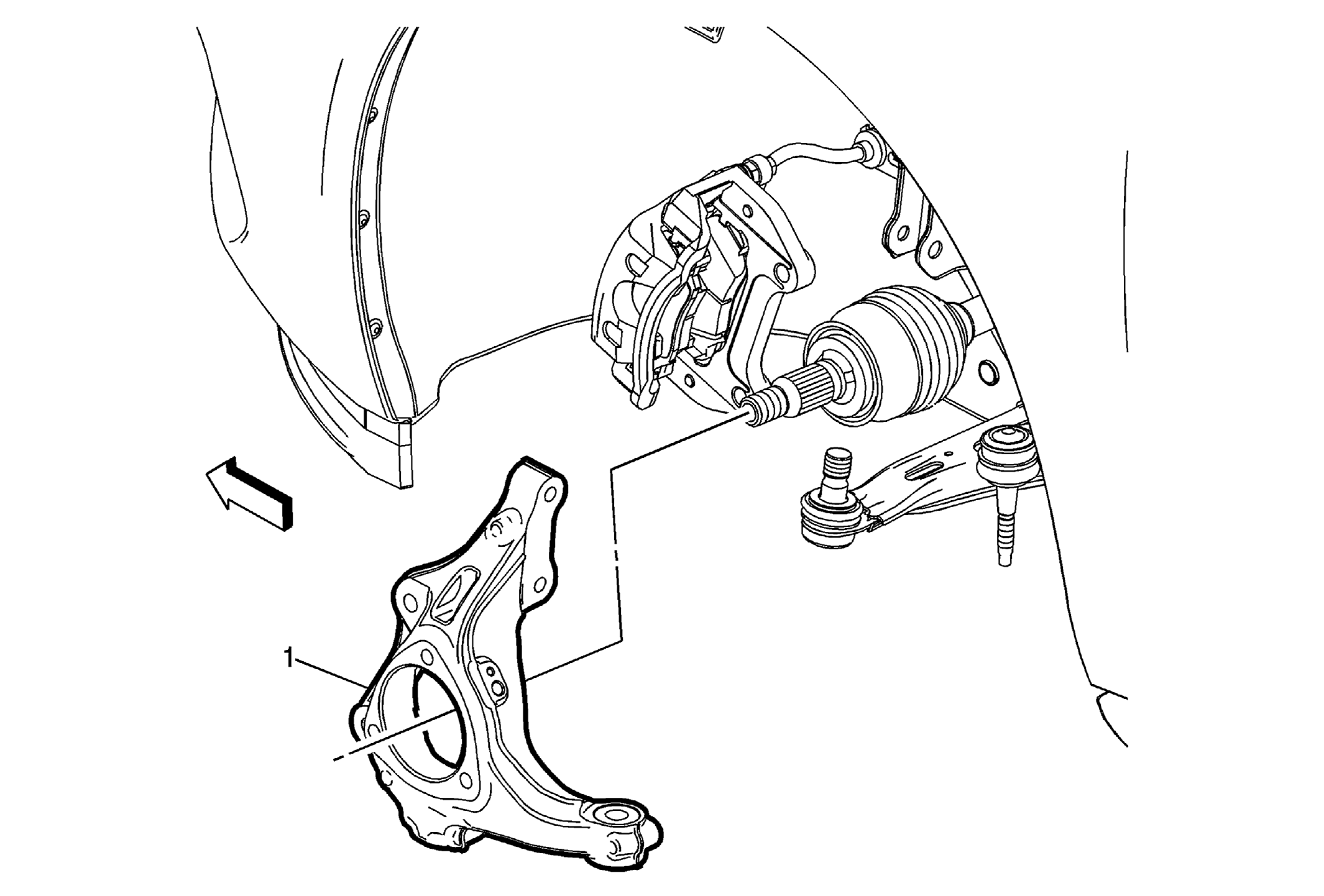

Fig 1: Steering Knuckle (GNA)
GM2911107Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement (GNA) .
1 Steering Knuckle
CAUTION:

Do not pry in such a way that the ball joint seal is contacted. Damage to the seal may result.

  1. Disconnect the steering linkage outer tie rod from the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement .
  2. Disconnect the strut assembly from the steering knuckle. Refer to Strut Assembly Removal and Installation (GNA) .
  3. Disconnect the lower control arm from the steering knuckle. Refer to Lower Control Arm Replacement (GNA) .
