Turn Signal Switch Bracket Replacement (With BTM)

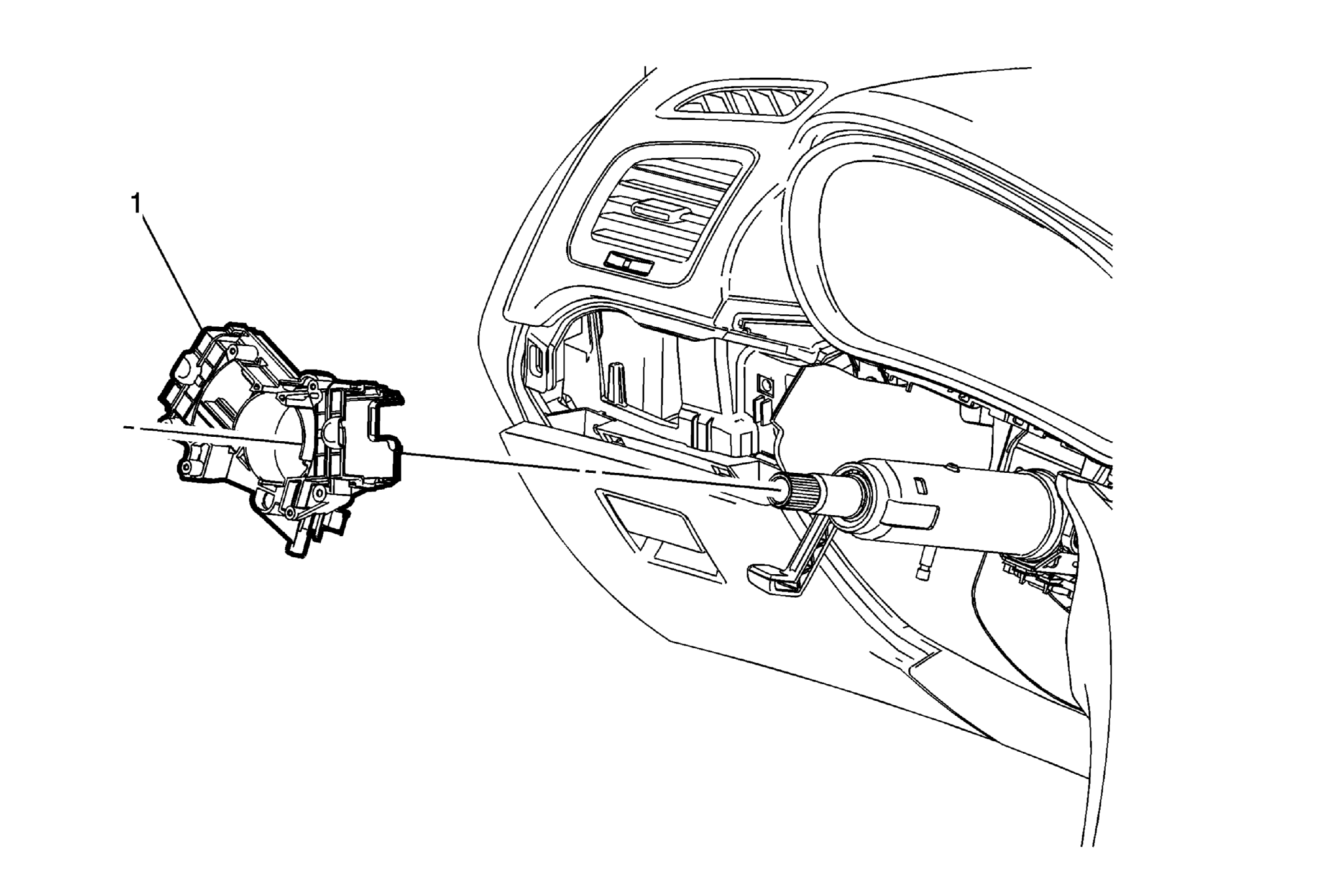

Fig 1: Turn Signal Switch Bracket (With BTM)
GM3420205Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Airbag Coil Replacement
  2. Turn Signal Switch Replacement
  3. Windshield Wiper and Washer Switch Replacement
1 Turn Signal Switch Bracket
Procedure
Release the retaining tabs and remove the turn signal switch bracket from the steering column.
