Steering Wheel Airbag Coil Replacement

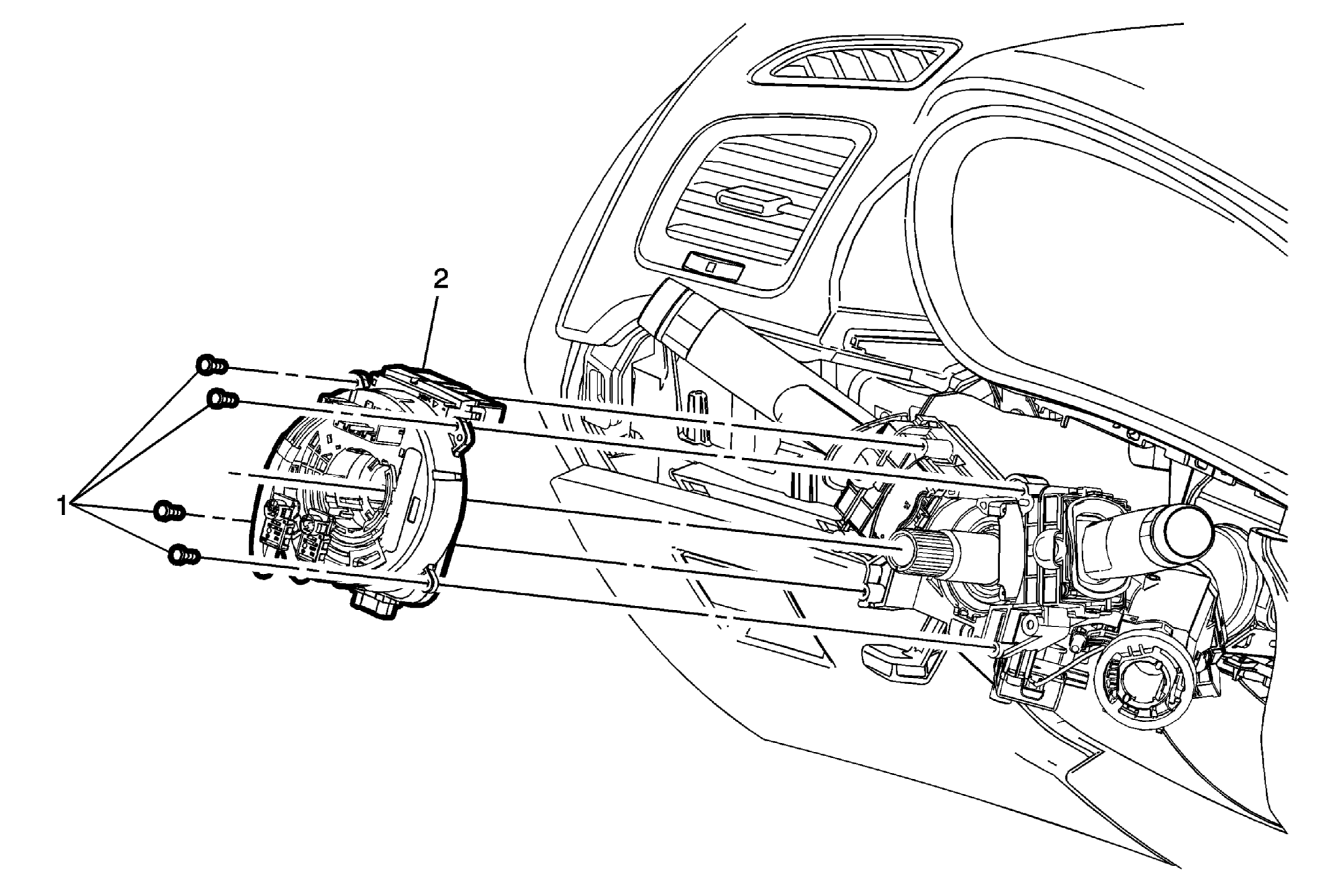

Fig 1: Steering Wheel Airbag Coil

GM3420204

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the steering wheel. Refer to Steering Wheel Replacement .
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .

1

Steering Wheel Airbag Coil Fastener (Qty:4)

CAUTION:

Refer to Fastener Caution .

Tighten
3 N.m (27 lb in)

2

Steering Wheel Airbag Coil

Procedure

Disconnect the electrical connectors.
Transfer the steering angle sensor. Refer to Steering Angle Sensor Replacement .
Ensure the coil is centered during installation. If installing a NEW coil, remove the centering tab AFTER the coil is on the steering column. Refer to Airbag Steering Wheel Module Coil Centering .
