Airbag Side Impact Sensor Replacement

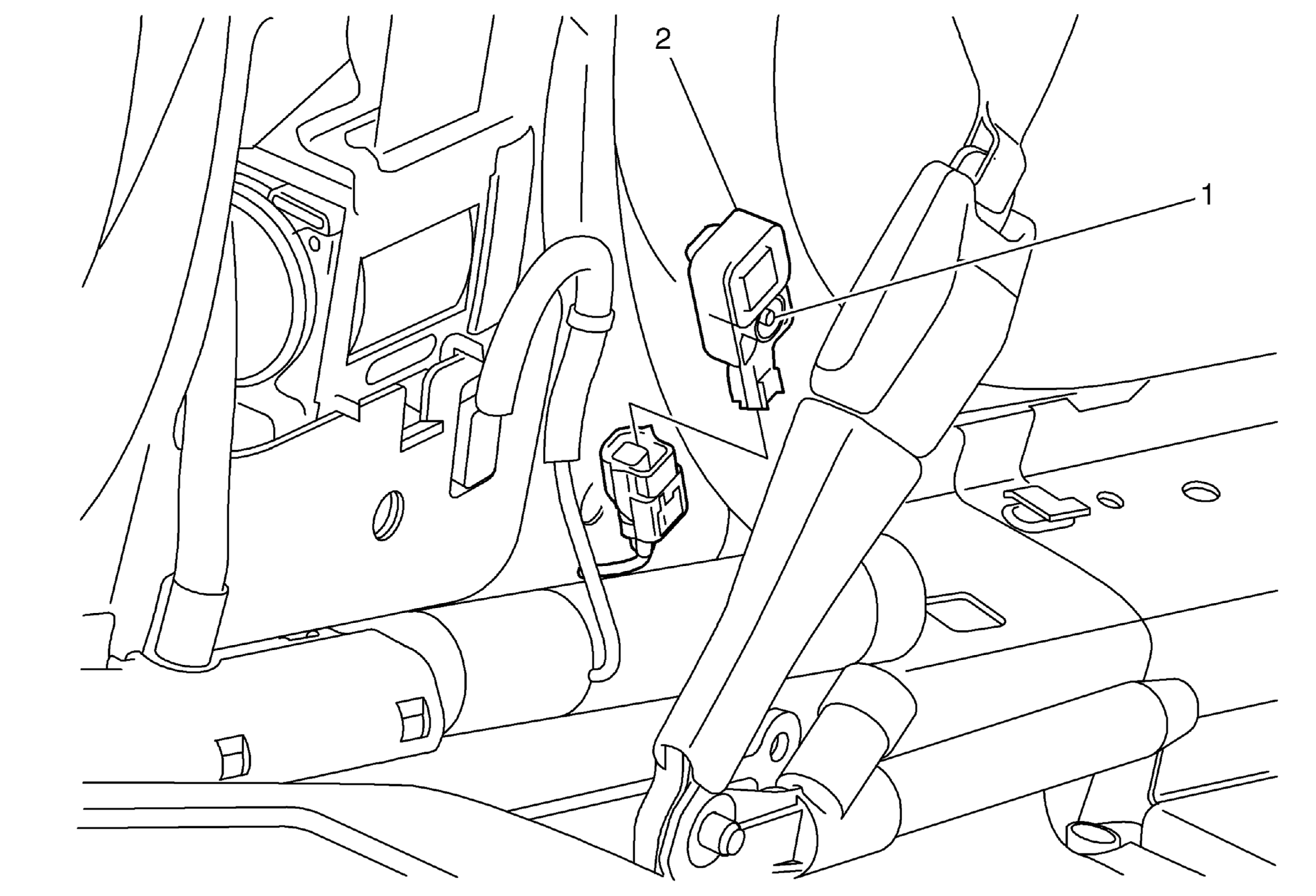

Fig 1: Inflatable Restraint Side Impact Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front and rear side door sill trim plate. Refer to Front and Rear Side Door Sill Trim Plate Replacement .
1	Inflatable Restraint Side Impact Sensor Fastener Procedure Loosen the fasteners and slide the sensor out of the keyhole slots. The bolts are integral to the sensor assembly, DO NOT remove separately. Disconnect the electrical connector.
2	Inflatable Restraint Side Impact Sensor Procedure Push the inflatable restraint side impact sensor upwards and pull it from the C-pillar.

Callout

Component Name

WARNING:

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front and rear side door sill trim plate. Refer to Front and Rear Side Door Sill Trim Plate Replacement .

Inflatable Restraint Side Impact Sensor Fastener

Procedure

Inflatable Restraint Side Impact Sensor
Procedure
Push the inflatable restraint side impact sensor upwards and pull it from the C-pillar.
